[Avail] Wood Flat Knob Regular Padouk ("Karin") H1 (1 piece)

[Avail] Wood Flat Knob Regular Padouk ("Karin") H1 (1 piece)

Our Selling Price: US$61.60 [Regular Price: US$88.00]

Quantity:
Contact Us

Wood Flat Knob Regular Padouk ("Karin") H1 (1 piece)


| Product Introduction

This is an Avail-manufactured wooden handle knob made of [Padouk ("Karin") wood] with a unique grain pattern.
The oil finish allows you to feel the distinctive texture of wood.
Despite being a wooden knob, it's precision-machined and doesn't require a core material, achieving a lightweight design of "approximately 2.4g".
Combined with knob caps, it enables a more sophisticated customization.
Avail handle knobs are designed to be customizable with 2 ball bearings (sold separately) for a smoother feel.

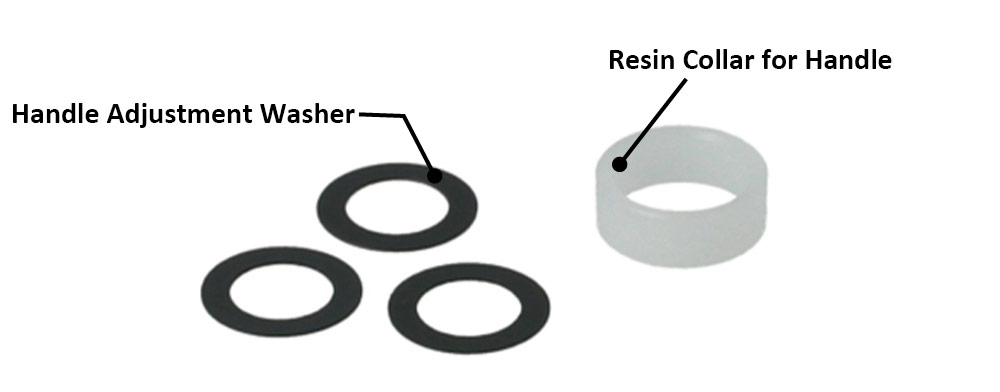

| Included Items



Handle Resin Collar
Quantity: 1 piece		 Use when replacing the "DAIWA S-size knob" installed on
Avail handles and DAIWA 1000 - 4000 class reels
with the Wood Flat Knob Regular.
Handle Adjustment Washer
Quantity: 3 pieces		 Use for adjusting looseness when replacing handle knobs.
Compatible Bearings Outer diameter 7mm × Inner diameter 4mm × Thickness 2.5mm, 2 pieces can be installed.
Bearings are sold separately. Not included in the set.

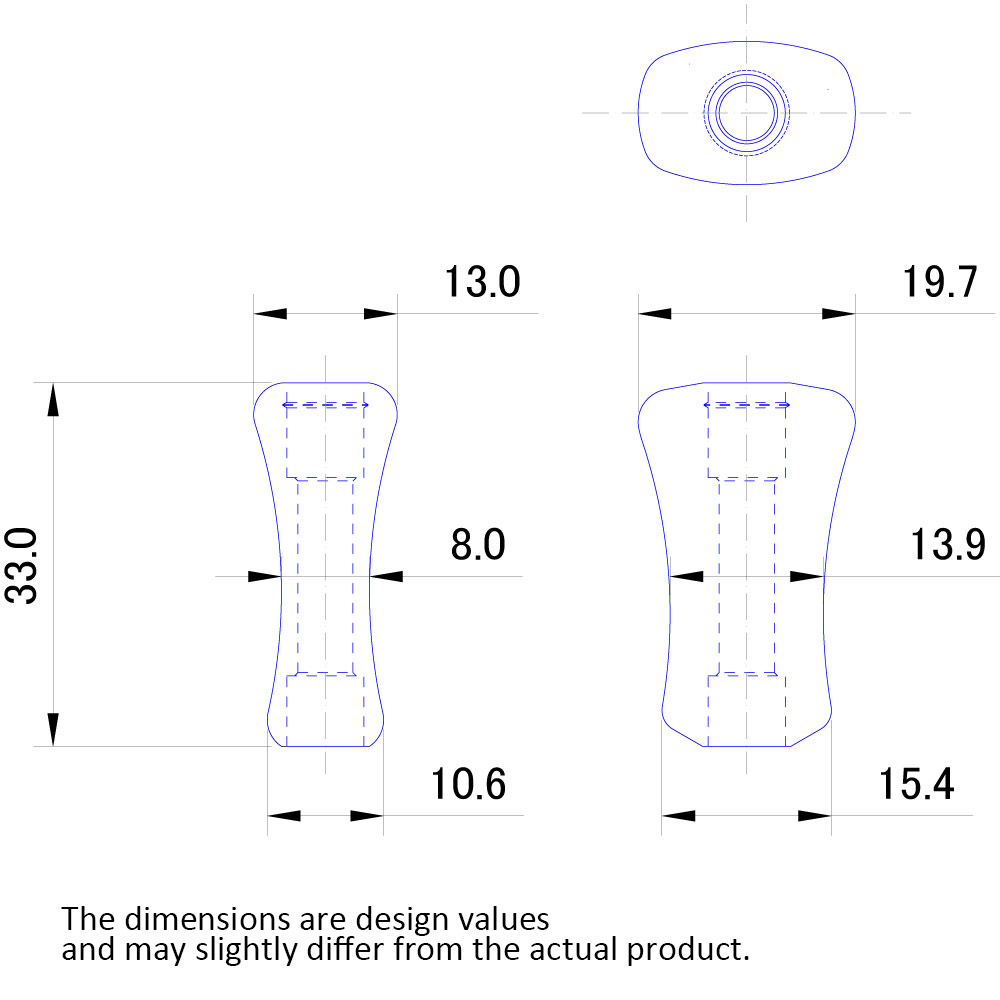

| Basic Specifications



Handle Knob Main Dimensions Weight
Padouk ("Karin") Top outer diameter: approx. 19.7mm
Bottom outer diameter: approx. 15.4mm
Total length: approx. 33mm		 Approx. 2.4g


* The weight of the wood knob series is approximate.
* Weight may vary depending on the density of the material.

Material Flat knob body: Padouk ("Karin") burl
Compatible Avail Handles
(for ABU, Isuzu, DAIWA)		 Offset Handle LT for ABU 75/80/85/90mm
Power Handle T4S for ABU 100/110mm
Tough Box Handle for Cardinal 3/4 series 45/50mm
Offset Handle STi2 for ABU 85/90/95/100/105mm
Compatible Avail Handles
(for SHIMANO)		 Offset Handle LT for SHIMANO 75/80/85/90mm
Offset Handle STi2.5 for SHIMANO 85/90mm
Offset Handle STi2 for SHIMANO 95/100/105mm
Spinning Handle 2 for SHIMANO 35/37.5/40/42.5/45mm


* Compatible with SHIMANO YUMEYA Handle Knob Type A.
* When replacing from a DAIWA S-size knob, please attach the included resin collar before installing this product.

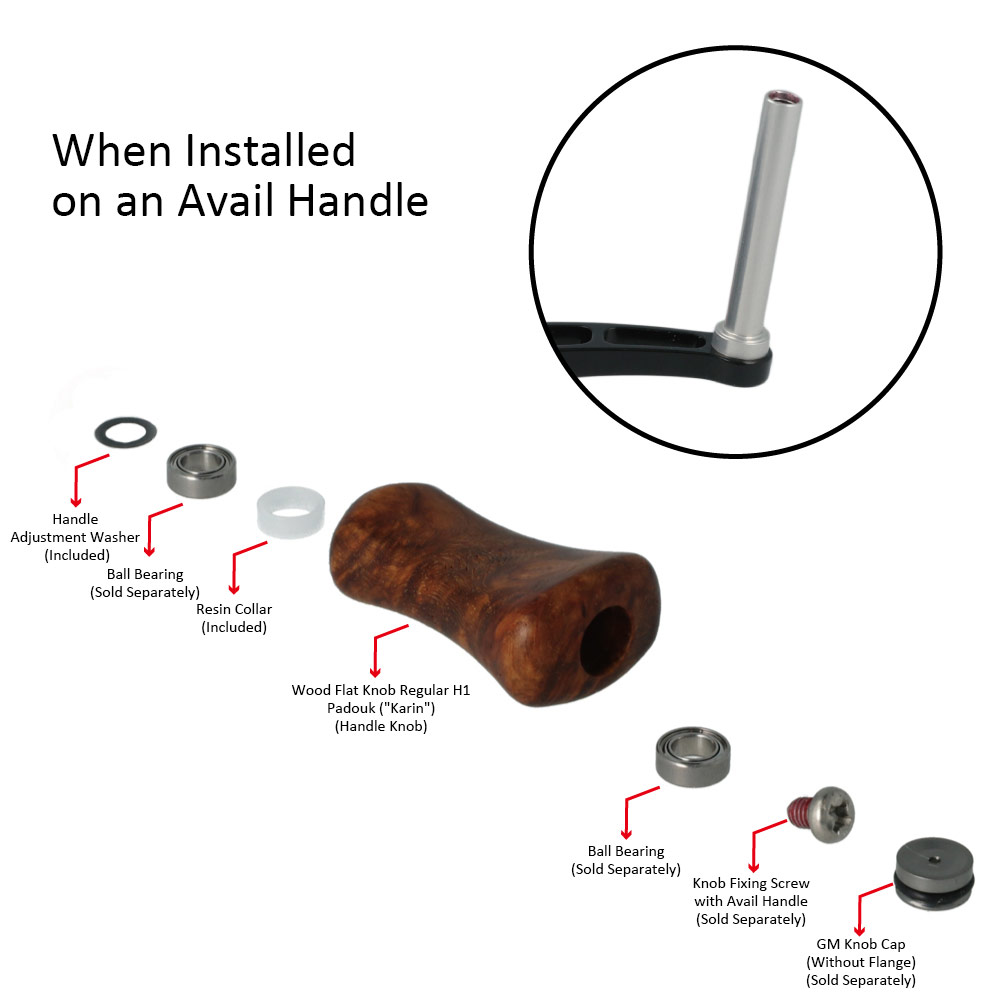

| Installation Examples



19 Vanquish C2000SSS (installed on original handle)




23 CALCUTTA CONQUEST BFS (installed on original handle)


| Installation Method


This product comes with 1 "resin collar" and 3 "handle adjustment washers".


| Precautions

The color may appear different from the actual product depending on your display environment (monitor, etc.).
Compatible only with handles that use 2 bearings per 1 knob.
Please disassemble your handle in advance to confirm compatibility.
Wood knobs are made using natural materials.
Please understand that there may be slight variations in appearance (grain), color, and weight.
As there is no core material, it may break if subjected to strong force.
This knob is impregnated with oil, so oil may appear on the surface.
If oil appears, please wipe it off.
Lack of oil can cause cracks and splits.
Please regularly apply oil for maintenance.
(Avail Maintenance Oil for Wood Knobs recommended)
The oil applied to the wood knobs is a plant-derived oil that is harmless to humans.



Maintenance Oil for Wood Knobs
Regular application to wood knobs helps prevent cracks and splits.
Applying too much oil to the inside of the wood knob (where the bearing fits) may make it difficult to attach or remove the bearing.
If you apply too much, wipe off excess oil with a cotton swab before it dries.


| Gallery














| Handle Knobs from Various Manufacturers Are Available!
You Can Find Handle Knobs Made of Various Materials by Category.
