[DAIWA] Genuine Spare Parts for 24 REVROS LT2000S Product code: 00066601 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 REVROS LT2000S Product code: 00066601 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$24.64 [Regular Price: US$1.10 - US$35.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/8248

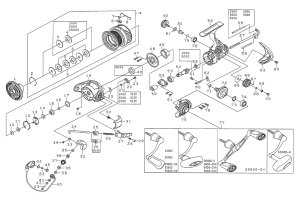

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q376801 12.10
2 DRAG RINGS 6Q346101 2.20
3 DRAG DISC W 6Q621901 2.20
4 DRAG W (1 piece) 6J678901 6.60
6 LINE STOPPER PLATE 6Q376701 2.20
7 LINE STOPPER 6Q345501 2.20
8 LINE STOPPER SPRING 6Q345701 2.20
9 SPOOL (2-9) 6Q975901 35.20
10 SPOOL W (A) 6E398003 1.10
11 SPOOL W (B) 6Q348502 1.10
12 CLICK REEF SP 6Q797701 2.20
13 CLICK HOLDER 6Q798201 2.20
14 CLICK HOLDER W 6Q344001 1.10
15 ROTOR NUT 6Q906401 4.40
16 ROTOR NUT COLLAR 6Q858101 3.30
17 ROTOR NUT W 63727602 1.10
18 ROTOR NUT SC 6H022701 2.20
19 ROTOR 6Q825304 13.20
20 KICK LEVER SP 6Q825401 2.20
21 KICK LEVER W 6M194601 1.10
22 KICK LEVER 6Q825501 2.20
23 KICK LEVER SC 6Q957301 2.20
24 ARM LEVER SHAFT 6Q810901 2.20
25 ARM LEVER SHAFT COLLAR 6Q808501 3.30
26 ARM LEVER SP 6Q873901 2.20
27 ARM LEVER SP HOLDER 6Q826001 2.20
28 ARM LEVER HOLDER SP 6Q812001 2.20
29 ARM LEVER HOLDER PIN 6Q808701 2.20
30 ARM LEVER SP COVER SC 6Q812201 2.20
31 ARM LEVER SP COVER 6Q826401 3.30
32 ARM LEVER 6Q826301 6.60
33 ARM LEVER COLLAR 6Q809101 2.20
34 ARM LEVER COLLAR RETAINER 6B339801 2.20
35 ROLLER COLLAR (A) 6Q810001 2.20
36 ROLLER COLLAR (B) 6Q809901 2.20
37 LINE ROLLER 6Q809803 7.70
38 ROLLER COLLAR (C) 6Q809901 2.20
39 ROLLER W 6Q810101 1.10
40 BAIL 6Q826501 24.20
41 ARM LEVER SC COLLAR 6Q809701 2.20
42 ARM LEVER SC・W 63731306 1.10
43 ARM LEVER SC 6M398901 2.20
44 BAIL HOLDER W(A) 6Q416203 1.10
45 BAIL HOLDER SC 6Q812301 2.20
47 SHIELD CAP SC 6G837101 2.20
48 SHIELD CAP 6Q139401 3.30
49 ONE-WAY CLUTCH *Cannot be ordered 6J388401 26.40
50 CLUTCH RING *Cannot be ordered 6J001403 6.60
51 PINION BEARING PLATE SC 6Q126201 2.20
52 PINION BEARING PLATE 6Q195601 2.20
53 PINION BALL BEARING 6G467302 8.80
54 PINION 6Q905701 6.60
55 PINION COLLAR 6Q419201 2.20
56 BODY 6Q824901 9.90
57 MAIN SHAFT *Cannot be ordered 6Q375301 8.80
59 OSCILLATING POST 6Q119104 2.20
60 STOPPER CAM 6Q118101 2.20
61 STOPPER CAM SP 6H697801 2.20
62 STOPPER LEVER 6Q118001 2.20
63 REAR CAP 6Q825201 5.50
64 REAR CAP SC 6G270801 2.20
65 OSCILLATING GEAR W 6H607902 1.10
66 OSCILLATING GEAR O-RING *Cannot be ordered 6Q375201 6.60
67 OSCILLATING GEAR O-RING 6H770601 1.10
68 OSCILLATING GEAR BEARING W 6H129201 1.10
69 OSCILLATING GEAR BALL BEARING 6G469005 8.80
70 OSCILLATING GEAR SC 6Q126101 2.20
71 DRIVE GEAR O-RING 6G670501 1.10
72 DRIVE GEAR 6Q375901 8.80
73 DRIVE W 63758504 1.10
74 DRIVE BALL BEARING (A) 6G467302 8.80
75 BODY COVER 6Q825101 11.00
76 BODY COVER SC 6G115001 2.20
77 HANDLE 6Q478601 22.00
78 DRIVE BALL BEARING (B) 6G522706 8.80
79 DRIVE BALL BEARING (B) RING 6G472401 2.20
80 HANDLE COLLAR 6F721001 2.20
81 HANDLE W 61608401 2.20
82 HANDLE SC 6Q132401 3.30
83 BAIL HOLDER W (B) 6F037404 1.10
