[SHIMANO] Genuine Spare Parts for 24 Force Master 2000 Product code: 044839 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 Force Master 2000 Product code: 044839 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$231.00 [Regular Price: US$1.10 - US$330.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

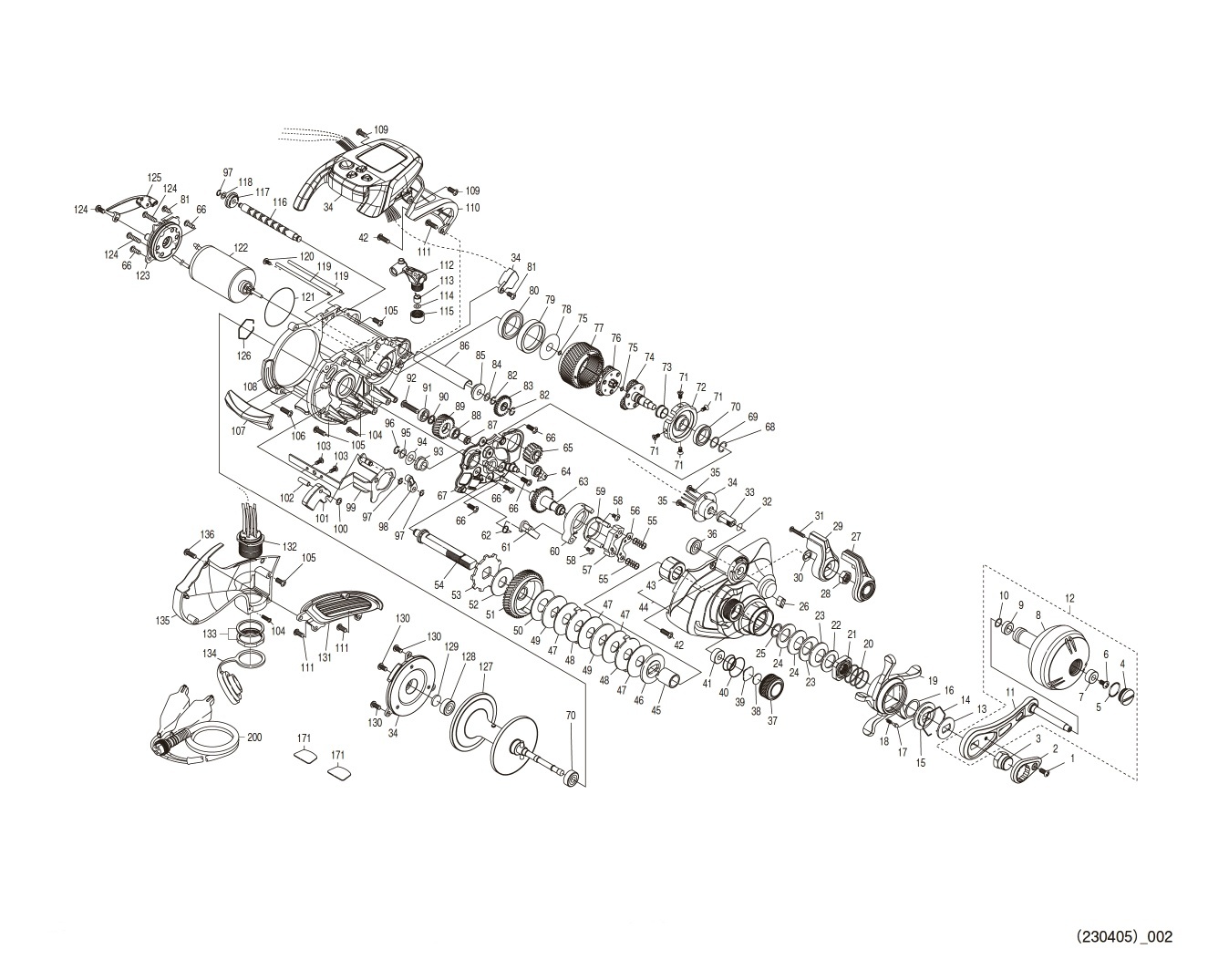

　Reel Part's Schematic Diagram



No. S Part No. Description Price (USD)
1 103GK FIXING BOLT 1.10
2 10QL6 RETAINER 3.85
3 10FT0 HANDLE FIXING NUT 6.05
4 1062R HANDLE CAP 1.10
5 10LAB O-RING 1.10
6 103E9 FIXING BOLT 1.10
7 10EU0 HANDLE GRIP BUSH (A) 1.65
8 13E8Y HANDLE KNOB ASSEMBLY 45.10
9 104UJ HANDLE GRIP BUSH (B) 1.65
10 104FH WASHER 2.20
11 1400D HANDLE SHAFT ASSEMBLY 56.10
12 1400E HANDLE ASSEMBLY 112.20
13 107QM HANDLE HOLDER WASHER 1.10
14 10KXX STAR DRAG CLICK PLATE EXTRACTION STOP 1.65
15 10J27 STAR DRAG CLICK PLATE 1.65
16 10G6M WASHER 1.10
17 10B27 CLICK PIN 1.65
18 10988 CLICK PIN 1.65
19 1400J STAR DRAG 45.10
20 10HZ2 STAR DRAG SPRING 1.65
21 10QY2 STAR DRAG FIXING NUT 4.95
22 10BR2 BEARING PUSH FLY 1.65
23 10EW3 DOWEL SPRING (DB8L) 1.65
24 1052E SALA SPRING (DB8H) 1.65
25 104L5 SPOOL SHAFT WASHER (A) 1.10
26 10RNS THREAD STOPPER 2.75
27 1062Z LEVER SWITCH NAMEPLATE 6.05
28 10NAN FIXING NUT 2.75
29 1400K LEVER SWITCH 7.70
30 10NAQ SMALL SIZE WASHER 1.65
31 10LSC FIXING BOLT 1.10
32 108W6 O-RING 1.65
33 10N78 LEVER INSERT SHAFT 3.85
34 1400C COUNTER UNIT ASSEMBLY 330.00
35 10MPW FIXING BOLT 1.10
36 10KA8 BALL BEARING (4X10X4) 13.75
37 1400L MECHANICAL BRAKE KNOB 16.50
38 1057Q SPOOL SHAFT CONTACT TALLY (B) 1.10
39 1085F MECHANICAL BRAKE WASHER 1.10
40 10BRE MECHANICAL BRAKE SPRING 1.65
41 13Y1N BUSH 1.10
42 10LSZ FIXING BOLT 1.10
43 1021D ROLLER CLUTCH 17.05
44 1400F BODY A ASSEMBLY 60.50
45 10BN3 ROLLER CLUTCH INNER TUBE 6.05
46 10762 STAR DRAG WASHER (C) 1.65
47 1064S STAR DRAG WASHER 6.05
48 10LBA STAR DRAG WASHER 1.65
49 10KZV STAR DRAG WASHER 1.65
50 10CKS STAR DRAG WASHER 6.05
51 13B7B DRIVE GEAR 17.05
52 13UML STAR DRAG WASHERS 4.95
53 13UKR STOPPER GEAR 2.75
54 13B78 DRIVE GEAR SHAFT 11.55
55 104BJ CLUTCH YOKE SPRING 1.10
56 13T6E CLUTCH YOKE PLATE 1.65
57 13SYZ CLUTCH YOKE 1.65
58 10MT0 FIXING BOLT 1.10
59 13UB4 CLUTCH CAM PUSH PLATE 2.75
60 13U4L CLUTCH CAM 1.65
61 1063K CLUTCH CLAW 6.05
62 10N1Z CLUTCH CLAW SPRING 1.10
63 13B6C PINION TRANSMISSION GEAR (B) 22.55
64 10MW2 STOPPER CLAW ASSEMBLY 3.85
65 13SKJ PINION GEAR 11.55
66 103GS FIXING BOLT 1.10
67 13H5X BODY A FIXING PLATE 34.10
68 105S3 C TOMEWA (NO. 5103-25) 1.10
69 13PK4 WASHER 1.10
70 10KX7 BALL BEARING (10X15X4) 13.75
71 10MGD FIXING BOLT 1.10
72 10PYS MOTOR HOLDER COVER LID 9.35
73 13SUU PLATE FOR REDUCTION GEAR (B) BEARING KE 3.85
74 13H0G REDUCTION GEAR PLATE (B) ASSEMBLY 22.55
75 13B0W WASHER 1.10
76 13H0F REDUCTION GEAR PLATE (A) ASSEMBLY 67.65
77 13SWS MOTOR HOLDER COVER 28.05
78 10GA9 BEARING WASHER 1.65
79 13SWH BEARING COLLAR 3.85
80 108PG BALL BEARING (15 X 21 X 4) 22.55
81 10QG5 FIXING BOLT 1.10
82 105NK E TYPE STOP RING 2.5 1.10
83 13SER WORM SHAFT GEAR 2.75
84 10E7Q WORM SHAFT GEAR WASHER 1.65
85 10NFK CROSS GEAR RECEIVER (A) 1.65
86 13S2G LEVEL WINDING PIPE 6.05
87 10QG6 PINION TRANSMISSION GEAR (A) COLLAR 2.75
88 104JY BALL BEARING (5X8X2.5) 13.75
89 13T6F PINION TRANSMISSION GEAR (A) 9.35
90 10QG7 PINION TRANSMISSION GEAR (A) COLLAR B 1.65
91 105BP BALL BEARING (5X9X3) 13.75
92 103UX FIXING BOLT 1.65
93 10BQ2 DRIVE GEAR SHAFT BUSH 1.65
94 10DN3 WASHER 6.05
95 1058E MAIN GEAR SHAFT WASHER (A) 1.10
96 105NE E-TYPE RETAINING RING 3 1.10
97 105NC E-TYPE RETAINING RING 2 1.10
98 13JL3 MAGNET HOLDER ASSEMBLY 11.55
99 13H39 CLUTCH PLATE 6.05
100 13B0X CLUTCH WASHER 1.10
101 13B59 CLUTCH LEVER (B) 6.05
102 10B0Q CLUTCH LEVER (B) SHAFT 1.65
103 103C0 FIXING BOLT 1.10
104 10LPT FIXING BOLT 1.10
105 10LT0 FIXING BOLT 1.10
106 10LST FIXING BOLT 1.10
107 13Y1R CLUTCH LEVER 7.15
108 1400G FRAME ASSEMBLY 56.10
109 103DC FIXING BOLT 1.10
110 1400M LEVEL WIND GUARD 20.35
111 10LSS FIXING BOLT 1.10
112 13XZQ LEVEL-WIND ASSEMBLY 16.50
113 10FFX CROSS GEAR PIN 2.75
114 10RR9 WASHER 2.75
115 10FJW LEVEL WINDING RECEIVER 1.65
116 13Y1M WORM SHAFT 6.60
117 104SZ CROSS GEAR UKE B 1.65
118 10G8K WASHER 1.10
119 13S3Z LEVEL WINDING ROD 2.75
120 10MT3 FIXING BOLT 1.10
121 13JZR MOTOR O-RING 2.75
122 1400B MOTOR ASSEMBLY 67.10
123 13GZX MOTOR HOLDER ASSEMBLY 45.10
124 10LSQ FIXING BOLT 1.10
125 1400N MOTOR HOLDER (B) 19.80
126 13RBP BEARING STOPPER 1.65
127 1400H SPOOL ASSEMBLY 55.00
128 10KAE BALL BEARING (4X11X4) 13.75
129 1057S SPOOL SHAFT CONTACT (B) 1.10
130 10PMK FIXING BOLT 1.10
131 1400P BODY B2 18.15
132 100XP CONNECTOR 22.55
133 10BGS SOCKET NUT SET 6.05
134 10T2G SOCKET CAP 3.85
135 1400Q BODY B 23.10
136 103KL FIXING BOLT 1.10
171 10CYP LEG ADJUSTMENT SHEET 1.65
200 10004 CABLE 45.10
LINE 10CW0 LINE THREADING 1.65
