[DAIWA] Genuine Spare Parts for 19 CATALINA 15H-SJ Product code: 00630051 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19 CATALINA 15H-SJ Product code: 00630051 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$140.14 [Regular Price: US$1.10 - US$200.20]

Prices vary according to options.

Part Number:
Quantity:

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

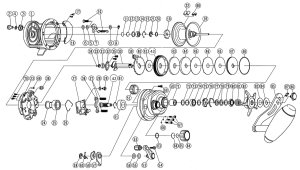

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 FRAME 6E748201 105.60
2 CLICK LEVER 6E725102 15.40
3 CLICK LEVER COLLAR 6E725301 2.20
4 CLICK LEVER PLATE 6E725201 2.20
5 CLICK W (A) 6E617403 1.10
6 CLICK W (B) 6E617401 1.10
7 LOCK PLATE 6E744501 3.30
8 LOCK PLATE W 63731603 1.10
9 LOCK PLATE RETAINER 63201402 2.20
10 LOCK PLATE SP 6E744701 2.20
11 LS BEARING W (A) 63757404 1.10
12 LS BEARING W (B) 6E710501 1.10
13 LS BEARING W (C) 6E703301 1.10
14 LS BALL BEARING 6G427701 15.40
15 LS BEARING RING 6E709501 2.20
16 RS COVER PLATE 6E699212 22.00
17 RS COVER PLATE SC 6E709701 2.20
18 SPOOL (18-21) 6Z024763 90.20
19 LOCK PLATE RATCHET 6E724401 4.40
20 LOCKING PLATE RATCHET W 63758501 1.10
21 LOCK PLATE RATCHET RETAINER 63207601 2.20
22 BRAKE COLLAR (WHITE) 6E744301 3.30
23 SET PLATE 6E748801 18.70
24 SET PLATE BEARING COLLAR 6E700701 3.30
25 SET PLATE BALL BEARING 6G156803 15.40
26 SET PLATE BEARING RING 6E751801 2.20
27 SLIDE PLATE 6E708101 15.40
28 SLIDE PLATE SC/W 6E709801 1.10
29 SLIDE PLATE SC 6E706801 6.60
30 GEAR SHAFT 6E723401 55.00
31 GEAR SHAFT BEARING 6E575301 2.20
32 GEAR SHAFT PLATE *Not available 6E700601 3.30
33 GEAR SHAFT BEARING RETAINER 63208002 2.20
34 GEAR SHAFT W 6E709901 1.10
35 GEAR SHAFT PLATE SC 6E751701 2.20
36 CLUTCH PLATE *Not available 6E701101 8.80
37 CLUTCH PLATE SP 6E708501 2.20
38 STOPPER PIN 6E704301 3.30
39 STOPPER 6E710001 8.80
40 RATCHET 6E708201 9.90
41 DRIVE GEAR W 6E714701 2.20
42 PINION + DRIVE GEAR SET 6Z023834 118.80
43 DRAG W (A) 6E749201 7.70
44 DRAG DISK W (A) 6E704901 7.70
45 DRAG W (B) 6E630402 2.20
46 DRAG GRIP W 6E701401 4.40
47 DRAG DISK W (B) 6E749301 8.80
48 DRAG DISK W (B) O-RING 6E725701 4.40
49 SET PLATE PIN 6E706501 3.30
50 RS PLATE 6E749507 115.50
51 ONE-WAY CLUTCH 6E633301 11.00
52 CLUTCH LEVER (A) 6E757601 36.30
53 CLUTCH LEVER (B) 6E757201 15.40
54 CLUTCH LEVER (B) SC 6E706001 2.20
55 CLUTCH LEVER W (A) 6E706901 1.10
56 CLUTCH LEVER W (B) 6E711101 1.10
57 CLUTCH CAM PLATE 6E700101 2.20
58 CLUTCH CAM 6E707501 8.80
59 CLUTCH CAM RETAINER 63207601 2.20
60 CLUTCH CAM SP 6E706401 2.20
61 PINION BEARING 6E749901 3.30
62 PINION BEARING RING 6E711201 2.20
63 MECHANICAL BRAKE O-RING 6E711301 1.10
64 MECHANICAL BRAKE KNOB 6E757402 24.20
65 MECHANICAL BRAKE W (A) 6B175503 1.10
66 MECHANICAL BRAKE W (B) 6E711501 1.10
67 RS PLATE SC (A) 6E705301 2.20
68 RS PLATE SC (A) O-RING 6E711601 1.10
69 RS PLATE SC (B) 6E706701 2.20
70 SET PLATE SC 6E705002 2.20
71 CLUTCH RING 6E610702 12.10
72 HANDLE BEARING W (A) 6E709101 1.10
73 GEAR SHAFT O-RING 6E729601 2.20
74 HANDLE BALL BEARING 6G523403 15.40
75 HANDLE BEARING W (B) 6E709103 1.10
76 DRAG HOLDER 6E709201 3.30
77 DRAG HOLDER LEAF SP 6E715601 2.20
78 DRAG SP・W 6E705601 2.20
79 STAR DRAG W 6G694201 2.20
80 DRAG NUT 6E705501 8.80
81 DRAG NUT SP 6E711701 2.20
82 STAR DRAG *Not available 6E721104 46.20
83 HANDLE W (A) 6E715101 1.10
84 HANDLE W (B) 6E711901 7.70
85 HANDLE W (A) 6E776201 200.20
86 HANDLE NUT 6E676702 15.40
87 HANDLE NUT SC 6E711801 2.20
88 BRAKE COLOR / RED (FUZOKU) 6B352701 2.20
201 HANDLE KNOB W 63753005 1.10
202 HANDLE KNOB COLOR 6F648301 4.40
203 HANDLE KNOB (A) / NIGIRI 6E776401 84.70
204 HANDLE KNOB SC 6E454003 2.20
205 HANDLE KNOB SHAFT 6E722503 24.20
206 HANDLE KNOB (A) O-RING 6E723301 2.20
207 HANDLE KNOB (B) / SIDE CAP 6E722602 24.20
208 HANDLE KNOB (B) O-RING 6E722901 2.20
301 SLIDE PLATE SP 6E705401 2.20
