[DAIWA] Genuine Spare Parts for 12 T3 AIR 6.8L-TW Product code: 00613423 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 12 T3 AIR 6.8L-TW Product code: 00613423 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$140.14 [Regular Price: US$1.10 - US$200.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

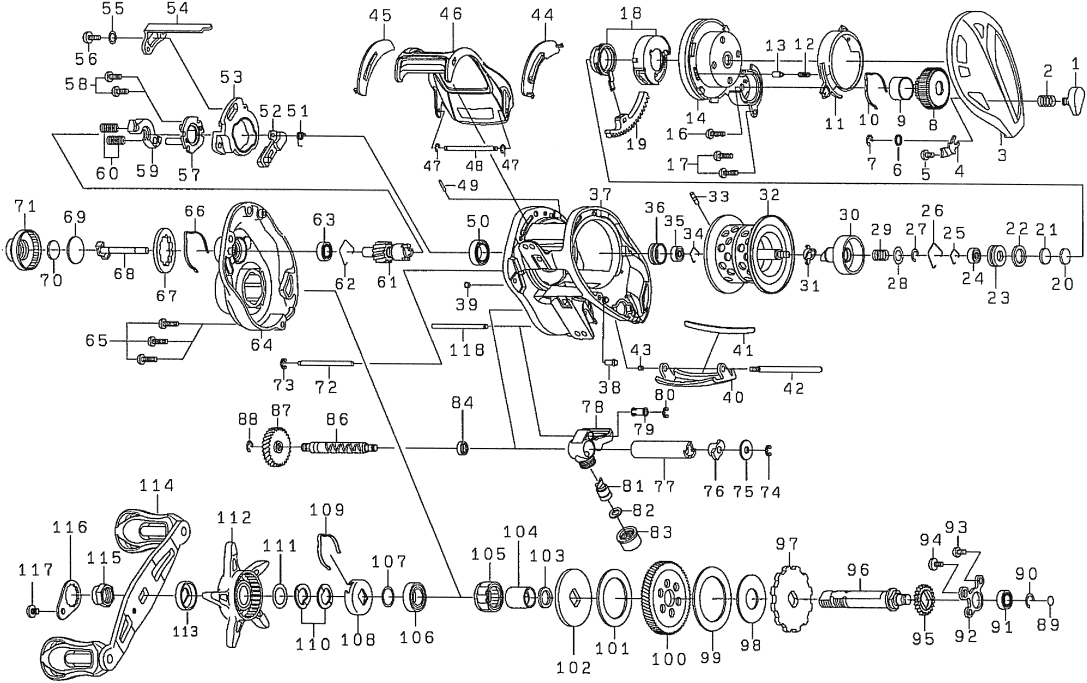

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 PUSH BUTTONS *Discontinued 6H671504 4.40
2 PUSH BUTTON SP *Discontinued 6H664001 2.20
3 RS PLATE *Discontinued 6H821801 44.00
4 PUSH BUTTON PLATE *Discontinued 6H671701 2.20
5 PUSH BUTTON PLATE SC 6H585401 2.20
6 PUSH BUTTON PLATE W 6F037402 1.10
7 PUSH BUTTON PLATE RITNER 6B864101 2.20
8 BRAKE DIAL 6H808004 9.90
9 BRAKE DIAL COLLAR *Discontinued 6H808601 3.30
10 BRAKE DIAL LEAF SP 6H663401 2.20
11 BRAKE DIAL LEVER *Discontinued 6H897603 11.00
12 BRAKE DIAL LEVER SP *Discontinued 6H775901 2.20
13 BRAKE DIAL LEVER PIN 6H285601 2.20
14 SET PLATE *Discontinued 6H821901 46.20
16 SET PLATE SC (A) 6H463401 2.20
17 SET PLATE SC (B) 6H666002 2.20
18 MAG HOLDER 6Z020867 46.20
19 MAG HOLDER (B) GEAR *Discontinued 6H808301 8.80
20 RS BEARING W (A) 63757404 1.10
21 RS BEARING W (B) 63757411 1.10
22 RS BEARING W (C) 6G185101 1.10
23 RS BEARING COLLAR 6H813601 4.40
24 RS BALL BEARING 6G281607 15.40
25 RS BEARING RING 6G639601 2.20
26 RS BEARING COLLAR RING *Discontinued 6H786801 2.20
27 SPOOL HOLDER SP RETAINER 63208002 2.20
28 SPOOL HOLDER SP-W 6G150301 1.10
29 SPOOL HOLDER SP 6H862301 2.20
30 SPOOL HOLDER 6H814201 20.90
31 SPOOL HOLDER COLLARS 6H814101 2.20
32 SPOOL (27-36) 6Z020887 200.20
33 SPOOL PIN 6H358801 2.20
34 SPOOL BEARING RING 6G639601 2.20
35 SPOOL BALL BEARING 6G281607 15.40
36 SPOOL BEARING COLLAR 6H819901 7.70
37 FRAME 6H670408 58.30
38 PUSH BUTTON PLATE PIN *Discontinued 6H791001 3.30
39 KICK LEVER SP COLLAR *Discontinued 6H658801 2.20
40 FRONT COVER *Discontinued 6H671804 15.40
41 NAME PLATE *Discontinued 6H832401 17.60
42 FRONT COVER SC *Discontinued 6H833101 7.70
43 FRONT COVER SC NUT *Discontinued 6H833001 3.30
44 CLUTCH LEVER PLATE (R) *Discontinued 6H659201 4.40
45 CLUTCH LEVER PLATE (L) *Discontinued 6H659301 4.40
46 CLUTCH LEVER *Discontinued 6H831201 36.30
47 CLUTCH LEVER SHAFT RETAINER 6H704101 2.20
48 CLUTCH LEVER SHAFT 6H659801 7.70
49 CLUTCH LEVER HOLD PIN 6H753001 2.20
50 CLUTCH CAM BALL BEARING 6G431004 8.80
51 KICK LEVER SP *Discontinued 6H670501 2.20
52 KICK LEVER *Discontinued 6H602301 9.90
53 CLUTCH CAM *Discontinued 6H688201 3.30
54 CLUTCH CAM PLATE (A) *Discontinued 6H670601 3.30
55 CLUTCH CAM PLATE (A) W 6H159201 1.10
56 CLUTCH CAM PLATE (A) SC 6G193701 2.20
57 CLUTCH CAM PLATE (B) 6H659101 3.30
58 CLUTCH CAM PLATE (B) SC 6H581001 2.20
59 CLUTCH PLATE *Discontinued 6H863801 7.70
60 CLUTCH SP 6H582001 2.20
61 PINION + DRIVE GEAR SET *Discontinued 6Z020920 75.90
62 LS BEARING RING 6E219701 2.20
63 LS BALL BEARING 6G466202 8.80
64 LS PLATE *Discontinued 6H670110 46.20
65 LS PLATE SC *Discontinued 6H662201 2.20
66 MECHANICAL BRAKE SP 6F262701 2.20
67 MECHANICAL BRAKE W(A) 6F625503 1.10
68 PINION SHAFT 6H159601 3.30
69 MECHANICAL BRAKE W (B) 6B175401 1.10
70 MECHANICAL BRAKE W (C) 6B175503 1.10
71 MECHANICAL BRAKE KNOB *Discontinued 6G774710 33.00
72 FRAME POST *Discontinued 6H811901 4.40
73 FRAME POST RITINER 6H704101 2.20
74 WORM SHAFT RITINER 63205901 2.20
75 WORM SHAFT W 63731306 1.10
76 WORM SHAFT BUSHING *Discontinued 6F795802 2.20
77 WORM SHIELD *Discontinued 6H688701 8.80
78 LEVEL WINDING 6H660201 42.90
79 OSCILLATING POST COLLAR 6H168701 2.20
80 OSCILLATING POST RETAINER 6B864101 2.20
81 POLE 6H660801 4.40
82 POLE W 63731303 1.10
83 POLE HOLDER NUT 6F402801 2.20
84 WORM SHAFT BALL BEARING 6G466202 8.80
86 WORM SHAFT *Discontinued 6H824201 17.60
87 WORM SHAFT GEAR *Discontinued 6H824301 4.40
88 WORM SHAFT GEAR RETAINER 6B339801 2.20
89 GEAR SHAFT W 6G099801 1.10
90 GEAR SHAFT RITINER 63208002 2.20
91 GEAR SHAFT BALL BEARING 6G538004 8.80
92 GEAR SHAFT PLATE *Discontinued 6H660101 2.20
93 GEAR SHAFT PLATE SC (A) 6G171402 2.20
94 GEAR SHAFT PLATE SC (B) 6G193701 2.20
95 WORM DRIVE GEAR *Discontinued 6H660001 8.80
96 GEAR SHAFT *Discontinued 6H811802 20.90
97 RATCHET W 6H660901 3.30
98 RATCHET W 6H661101 1.10
99 DRIVE GEAR W 6H661001 3.30
100 PINION + DRIVE GEAR SET *Discontinued 6Z020920 75.90
101 DRAG W 6H359001 8.80
102 DRAG DISK W 6H661401 3.30
103 CLUTCH RING W 6B553803 1.10
104 CLUTCH RING 6H584401 5.50
105 ONE-WAY CLUTCH 6G819801 20.90
106 HANDLE BALL BEARING 6G523401 8.80
107 HANDLE BEARING W 63737813 1.10
108 DRAG HOLDER 6F028203 3.30
109 DRAG LEAF SP 6F032401 2.20
110 DRAG SP・W 61508901 2.20
111 STAR DRAG W 6G694201 2.20
112 STAR DRAG 6H820002 33.00
113 HANDLE COLOR 6H661701 2.20
114 HANDLE *Discontinued 6H812601 163.90
115 HANDLE NUT 6G793310 4.40
116 HANDLE LOCK PLATE 60403212 3.30
117 HANDLE LOCK PLATE SC 63538301 2.20
118 OSCILLATING POST *Discontinued 6H660402 4.40
119 SPOOL HOLDER COLLAR W 6E096501 1.10
200 HANDLE KNOB W 6H744801 1.10
201 HANDLE KNOB 6H813101 33.00
202 HANDLE KNOB BALL BEARING 6G469002 8.80
203 HANDLE KNOB SC 6G752602 2.20
