[DAIWA] Genuine Spare Parts for 23 SS AIR TW 8.5R Product code: 00630262 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 23 SS AIR TW 8.5R Product code: 00630262 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$127.05 [Regular Price: US$1.10 - US$181.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

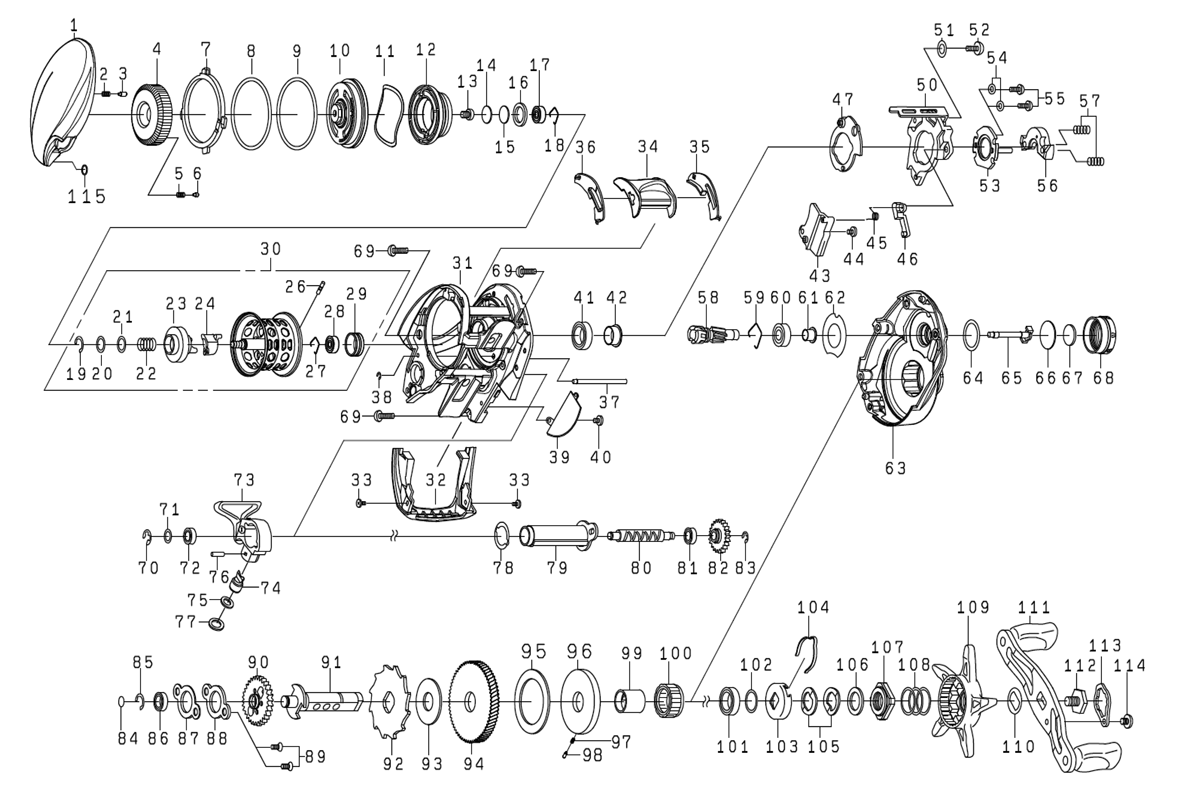

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6M333101 30.80
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 BRAKE DIAL 6M268003 7.70
5 DIAL SP 6M333301 2.20
6 DIAL PIN 6J731201 2.20
7 LEVER PLATE (A) 6M267701 3.30
8 LEVER PLATE (B) 6J742601 2.20
9 LEVER PLATE (C) 6J741703 2.20
10 SET PLATE *Cannot be ordered 6M333201 24.20
11 SET PLATE W 6M593301 1.10
12 MAG HOLDER *Cannot be ordered 6M646601 34.10
13 SET PLATE SC 6H666002 2.20
14 LS BEARING W (A) 6M333502 1.10
15 LS BEARING W (B) 6M333501 1.10
16 LS BEARING W (C) 6M333401 1.10
17 LS BALL BEARING 6G281602 15.40
18 LS BEARING RING 6G639601 2.20
19 SPOOL HOLDER SP RETAINER 63208002 2.20
20 SPOOL HOLDER SP・W(A) 6E096501 1.10
21 SPOOL HOLDER SP-W (B) 6M567801 1.10
22 SPOOL HOLDER SP 6M567701 2.20
23 SPOOL HOLDER *Not available 6M570101 19.80
24 SPOOL HOLDER COLLAR 6H814101 2.20
26 SPOOL PIN 6J252301 2.20
27 SPOOL BEARING RING 6G639601 2.20
28 SPOOL BALL BEARING 6G281602 15.40
29 SPOOL BEARING COLLAR 6H813601 4.40
30 SPOOL (19-29) *Cannot be ordered 6Z026778 181.50
31 FRAME 6M333001 78.10
32 FRONT COVER 6J740905 8.80
33 FRONT SC 6H531507 2.20
34 CLUTCH LEVER 6J739201 9.90
35 CLUTCH LEVER PLATE (R) 6J738401 2.20
36 CLUTCH LEVER PLATE (L) *Not available 6J738501 2.20
37 OSCILLATING POST 6J741001 2.20
38 OSCILLATING POST RETAINER 6H704101 2.20
39 RS COVER PLATE 6J738601 2.20
40 RS COVER PLATE SC 6H531507 2.20
41 CLUTCH CAM BALL BEARING 6G431008 15.40
42 CLUTCH CAM BEARING COLLAR 6M518401 7.70
43 KICK LEVER PLATE (A) 6J739101 3.30
44 KICK LEVER PLATE (A) SC 6H531507 2.20
45 KICK LEVER PLATE SP 6M042601 2.20
46 KICK LEVER 6J622901 6.60
47 CLUTCH CAM PLATE 6J739001 2.20
50 CLUTCH CAM 6J738701 9.90
51 CLUTCH CAM PLATE W 6H450701 1.10
52 CLUTCH CAM PLATE SC 6B360405 2.20
53 KICK LEVER PLATE (B) 6H659103 3.30
54 KICK LEVER PLATE (B) W 6G913306 1.10
55 KICK LEVER PLATE (B) SC 6B032905 3.30
56 CLUTCH PLATE 6H929001 3.30
57 CLUTCH SP 6J313901 2.20
58 PINION + DRIVE GEAR SET 6Z025904 56.10
59 PINION RING 6H448402 2.20
60 PINION BALL BEARING 6G538003 15.40
61 PINION BEARING COLLAR 6J724601 9.90
62 CLUTCH SP PLATE 6J285901 2.20
63 RS PLATE *Not available 6M332901 94.60
64 ZERO ADJUSTER O-RING 6J279701 1.10
65 PINION SHAFT 6G931001 3.30
66 ZERO ADJUSTER W (A) 6H161001 1.10
67 ZERO ADJUSTER W (B) 6B175503 1.10
68 ZERO ADJUSTER 6J738101 8.80
69 RS PLATE SC 6G945806 2.20
70 WORM SHAFT RETAINER 63205901 2.20
71 WORM SHAFT W 6B411702 1.10
72 WORM SHAFT COLLAR 6H850402 2.20
73 LEVEL WINDING *Not available 6M358001 46.20
74 POLE 6J740101 3.30
75 POLE W 6M161301 1.10
76 LEVEL WINDING PIN 6J740201 3.30
77 LEVEL WINDING O-RING 6G252202 1.10
78 WORM SHIELD PLATE 6J281601 2.20
79 WORM SHIELD 6J740001 3.30
80 WORM SHAFT 6M042401 8.80
81 WORM SHAFT COLLAR 6H850402 2.20
82 WORM SHAFT GEAR 6J281401 4.40
83 WORM SHAFT GEAR RETAINER 6B339801 2.20
84 GEAR SHAFT W 6G099801 1.10
85 GEAR SHAFT RETAINER 63208002 2.20
86 GEAR SHAFT BALL BEARING 6G466202 8.80
87 GEAR SHAFT PLATE (A) 6J281201 2.20
88 GEAR SHAFT PLATE (B) 6J281101 3.30
89 GEAR SHAFT PLATE SC 6G297006 2.20
90 WORM GEAR 6J281001 7.70
91 GEAR SHAFT 6J739401 27.50
92 RATCHET 6H660901 3.30
93 DRIVE GEAR W 63746605 1.10
94 PINION + DRIVE GEAR SET 6Z025904 56.10
95 DRAG W 6H359001 8.80
96 DRIVE COLLAR 6J740501 17.60
97 DRIVE COLLAR SP 6J410801 2.20
98 DRIVE COLLAR PIN 6J566201 2.20
99 DRAG COLLAR 6G011401 8.80
100 ONE-WAY CLUTCH 6J540401 20.90
101 HANDLE BALL BEARING 6G431004 8.80
102 HANDLE BEARING W 6B553801 1.10
103 DRAG HOLDER 6F028203 3.30
104 DRAG HOLDER LEAF SP 6F032401 2.20
105 DRAG SP・W 61508901 2.20
106 STAR DRAG W 6H929501 2.20
107 DRAG NUT 6J141001 7.70
108 DRAG NUT SP 6J011901 2.20
109 STAR DRAG 6J140005 27.50
110 HANDLE W 6F576601 1.10
111 STAR DRAG W HANDLE 6M341801 94.60
112 HANDLE SC 6J295501 9.90
113 HANDLE LOCK PLATE 6J319202 3.30
114 HANDLE LOCK PLATE SC 6G835502 3.30
115 LS PLATE O-RING 6J197901 1.10
300 HANDLE KNOB SP/W 6H744801 1.10
301 HANDLE KNOB W 6B411703 1.10
302 HANDLE KNOB BALL BEARING 6G469007 15.40
303 HANDLE KNOB 6J315504 24.20
304 HANDLE KNOB COLLAR 6G720001 2.20
305 HANDLE KNOB SC 6B679308 2.20
306 HANDLE KNOB CAP 6J315801 6.60
307 FLAME HOGO SEAT 6J374301 2.20
