[DAIWA] Genuine Spare Parts for 14 TATULA HD CUSTOM 150 series JAPAN MODEL 150SHL-TW Product code: 00613493 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 14 TATULA HD CUSTOM 150 series JAPAN MODEL 150SHL-TW Product code: 00613493 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$67.76 [Regular Price: US$1.10 - US$96.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

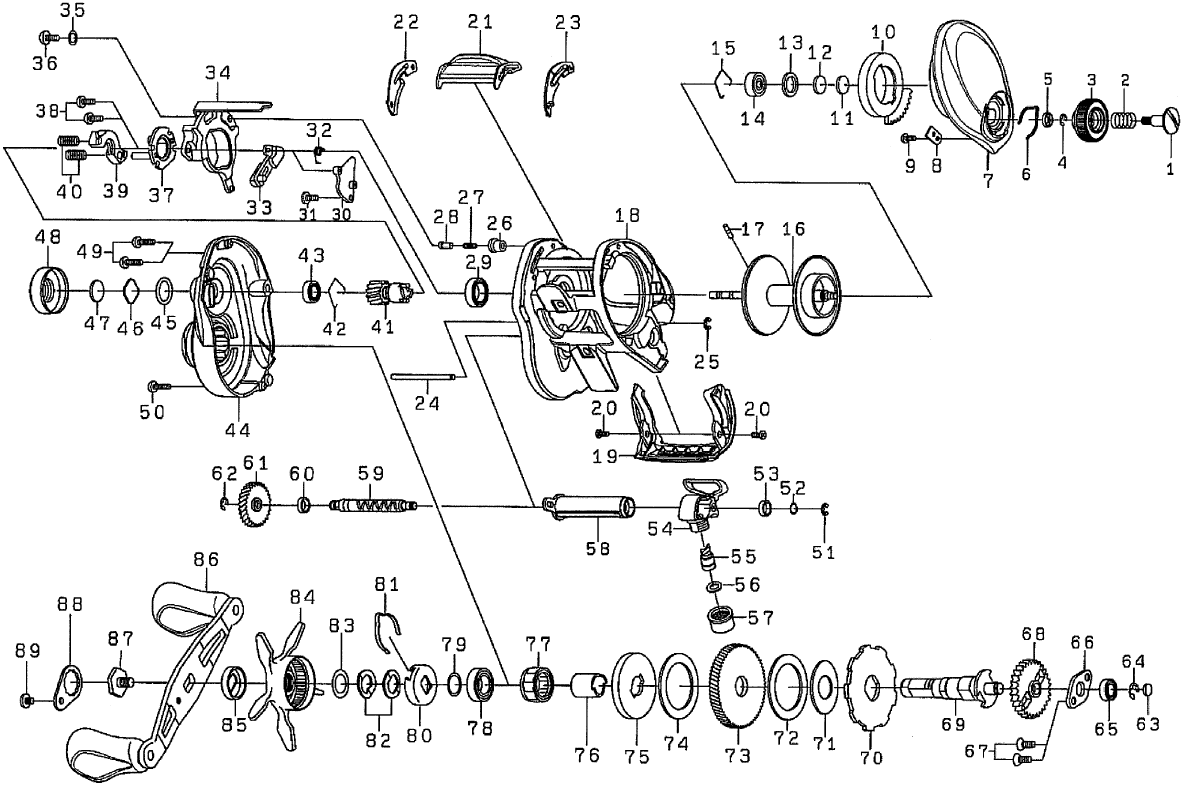

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6H930210 8.80
4 BRAKE DIAL RETINER (A) 6B339801 2.20
5 BRAKE DIAL COLLAR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6H663401 2.20
7 RS PLATE 6H944913 20.90
8 BRAKE DIAL RITINER (B) 6H915501 2.20
9 BRAKE DIAL RITINER (B) SC 6G939301 2.20
10 MAG HOLDER 6H930502 8.80
11 RS BEARING W (A) 63757406 1.10
12 RS BEARING W (B) 63757411 1.10
13 RS BEARING W (C) 6G185101 1.10
14 RS BALL BEARING 6G511507 15.40
15 RS BEARING RING 6F032201 2.20
16 SPOOL (16-17) *Discontinued 6J107202 96.80
17 SPOOL PIN 6J028001 2.20
18 FRAME *Discontinued 6H943909 24.20
19 FRONT COVER 6H930002 7.70
20 FRONT COVER SC 6H455407 2.20
21 CLUTCH LEVER 6H912401 3.30
22 CLUTCH LEVER PLATE (L) 6H915701 2.20
23 CLUTCH LEVER PLATE (R) 6H915601 2.20
24 OSCILLATING POST 6H912101 2.20
25 OSCILLATING POST RETAINER 6H704101 2.20
26 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
27 CLUTCH CAM PLATE PIN SP 6H928801 2.20
28 CLUTCH CAM PLATE PIN 6J055201 2.20
29 CLUTCH CAM BALL BEARING 6B861704 8.80
30 CLUTCH LEVER PLATE (A) 6H944301 2.20
31 CLUTCH LEVER PLATE (A) SC 6H294101 2.20
32 CLUTCH CLEVER PLATE SP 6H473301 2.20
33 CLUTCH CAM PLATE (A) 6H473401 9.90
34 CLUTCH CAM PLATE 6H944001 4.40
35 CLUTCH CAM PLATE SC-W 6H159201 1.10
36 CLUTCH CAM PLATE SC 63522501 2.20
37 CLUTCH LEVER PLATE (B) 6H659101 3.30
38 CLUTCH LEVER PLATE (B) SC 6B032904 2.20
39 CLUTCH PLATE 6H944401 3.30
40 CLUTCH SP 6J055301 2.20
41 PINION + DRIVE GEAR SET 6Z021881 50.60
42 PINION RING 6E219701 2.20
43 PINION BALL BEARING 6G431105 15.40
44 LS PLATE *Discontinued 6H943815 20.90
45 MECHANICAL BRAKE O-RING 61715201 1.10
46 MECHANICAL BRAKE W (A) 6B175406 1.10
47 MECHANICAL BRAKE W (B) 6B175503 1.10
48 MECHANICAL BRAKE KNOB 6J107002 24.20
49 LS PLATE SC (A) 6G040814 2.20
50 LS PLATE SC (B) 6G040825 2.20
51 WATER SHAFT RETAINER 63205901 2.20
52 WORMSHAFT W 6B411703 1.10
53 WARM SHAFT COLOR 6G720001 2.20
54 LEVEL WINDING 6J176602 50.60
55 POLE 61214212 3.30
56 POLE W 63731303 1.10
57 POLE HOLDER NUT 6F402801 2.20
58 WORM SHIELD 6H944601 3.30
59 WORM SHAFT 6H911702 8.80
60 WORM SHAFT COLLAR 6G720001 2.20
61 WORM SHAFT GEAR 6H910501 3.30
62 WORMSHAFT GEAR RETAINER 6B339801 2.20
63 GEAR SHAFT W 6G099801 1.10
64 GEAR SHAFT RETAINER 63208002 2.20
65 GEAR SHAFT BALL BEARING 6B358605 8.80
66 GEAR SHAFT PLATE 6H928901 3.30
67 GEAR SHAFT PLATE SC 6E134509 2.20
68 WORM GEAR 6H912701 4.40
69 GEAR - SHAFT 6J107102 15.40
70 RATCHET 6H929401 3.30
71 DRIVE GEAR - W (A) 6H661101 1.10
72 DRIVE GEAR - W (B) 6H661001 3.30
73 PINION + DRIVE GEAR SET 6Z021881 50.60
74 DRAG W 6H452602 6.60
75 DRAG DISK W 6H913201 3.30
76 DRAG COLLAR 6J377801 8.80
77 ONE-WAY CLUTCH 6G819801 20.90
78 HANDLE BALL BEARING 6B861704 8.80
79 HANDLE BEARING W 6B553801 1.10
80 DRAG HOLDER 6F028203 3.30
81 DRAG HOLDER LEAF SP 6F032401 2.20
82 DRAG SP・W 61508901 2.20
83 STA-DRAG W 6H929501 2.20
84 STA-DRAG 6H238613 27.50
85 HANDLE COLOR 6F850401 3.30
86 HANDLE NUT 6J108601 93.50
87 HANDLE NUT 6G779101 6.60
88 HANDLE LOCK PLATE *Not available 60403206 3.30
89 HANDLE LOCK PLATE SC 63538301 2.20
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB 6H929803 11.00
203 HANDLE KNOB BALL BEARING 6G469005 8.80
204 HANDLE KNOB COLLAR 6G720001 2.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6G935805 2.20
