[DAIWA] Genuine Spare Parts for 14 TATULA 103 series 103XH-TW Product code: 00613484 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 14 TATULA 103 series 103XH-TW Product code: 00613484 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$67.76 [Regular Price: US$1.10 - US$96.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

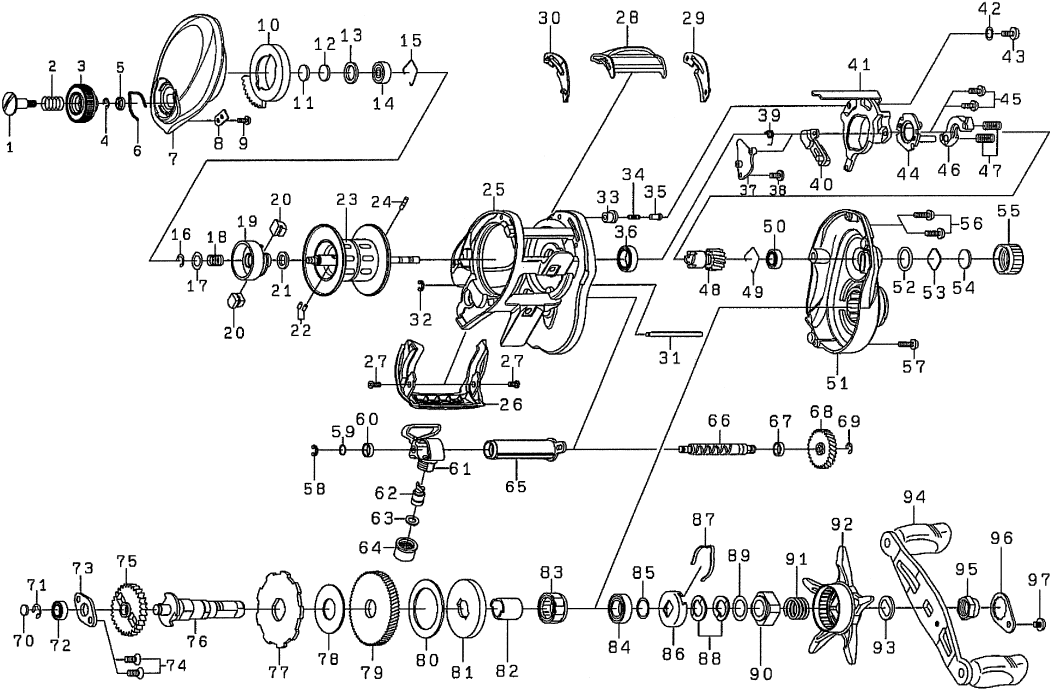

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6H930212 8.80
4 BRAKE DIAL RETINER (A) 6B339801 2.20
5 BRAKE DIAL COLLAR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6H663401 2.20
7 LS PLATE *Not available 6H930113 20.90
8 BRAKE DIAL RITINER (B) 6H915501 2.20
9 BRAKE DIAL RITINER (B) SC 6G939301 2.20
10 MAG HOLDER 6H930502 8.80
11 LS BEARING W (A) 63757406 1.10
12 LS BEARING W (B) 63757411 1.10
13 LS BEARING W (C) 6G185101 1.10
14 LS BALL BEARING 6G511507 15.40
15 LS BEARING RING 6F032201 2.20
16 SPOOL HOLDER SP RETAINER 63208202 2.20
17 SPOOL HOLDER SP-W 6G150301 1.10
18 SPOOL HOLDER SP 6H801701 2.20
19 SPOOL HOLDER 6H930701 9.90
20 SPOOL HOLDER COLLAR 6H169001 2.20
21 SPOOL HOLDER W 6F574303 1.10
22 SPOOL HOLDER PIN 6H665301 2.20
23 SPOOL (16-24) 6Z021672 96.80
24 SPOOL PIN 6J028001 2.20
25 FRAME *Discontinued 6H910204 24.20
26 FRONT COVER 6H930002 7.70
27 FRONT COVER SC 6H455407 2.20
28 CLUTCH LEVER 6H912401 3.30
29 CLUTCH LEVER PLATE (R) 6H915601 2.20
30 CLUTCH LEVER PLATE (L) 6H915701 2.20
31 OSCILLATING POST 6H912101 2.20
32 OSCILLATING POST RETAINER 6H704101 2.20
33 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
34 CLUTCH CAM PLATE PIN SP 6H928801 2.20
35 CLUTCH CAM PLATE PIN 6J055201 2.20
36 CLUTCH CAM BALL BEARING 6B861704 8.80
37 CLUTCH LEVER PLATE (A) 6H912301 2.20
38 CLUTCH LEVER PLATE (A) SC 6H294101 2.20
39 CLUTCH CLEVER PLATE SP 6H450001 2.20
40 CLUTCH CAM PLATE (A) 6H450101 9.90
41 CLUTCH CAM PLATE 6H928701 4.40
42 CLUTCH CAM PLATE SC-W 6H159201 1.10
43 CLUTCH CAM PLATE SC 63522501 2.20
44 CLUTCH LEVER PLATE (B) 6H659101 3.30
45 CLUTCH LEVER PLATE (B) SC 6B032904 2.20
46 CLUTCH PLATE 6H929001 3.30
47 CLUTCH SP 6J055301 2.20
48 PINION + DRIVE GEAR SET 6Z021544 50.60
49 PINION RING 6E219701 2.20
50 PINION BALL BEARING 6G431105 15.40
51 RS PLATE *Discontinued 6H910311 20.90
52 MECHANICAL BRAKE O-RING 61715201 1.10
53 MECHANICAL BRAKE W (A) 6B175406 1.10
54 MECHANICAL BRAKE W (B) 6B175503 1.10
55 MECHANICAL BRAKE KNOB *Discontinued 6J038603 11.00
56 RS PLATE SC (A) 6G040814 2.20
57 RS PLATE SC (B) 6G040825 2.20
58 WATER SHAFT RETAINER 63205901 2.20
59 WORMSHAFT W 6B411703 1.10
60 WORM SHAFT COLOR 6G720001 2.20
61 LEVEL WINDING 6J176602 50.60
62 POLE 61214212 3.30
63 POLE W 63731303 1.10
64 POLE HOLDER NUT 6F402801 2.20
65 WORM SHIELD 6H910801 3.30
66 WORM SHAFT 6H911701 8.80
67 WORM SHAFT COLLAR 6G720001 2.20
68 WORM SHAFT GEAR 6H910501 3.30
69 WORMSHAFT GEAR RETAINER 6B339801 2.20
70 GEAR SHAFT W 6G099801 1.10
71 GEAR SHAFT RETAINER 63208002 2.20
72 GEAR SHAFT BALL BEARING 6B358605 8.80
73 GEAR SHAFT PLATE 6H928901 3.30
74 GEAR SHAFT PLATE SC 6E134509 2.20
75 WORM GEAR 6H912701 4.40
76 GEAR - SHAFT 6H911601 15.40
77 RATCHET 6H929401 3.30
78 DRIVE GEAR - W 6J085101 1.10
79 PINION + DRIVE GEAR SET 6Z021544 50.60
80 DRAG W 6H452602 6.60
81 DRAG DISK W 6H913201 3.30
82 DRAG COLLAR 6J377801 8.80
83 ONE-WAY CLUTCH 6G819801 20.90
84 HANDLE BALL BEARING 6B861704 8.80
85 HANDLE BEARING W 6B553801 1.10
86 DRAG HOLDER 6F028203 3.30
87 DRAG HOLDER LEAF SP 6F032401 2.20
88 DRAG SP・W 61508901 2.20
89 STAR DRAG W 6H929501 2.20
90 DRAG NUT 6H912001 4.40
91 DRAG NUT SP 6J011901 2.20
92 STA-DRAG 6H911901 11.00
93 HANDLE W 6F576601 1.10
94 HANDLE (80MM) 6J038701 93.50
95 HANDLE NUT 6G793312 4.40
96 HANDLE LOCK PLATE *Discontinued 60403217 4.40
97 HANDLE LOCK PLATE SC 63538301 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB 6F976401 11.00
202 HANDLE KNOB BALL BEARING 6G469005 8.80
203 HANDLE KNOB COLLAR (4 7 2.5) 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6F578803 2.20
