[DAIWA] Genuine Spare Parts for 21 TATULA TW 400HL Product code: 00630110 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 21 TATULA TW 400HL Product code: 00630110 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$83.16 [Regular Price: US$1.10 - US$118.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

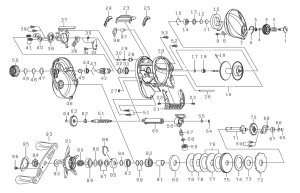

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6J935802 11.00
4 BRAKE DIAL RETAINER (A) 6B339801 2.20
5 BRAKE DIAL COLLAR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6J935901 2.20
7 RS PLATE 6J990901 20.90
8 BRAKE DIAL RETAINER (B) 6J946901 2.20
9 BRAKE DIAL RETAINER (B) SC 6G939301 2.20
10 MAG HOLDER 6J974501 8.80
11 RS BEARING W (A) 63757404 1.10
12 RS BEARING W (B) 63757411 1.10
13 RS BEARING W (C) 6G185101 1.10
14 RS BALL BEARING 6G511501 15.40
15 RS BEARING RING 6F032201 2.20
16 SPOOL (16-19) 6M184701 118.80
17 SPOOL SHAFT W 6M183901 1.10
18 SPOOL PIN 6G717501 2.20
19 SPOOL BALL BEARING 6G498513 15.40
20 FRAME 6M061702 42.90
21 FRONT COVER 6M049901 7.70
22 FRONT COVER SC 6H531511 2.20
23 CLUTCH LEVER 6M049501 9.90
24 CLUTCH LEVER PLATE (L) 6J932601 2.20
25 CLUTCH LEVER PLATE (R) 6J932501 2.20
26 OSCILLATING POST 6M050001 2.20
27 OSCILLATING POST RETAINER 6H704101 2.20
28 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
29 CLUTCH CAM PLATE PIN SP 6H928801 2.20
30 CLUTCH CAM PLATE PIN 6J055201 2.20
31 CLUTCH CAM BALL BEARING 6G156805 8.80
32 CLUTCH CAM BEARING COLLAR 6J946501 7.70
33 KICK LEVER PLATE (A) 6J990201 2.20
34 KICK LEVER PLATE (A) SC 6H294101 2.20
35 KICK LEVER PLATE (SP) 6H473301 2.20
36 KICK LEVER 6J990301 6.60
37 CLUTCH CAM PLATE 6M061901 4.40
38 KICK LEVER PLATE (B) 6J932901 4.40
39 KICK LEVER PLATE (B) SC 6B032904 2.20
40 CLUTCH PLATE 6M106001 3.30
41 CLUTCH SP 6J977701 2.20
42 PINION + DRIVE GEAR SET 6Z026229 56.10
43 PINION RING 6H160801 2.20
44 PINION BALL BEARING 6G467102 8.80
45 PINION BEARING COLLAR *Cannot be ordered 6J953001 7.70
46 LS PLATE 6M157204 20.90
47 MECHANICAL BRAKE O-RING 6B055201 1.10
48 MECHANICAL BRAKE W (A) 6J692001 1.10
49 MECHANICAL BRAKE W (B) 6B175503 1.10
50 MECHANICAL BRAKE KNOB 6J932301 27.50
51 LS PLATE SC (A) 6G040830 2.20
52 LS PLATE SC (B) 6G945819 2.20
53 LS PLATE SC (C) 6G040832 2.20
54 WORM SHAFT RETAINER 63205901 2.20
55 WORM SHAFT W 6B411703 1.10
56 LEVEL WINDING 6J973801 50.60
57 POLE 61214212 3.30
58 POLE W 63731303 1.10
59 POLE HOLDER NUT 6F402801 2.20
60 WORM SHIELD 6M062101 3.30
61 WORM SHAFT 6M049701 8.80
62 WORM SHAFT COLLAR 6G720001 2.20
63 WORM SHAFT GEAR 6J934201 3.30
64 WORMSHAFT GEAR RETAINER 6B339801 2.20
65 GEAR SHAFT W 6G099801 1.10
66 GEAR SHAFT RETAINER 63208002 2.20
67 GEAR SHAFT COLLAR 6J933401 2.20
68 GEAR SHAFT PLATE 6M040001 3.30
69 GEAR SHAFT PLATE SC 6G803505 2.20
70 WORM GEAR 6J933501 4.40
71 GEAR SHAFTS 6J933302 15.40
72 RATCHET W 6J934401 3.30
73 RATCHET W 6H661101 1.10
74 DRIVE GEAR W 6H359001 8.80
75 PINION + DRIVE GEAR SET 6Z026229 56.10
76 DRAG W (A) 6J934701 8.80
77 DRAG GRIP W 6J934801 2.20
78 DRAG DISK W (A) 6J934901 2.20
79 DRAG W (B) 6J974301 8.80
80 DRAG DISK W (B) 6J935001 2.20
81 DRAG COLLAR 6J377801 8.80
82 ONE-WAY CLUTCH 6G819801 20.90
83 HANDLE BALL BEARING 6G431004 8.80
84 HANDLE BEARING W (A) 6B553801 1.10
85 DRAG HOLDER 6E709201 3.30
86 DRAG HOLDER LEAF SP 6E715601 2.20
87 DRAG SP・W 61508901 2.20
88 STAR DRAG W 6H929501 2.20
89 DRAG NUT 6J935102 4.40
90 DRAG NUT SP 6J011901 2.20
91 STAR DRAG 6J975001 27.50
92 HANDLE W 6J101302 1.10
93 HANDLE 6J974801 100.10
94 HANDLE NUT 6J090312 4.40
95 HANDLE LOCK PLATE 6H283605 4.40
96 HANDLE LOCK PLATE SC 6H257003 2.20
97 STOPPER PIN 6J946701 2.20
98 STOPPER 6H270401 8.80
99 HANDLE BEARING W (B) 6B553802 1.10
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB 6J988301 15.40
202 HANDLE KNOB COLLAR 6G720001 2.20
203 HANDLE KNOB BALL BEARING 6G469005 8.80
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J992201 2.20
