[DAIWA] Genuine Spare Parts for 22 TATULA TW 80L Product code: 00630112 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 22 TATULA TW 80L Product code: 00630112 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$67.76 [Regular Price: US$1.10 - US$96.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

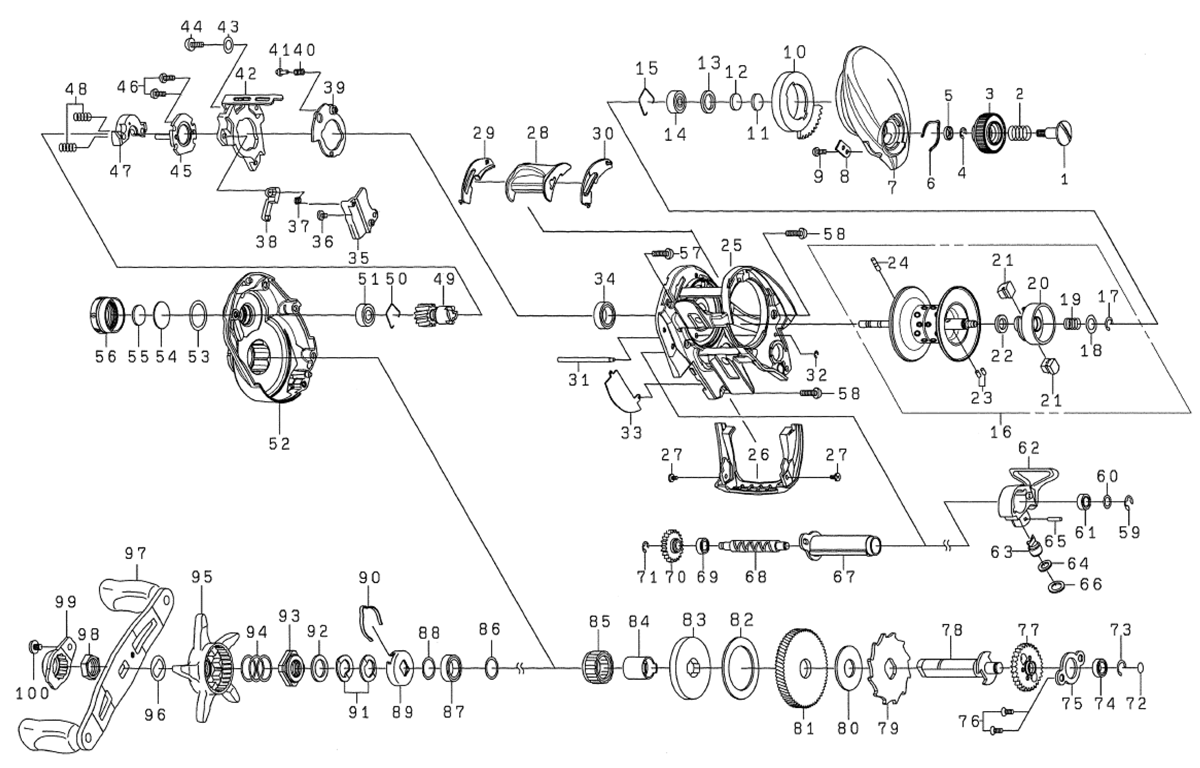

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6M160701 8.80
4 BRAKE DIAL RETAINER (A) 6B339801 2.20
5 BRAKE DIAL COLLAR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6H663401 2.20
7 LS PLATE 6M161401 20.90
8 BRAKE DIAL RETAINER (B) 6J843301 2.20
9 BRAKE DIAL RETAINER (B) SC 6G939301 2.20
10 MAG HOLDER *Not available 6M162401 8.80
11 LS BEARING W (A) 63757404 1.10
12 LS BEARING W (B) 63757411 1.10
13 LS BEARING W (C) 6G185101 1.10
14 LS BALL BEARING 6G511503 8.80
15 LS BEARING RING 6F032201 2.20
16 SPOOL (17-24) 6Z026126 96.80
17 SPOOL HOLDER SP RETAINER 63208202 2.20
18 SPOOL HOLDER SP-W 6J497001 1.10
19 SPOOL HOLDER SP 6H801701 2.20
20 SPOOL HOLDER 6H930701 9.90
21 SPOOL HOLDER COLLAR 6H454901 2.20
22 SPOOL HOLDER W 6F574303 1.10
23 SPOOL HOLDER PIN 6H665301 2.20
24 SPOOL PIN 6J339401 2.20
25 FRAME 6M212301 34.10
26 FRONT COVER 6J956604 7.70
27 FRONT COVER SC 6H531508 2.20
28 CLUTCH LEVER 6M162301 3.30
29 CLUTCH LEVER PLATE (R) 6J955501 2.20
30 CLUTCH LEVER PLATE (L) 6J955601 2.20
31 OSCILLATING POST 6M134001 2.20
32 OSCILLATING POST RETAINER 6H704101 2.20
33 RS COVER PLATE 6J972901 2.20
34 CLUTCH CAM BALL BEARING 6B861705 8.80
35 KICK LEVER PLATE (A) 6J739101 3.30
36 KICK LEVER PLATE (A) SC 6H531508 2.20
37 KICK LEVER PLATE SP 6J915201 2.20
38 KICK LEVER 6J622901 6.60
39 CLUTCH CAM PLATE 6J739001 2.20
40 CLUTCH CAM PLATE SP 6H928801 2.20
41 CLUTCH CAM PLATE PIN 6J055201 2.20
42 CLUTCH CAM 6J972601 9.90
43 CLUTCH CAM PLATE SC・W 6M070001 1.10
44 CLUTCH CAM PLATE SC 6B360406 2.20
45 KICK LEVER PLATE (B) 6H659101 3.30
46 KICK LEVER PLATE (B) SC 6B032904 2.20
47 CLUTCH PLATE 6H929001 3.30
48 CLUTCH SP 6J313901 2.20
49 PINION + DRIVE GEAR SET 6Z026123 50.60
50 PINION RING 6H448401 2.20
51 PINION BALL BEARING 6G431102 8.80
52 RS PLATE 6M161601 20.90
53 MECHANICAL BRAKE O-RING 6J279701 1.10
54 MECHANICAL BRAKE W (A) 6J692001 1.10
55 MECHANICAL BRAKE W (B) 6B175503 1.10
56 ZERO ADJUSTER 6J738101 8.80
57 RS PLATE SC (A) 6G040814 2.20
58 RS PLATE SC (B) 6G945818 2.20
59 WORM SHAFT RETAINER 63205901 2.20
60 WORM SHAFT W 6B411702 1.10
61 WORM SHAFT COLLAR 6G720001 2.20
62 LEVEL WINDING 6M148601 46.20
63 POLE 6J740101 3.30
64 POLE W 6M161301 1.10
65 LEVEL WINDING PIN 6J740201 3.30
66 LEVEL WINDING O-RING 6G252202 1.10
67 WORM SHIELD 6J740001 3.30
68 WORM SHAFT 6J912601 7.70
69 WORM SHAFT COLLAR 6G720001 2.20
70 WORM SHAFT GEAR 6J693901 3.30
71 WORM SHAFT GEAR RETAINER 6B339801 2.20
72 GEAR SHAFT W 6G099801 1.10
73 GEAR SHAFT RETAINER 63208002 2.20
74 GEAR SHAFT BALL BEARING 6G466202 8.80
75 GEAR SHAFT PLATE 6J693701 3.30
76 GEAR SHAFT PLATE SC 6G297002 2.20
77 WORM GEARS 6J693601 4.40
78 GEAR SHAFTS 6J956201 17.60
79 RATCHET 6H660901 3.30
80 RATCHET W 63746605 1.10
81 PINION + DRIVE GEAR SET 6Z026123 50.60
82 DRAG W 6H359002 6.60
83 DRIVE COLLAR 6J694401 3.30
84 DRAG COLLAR 6J377801 8.80
85 ONE-WAY CLUTCH 6J540401 20.90
86 HANDLE BEARING W (A) 6B553804 1.10
87 HANDLE BALL BEARING 6B861705 8.80
88 HANDLE BEARING W (B) 6B553801 1.10
89 DRAG HOLDER 6F028203 3.30
90 DRAG HOLDER LEAF SP 6F032401 2.20
91 DRAG SP・W 61508901 2.20
92 STAR DRAG W 6H929501 2.20
93 DRAG NUT 6J141001 7.70
94 DRAG NUT SP 6J011901 2.20
95 STAR DRAG 6J140001 20.90
96 HANDLE W 6F576601 1.10
97 HANDLE W 6M272801 93.50
98 HANDLE NUT 6H723701 3.30
99 HANDLE CAP 6J213503 7.70
100 HANDLE CAP SC 6G040803 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB BALL BEARING 6G469005 8.80
202 HANDLE KNOB COLLAR (4 7 2.5) 6G720001 2.20
203 HANDLE KNOB 6Q344801 17.60
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6Q345003 2.20
