[DAIWA] Genuine Spare Parts for 23 LEXA LT2500-XH Product code: 00061143 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 23 LEXA LT2500-XH Product code: 00061143 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$66.99 [Regular Price: US$1.10 - US$95.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.11 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/6344

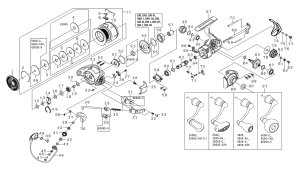

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6J697601 12.10
2 DRAG RING 6J547101 2.20
3 DRAG DISC W (A) 6J547001 2.20
4 DRAG W (3 piece) 6M542401 19.80
5 DRAG LIP W 6J546902 2.20
6 DRAG DISK W (B) 6J547001 2.20
8 LINE STOPPER PLATE 6J558101 2.20
9 LINE STOPPER 6J558001 2.20
10 LINE STOPPER SP 6J314801 2.20
11 SPOOL (2-10) 6M399001 95.70
12 SPOOL W (A) 6E398003 1.10
13 SPOOL W (B) 6E467101 1.10
14 CLICK HOLDER 6M021401 2.20
15 CLICKLEAF SP 6H416101 2.20
16 CLICK HOLDER W 6J703101 1.10
17 ROTOR NUT PACKING 6H986901 3.30
18 ROTOR NUT 6M181301 6.60
19 ROTOR NUT COLLAR 6M402701 4.40
20 ROTOR NUT W 63727602 1.10
22 ROTOR NUT SC 6H022701 2.20
23 ROTOR 6M396701 28.60
24 KICK LEVER SP 6M194502 2.20
26 KICK LEVER 6M396801 4.40
27 KICK LEVER SC 6H022702 2.20
28 ARM LEVER SHAFT 6M518601 2.20
29 ARM LEVER SHAFT COLLAR 6M397001 3.30
30 ARM LEVER SP 6M108801 2.20
31 ARM LEVER SP HOLDER 6M397101 2.20
32 ARM LEVER HOLDER SP 6M195301 2.20
33 ARM LEVER HOLDER PIN 6M397201 2.20
34 ARM LEVER SP COVER SC 6M355602 2.20
35 ARM LEVER SP COVER 6M397701 3.30
36 ARM LEVER 6M397301 11.00
37 ARM LEVER COLLAR 6M397601 2.20
38 ARM LEVER RETAINER 6B339801 2.20
39 ROLLER COLLAR (A) 6M398701 2.20
40 ROLLER COLLAR (B) 6M398601 2.20
41 LINE ROLLER 6M398501 7.70
42 ROLLER COLLAR (C) 6M398601 2.20
43 ROLLER W 6M398801 1.10
44 BAIL 6M397801 24.20
45 ROLLER SC COLLAR 6M398401 2.20
46 ROLLER SC-W 63731306 1.10
47 ROLLER SC 6M398901 2.20
48 BALE HOLDER SC/W 6M398201 1.10
49 BALE HOLDER SC 6M398301 2.20
50 SHIELD CAP SC 6J001601 2.20
51 MAG SHIELD PLATE *Cannot be ordered 6J688201 23.10
52 MAG SHIELD PLATE O-RING 6J354801 1.10
54 MAG SHIELD CAP *Cannot be ordered 6J560901 4.40
55 MAG SHIELD CAP W 6J639902 1.10
56 ONE WAY CLUTCH *Cannot be ordered 6J388401 26.40
57 CLUTCH RING *Cannot be ordered 6J001403 6.60
58 PINION BEARING PLATE SC 6J000901 2.20
59 PINION BEARING PLATE 6H442201 2.20
60 PINION BALL BEARING (A) 6G467302 8.80
61 PINION BEARING (A) W 63758502 1.10
62 PINION + DRIVE GEAR SET *Cannot be ordered 6Z026978 46.20
63 PINION BEARING (B)W 6H931701 1.10
64 PINION BALL BEARING (B) 6H959601 8.80
65 BAIL KICK COLLAR 6J022601 2.20
66 BAIL KICK COLLAR SC 6G940402 2.20
67 BODY *Cannot be ordered 6M395901 41.80
68 MAIN SHAFT *Cannot be ordered 6M400801 15.40
69 OSCILLATING POST (A) 6J084801 2.20
70 OSCILLATING POST (B) 6H614301 2.20
71 STOPPER CAM 6H595501 3.30
72 STOPPER LEVER 6H595401 2.20
73 STOPPER CAM SP 6H697801 2.20
74 REAR CAP 6M399201 5.50
75 REAR CAP W (A) 6F037404 1.10
76 REAR CAP W (B) 6B411703 1.10
77 REAR CAP SC 6M532001 2.20
78 OSCILLATING GEAR W 6H595701 1.10
79 OSCILLATING GEAR O-RING 6H595801 6.60
80 OSCILLATING GEAR O-RING 6H770601 1.10
81 OSCILLATING GEAR BEARING W 6H129201 1.10
82 OSCILLATING GEAR BALL BEARING 6G469005 8.80
83 OSCILLATING GEAR SC 6G940402 2.20
84 DRIVE GEAR O-RING 6G670501 1.10
86 DRIVE W 63758504 1.10
87 DRIVE BALL BEARING (A) 6G467302 8.80
88 BODY COVER 6M396301 30.80
89 BODY COVER SC 6M532101 2.20
90 HANDLE PACKING 6J130201 2.20
91 HANDLE 6M059801 72.60
92 DRIVE BALL BEARING (B) 6G522706 8.80
93 DRIVE BEARING (B) RING 6G472401 2.20
94 HANDLE CAP O-RING 6G162401 2.20
95 HANDLE CAP 6J418102 4.40
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6Q361701 17.60
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6Q361901 2.20
