[SHIMANO] Genuine Spare Parts for 23 BB-X Larissa C3000DXG Product Code: 046222 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 23 BB-X Larissa C3000DXG Product Code: 046222 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$42.90 [Regular Price: US$1.10 - US$71.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.1 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/7025

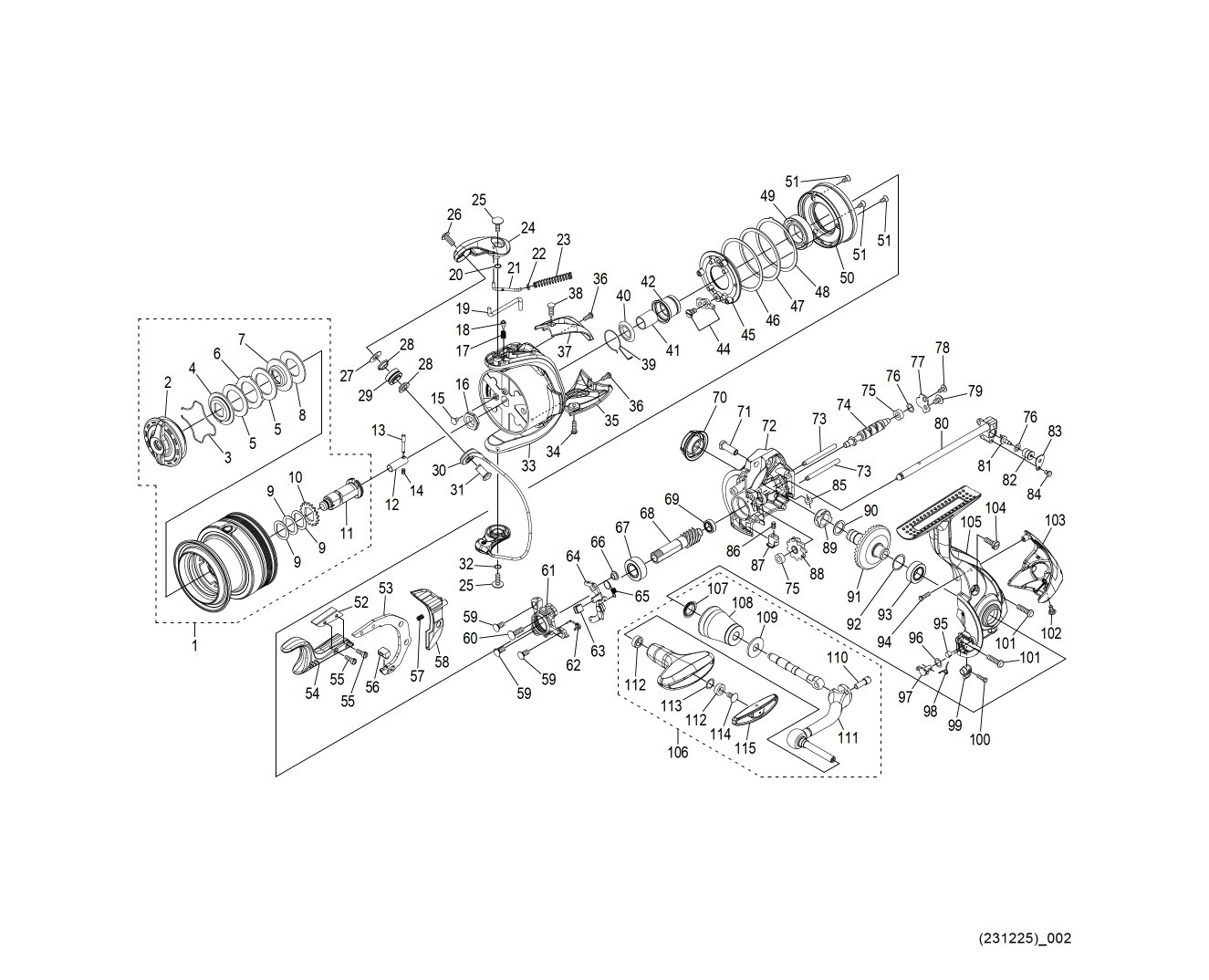

　Reel Part's Schematic Diagram


* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 1429K SPOOL ASSEMBLY 71.50
2 13BFH DRAG KNOB ASSEMBLY 22.55
3 10B6J STOPPER SPRING 1.65
4 13K2L OVAL WASHER 2.75
5 102ZP DRAG WASHER (A) 1.65
6 13K0W KI WASHER WITH EARS 1.65
7 10B9R OVAL WASHER 1.65
8 102ZF DRAG WASHER 1.65
9 101DN SPOOL WASHER 2.20
10 103MK SPOOL HOLDER (A) 1.65
11 13DA9 SPOOL HOLDER (B) SET 9.35
12 13LMH SPOOL HOLDER COLLAR 3.85
13 13LQ0 SPOOL HOLDER FIXING PIN 1.65
14 13K4Y SPOOL PIN FIXING SPRING 1.65
15 10MPL FIXING BOLT 1.10
16 107VT ROTATING FRAME NUT 3.85
17 10986 CLICK SPRING 1.10
18 106UX CLICK PIN 1.65
19 13KRM INTERNAL GRIPPING LEVER 2.75
20 10192 ARM CAM ADJUSTMENT WASHER 1.10
21 105LU ARM SPRING GUIDE (A) 1.65
22 1064R ARM SPRING GUIDE (A) COLLAR 1.65
23 105FU ARM CAM SPRING 1.65
24 143BA ARM CAM 6.05
25 103D9 FIXING BOLT 1.65
26 13YWV FIXING BOLT 1.10
27 10E7Q WASHER 1.65
28 1020L LINE ROLLER BEARING COLLAR 2.75
29 10TSK LINE ROLLER (WITH BEARING) 22.55
30 1429L BAIL ASSEMBLY 35.20
31 13KM5 ARM FIXING SHAFT 4.40
32 10G6C WASHER 1.10
33 147AY ROTOR ASSEMBLY 30.80
34 103NJ FIXING BOLT 1.10
35 13KNS BALE MOUNTING COVER 6.05
36 103N9 FIXING BOLT 1.10
37 13KL0 ARM CAM SPRING COVER 6.05
38 103DE FIXING BOLT 1.10
39 13AYE BRAKE CLAW SPRING 1.65
40 10PV5 SEALS 2.75
41 13MNK PINION GEAR COLLAR 1.65
42 13NWU BRAKE BEARING RETAINING RING 6.05
44 13DBN BRAKE CLAW ASSEMBLY 3.85
45 13AYD BRAKE PLATE 9.35
46 13MKH BRAKE ADJUSTMENT WASHER 1.65
47 13MK9 BRAKE WASHER 1.65
48 13MKD BRAKE WASHER 1.65
49 10KXA BALL BEARING (12 X 21 X 5) 17.05
50 13AS2 BRAKE CORE 28.05
51 10MGG FIXING BOLT 1.10
52 13MP5 BRAKE LEVER NAMEPLATE 4.95
53 13MLK BRAKE LEVER (B) 22.55
54 143BC BRAKE LEVER (A) 15.95
55 10LPX FIXING BOLT 1.10
56 13LV5 BRAKE SHOE 1.65
57 13LUM BRAKE LEVER SPRING 1.65
58 13NKF BRAKE LEVER SEAT 3.85
59 10MLD FIXING BOLT 1.10
60 103LJ FIXING BOLT 1.10
61 13L0E BEARING PUSH PLATE 3.85
62 13ML7 BRAKE SWITCHING SPRING 1.65
63 10KY5 BRAKE SHOE (C) 1.10
64 13EN5 BRAKE LEVER PLATE 6.05
65 13MNB SAFETY BRAKE CLAW SPRING 1.65
66 13MND BRAKE LEVER PLATE COLLAR 1.65
67 104Q6 BALL BEARING (7 X 14 X 5) 13.75
68 13L8U PINION GEAR 13.75
69 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
70 10RSK HANDLE SCREW CAP 3.85
71 13MJR BRAKE LEVER FIXED SHAFT 2.75
72 143BD BODY 17.05
73 13LR1 SLIDER GUIDE 1.65
74 13M5U WORM SHAFT 9.35
75 106CM CROSS GEAR BUSH (FRONT) 1.65
76 10RR9 WASHER 2.75
77 13MPV WORM SHAFT COVER 1.65
78 10MT3 FIXING BOLT 1.10
79 103L6 FIXING BOLT 1.10
80 1429M MAIN SHAFT ASSEMBLY 22.55
81 106VH WORM SHAFT PIN 3.85
82 10JVB CROSS GEAR PIN COLLAR 2.75
83 10HAC CROSS GEAR PIN PUSH PLATE 1.65
84 10LV7 FIXING BOLT 1.10
85 105N8 FIXING NUT 1.65
86 13MNF BRAKE SHOE SPRING 1.65
87 13ML0 BRAKE SHOE 1.65
88 13M04 WORM SHAFT GEAR 6.05
89 10J6H BUSH (FOR MASTER GEAR) 1.65
90 10GFD WASHER 1.10
91 1429N DRIVE GEAR ASSEMBLY 27.50
92 10EEZ WASHER 2.75
93 104JD BALL BEARING (7X13X4) 13.75
94 13JPA FIXING BOLT 1.65
95 13NMU STOPPER SPRING GUIDE 3.85
96 1059U WASHER 1.10
97 13LLQ STOPPER CAM 2.75
98 13LQ3 STOPPER CAM SPRING 1.65
99 13L1D STOPPER KNOB 1.65
100 10PRU FIXING BOLT 1.65
101 10LT0 FIXING BOLT 1.10
102 10MHE FIXING BOLT 1.10
103 13MVB BODY GUARD 9.35
104 13MJZ BRAKE LEVER FIXING BOLT 2.75
105 1429P LID ASSEMBLY WITH LEGS 47.85
106 1429Q HANDLE ASSEMBLY 55.00
107 10PXU HANDLE SHAFT SEAL 2.75
108 13Z8K HANDLE SHAFT FLANGE 15.95
109 13M8P HANDLE WASHER 1.65
110 10PV2 HANDLE SHAFT BOLT 3.85
111 1429R HANDLE SHANK ASSEMBLY 27.50
112 10PXY HANDLE GRIPPED BUSH 1.65
113 104FH HANDLE WASHER 2.20
114 103E9 FIXING BOLT 1.10
115 10R3A HANDLE CAP 3.85
MH01 140NX NAMEPLATE ON BACK OF LEG 2.75
