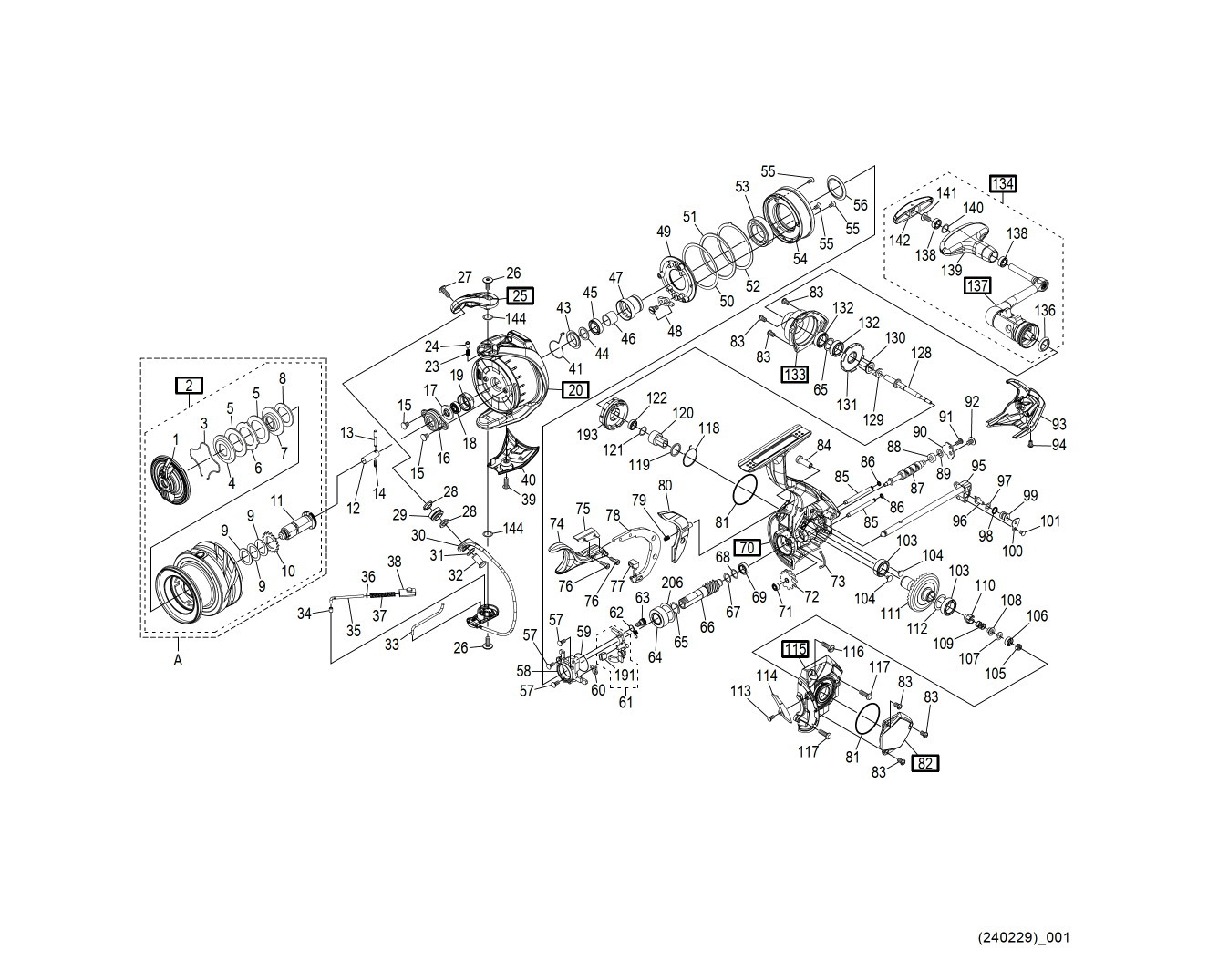

 Reel Part's Schematic Diagram


* As for the "118 / STOPPER SPRING R" and "193 / ROLLER CLUTCH ASSEMBLY", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* REEL BAG and the part numbers in the square enclosure are limited parts and cannot be ordered.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13BGT DRAG KNOB ASSEMBLY 33.00
2 147WN SPOOL ASSEMBLY *Cannot be ordered 176.00
3 10B6J STOPPER SPRING 1.65
4 10Q6Q OVAL WASHER 1.65
5 10E66 DRAG WASHER (A) 6.05
6 10BCP DRAG EAR WASHERS 6.05
7 10B9R OVAL WASHER 1.65
8 10E6E DRAG WASHER (B) 6.05
9 101DN SPOOL WASHER 2.20
10 103MK SPOOL HOLDER (A) 1.65
11 13ARZ SPOOL HOLDER (B) SET 22.55
12 13LMH SPOOL HOLDER COLLAR 3.85
13 13LQ0 SPOOL HOLDER FIXING PIN 1.65
14 13K4Y SPOOL PIN FIXING SPRING 1.65
15 1055M FIXING BOLT 1.10
16 13KSS RETAINER 1.65
17 1004T ROTOR BEARING SEAL 3.85
18 103AZ ROTOR FRAME RECEIVER COLLAR ASSEMBLY 17.05
19 13KT4 ROTOR NUT 6.05
20 147WP ROTOR ASSEMBLY *Cannot be ordered 52.80
23 10CGZ CLICK SPRING 1.65
24 106UX CLICK PIN 1.65
25 1467Z ARM CAM *Cannot be ordered 8.80
26 10RFW FIXING BOLT 1.65
27 10TLJ FIXING BOLT 2.75
28 1020L LINE ROLLER BEARING COLLAR 2.75
29 10TSK LINE ROLLER (WITH BEARING) 22.55
30 147WQ BAIL ASSEMBLY 56.10
31 1002S ARM FIXING SHAFT WASHER 1.10
32 13KM5 ARM FIXING SHAFT 4.40
33 13KT3 INNER GERI LEVER 2.20
34 10DKC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
35 10SAN ARM SPRING GUIDE (A) 3.85
36 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
37 10R2P ARM CAM SPRING 1.65
38 10R2E ARM CAM SPRING GUIDE (B) 2.75
39 10DT7 FIXING BOLT 1.65
40 13KT2 BAIL MOUNTING COVER 6.05
41 13AYE BRAKE CLAW SPRING 1.65
43 13NN3 BRAKE GEAR BEARING SEAL 2.75
44 13PL1 WASHER 1.10
45 104PN BALL BEARING (7 X 11 X 3) 13.75
46 13SMA PINION GEAR COLLAR 1.65
47 13NRB BRAKE BEARING STOP RING 9.35
48 13DBN BRAKE CLAW ASSEMBLY 3.85
49 13AYD BRAKE PLATE 9.35
50 13MKH BRAKE ADJUSTMENT WASHER 1.65
51 13MK9 BRAKE WASHER 1.65
52 13MKD BRAKE WASHER 1.65
53 10KXA BALL BEARING (12 X 21 X 5) 17.05
54 13AS2 BRAKE CORE 28.05
55 10MGG FIXING BOLT 1.10
56 13NWW BRAKE GEAR BEARING SEAL 1.65
57 10MGM FIXING BOLT 1.10
58 13L0H BEARING PUSH PLATE 9.35
59 13M30 O-RING 3.85
60 13AZ1 BRAKE SWITCHING SPRING 1.65
61 13ATQ BRAKE LEVER PLATE 6.60
62 13AZ2 SAFETY BRAKE CLAW SPRING 1.65
63 10LC5 LEVER PLATE FIXING SHAFT 2.75
64 104Q6 BALL BEARING (7X14X5) 13.75
65 13MGK WASHER 1.65
66 13LAH PINION GEAR 18.70
67 10DJ1 WASHER 1.65
68 13PE8 SPACER 1.10
69 10RKR BALL BEARING (5X8X2.5) 7.15
70 1483W BODY ASSEMBLY *Cannot be ordered 176.00
71 10PC0 BALL BEARING (2X5X2.5) 13.75
72 13LYD WORM SHAFT GEAR 9.35
73 13MBR LID FLANGE SEAL 1.10
74 13Y0B BRAKE LEVER (A) 39.60
75 13MLY BRAKE LEVER NAMEPLATE 6.05
76 13MPT FIXING BOLT 3.85
77 13LV5 BRAKE SHOE 1.65
78 13MPG BRAKE LEVER (B) 39.60
79 13LUM BRAKE LEVER SPRING 1.65
80 13NR3 BRAKE LEVER SEAT 3.30
81 13JZX O-RING 3.85
82 14681 COVER PLATE *Cannot be ordered 38.50
83 13MBS FIXING BOLT 2.75
84 13MJT BRAKE LEVER FIXING SHAFT 3.85
85 13LUA SLIDER GUIDE 6.05
86 10JAB O-RING 1.65
87 13M62 WORM SHAFT 9.35
88 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
89 100XZ WASHER 2.20
90 13MVM WORM SHAFT COVER 1.65
91 10LVD FIXING BOLT 1.10
92 10E8M FIXING BOLT 1.65
93 13MVL BODY GUARD 11.55
94 106ZG FIXING BOLT 1.65
95 13DD3 MAIN SHAFT ASSEMBLY 28.05
96 106VH WORM SHAFT PIN 3.85
97 10RR9 WASHER 2.75
98 108W9 O-RING (3X5) 1.65
99 13LUB WORM SHAFT PIN COLLAR 1.10
100 13NR1 WORM SHAFT PIN PUSH PLATE 1.65
101 13JXE FIXING BOLT 1.10
103 10EX8 BALL BEARING (8X12X3.5) 13.75
104 13JT1 FIXING BOLT 1.65
105 13NWY NYLON NUT 3.30
106 13L4T BALL BEARING (2X6X2.3) 8.80
107 13PL2 WASHER 1.10
108 13S0T BRAKE SPRING GUIDE 1.10
109 13RUS BRAKE SPRING 1.10
110 13RUR BRAKE BUSHING 1.10
111 13LGF DRIVE GEAR 33.00
112 13FMW WASHER 2.20
113 13JXF FIXING BOLT 1.10
114 13LNC INTERNAL GEARS 1.10
115 147WT COVER ASSEMBLY *Cannot be ordered 71.50
116 10L5M FIXING BOLT 1.65
117 10M2C FIXING BOLT 1.10
118 13LND STOPPER SPRING R *Cannot be ordered 1.65
119 13NKK ROLLER CLUTCH INNER COLLAR 2.75
120 13NR2 ROLLER CLUTCH INNER 7.15
121 10G8G WASHER 1.10
122 10SAM BALL BEARING (4X7X2) 13.75
128 13MPJ HANDLE SHAFT (C) 9.90
129 13MD3 HANDLE SHAFT YURUMI STOPPER WASHER 1.65
130 13MHW HANDLE SHAFT (B) 9.35
131 13NLQ ROLLER CLUTCH PLATE 20.35
132 104PP BALL BEARING (7X11X3) 13.75
133 14683 UNIT PLATE *Cannot be ordered 41.80
134 147WW HANDLE ASSEMBLY *Cannot be ordered 132.00
136 13MPH HANDLE SHAFT SEAL 2.75
137 147WY HANDLE SHANK ASSEMBLY *Cannot be ordered 104.50
138 104VX BALL BEARING (4 X 7 X 2.5) 13.75
139 10R38 HANDLE KNOB 17.05
140 104FH WASHER 2.20
141 103E9 FIXING BOLT 1.10
142 10R3A HANDLE CAP 3.85
144 10192 ARM CAM ADJUSTMENT WASHER 1.10
191 10KY5 BRAKE SHOE (C) 1.10
193 13ESK ROLLER CLUTCH ASSEMBLY *Cannot be ordered 21.45
206 13PL7 WASHER 1.10
*F01 14617 REEL BAG *Cannot be ordered 16.50
AC02 13R2V NO. NUMBER STICKER 2.75
MH01 14614 NAMEPLATE ON THE BACK OF THE LEG 1.65
