[SHIMANO] Genuine Spare Parts for 24 VANFORD 4000XG Product Code: 047113 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 VANFORD 4000XG Product Code: 047113 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$62.70 [Regular Price: US$1.10 - US$104.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.2 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/8133

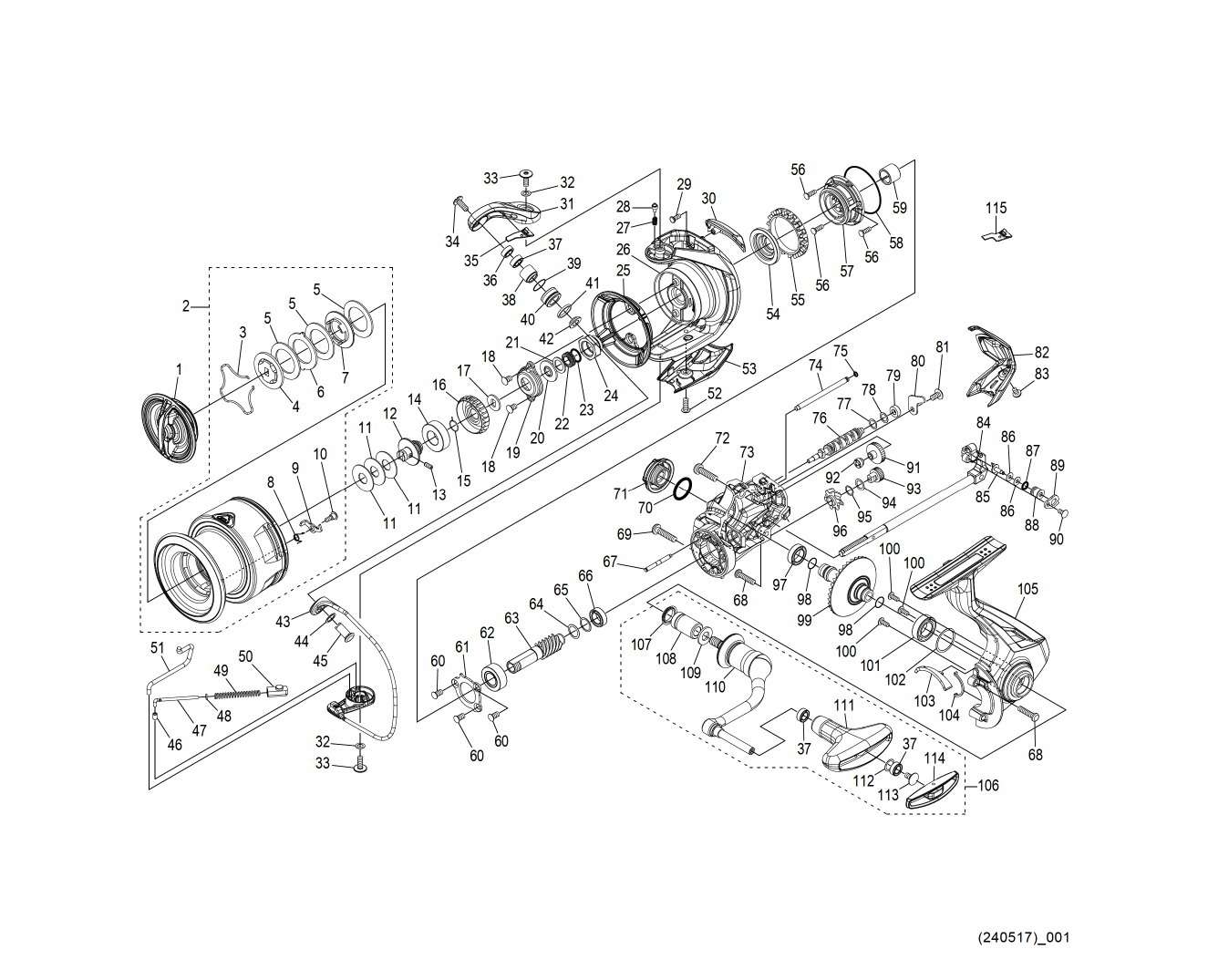

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14626 DRAG KNOB ASSEMBLY 19.80
2 148L8 SPOOL ASSEMBLY 104.50
3 10B8N STOPPER SPRING 1.65
4 10K3C OVAL WASHER 6.05
5 142M9 DRAG WASHER (A) 1.65
6 1427B EAR WASHERS 1.65
7 10B9D DRAG WASHER (A) 2.75
8 10BQF SPOOL PIN SPRING 1.65
9 102H5 SPOOL PIN 1.65
10 10TRB FIXING BOLT 1.65
11 10BSL SPOOL WASHER 1.10
12 13YXH MAIN SHAFT BEARING GUIDE 6.60
13 10PN3 SET SCREW (M2 X 5) 1.65
14 10J3G SPOOL BUSH 1.65
15 107V2 RATCHET SPRING 1.65
16 107PS DRAG CLICK RATCHET 2.75
17 103NY SPOOL RECEIVER 1.65
18 103GW FIXING BOLT 1.65
19 1076N RETAINER 2.75
20 10DY6 ROTOR BEARING SEAL 1.65
21 100RU WASHER 1.65
22 13YXF MAIN SHAFT COLLAR 4.95
23 10DXE O-RING 1.65
24 13YXE ROTOR NUT 6.05
25 147BJ ROTOR FLANGE 9.35
26 148KX ROTOR ASSEMBLY 41.80
27 10HE7 CLICK SPRING 1.65
28 106ZC CLICK PIN 1.65
29 10RNG FIXING BOLT 1.65
30 147BG BALANCER GUARD 2.75
31 1468B ARM CAM 8.25
32 10K96 WASHER 1.65
33 10TLM FIXING BOLT 1.65
34 10TLJ FIXING BOLT 2.75
35 13YXC ARM CAM FIN 1.10
36 10E44 LINE ROLLER COLLAR 2.75
37 104VX BALL BEARING (4X7X2.5) 13.75
38 1009K LINE ROLLER BUSH 1.65
39 1009E O-RING 1.65
40 1009A LINE ROLLER 6.05
41 10RFZ LINE ROLLER SPACER 1.65
42 10TJM LINE ROLLER BEARING COLLAR 2.75
43 148KY BAIL ASSEMBLY 46.20
44 1018Z WASHER 1.65
45 10TPC ARM FIXING SHAFT 6.05
46 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
47 10SAN ARM SPRING GUIDE (A) 3.85
48 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
49 10DMC ARM CAM SPRING 1.65
50 107AB ARM CAM SPRING SEAT 2.75
51 147C4 INNER GERI LEVER 2.75
52 101CC FIXING BOLT 1.65
53 14750 BAIL MOUNTING COVER 8.25
54 101D5 ROTOR COLLAR 9.35
55 10QXQ FRICTION RING 2.75
56 100WT FIXING BOLT 1.65
57 10S2L ROLLER CLUTCH ASSEMBLY 12.65
58 1009Z O-RING 1.65
59 1009Y ROLLER CLUTCH INNER 3.85
60 100WY FIXING BOLT 1.65
61 10DWD BEARING PUSH PLATE 1.65
62 10E7A BALL BEARING (7X14X5) 7.15
63 1429G PINION GEAR 19.80
64 10E37 WASHER 1.65
65 10GD9 WASHER 1.65
66 104JT BALL BEARING (6X10X3) 13.75
67 13YXL INTERMEDIATE GEAR SHAFT 3.85
68 10LZ4 FIXING BOLT 1.10
69 10DWX FIXING BOLT 1.65
70 108WH O-RING 1.65
71 1427T HANDLE SCREW CAP 5.50
72 13JWW FIXING BOLT 1.65
73 1467P BODY 33.00
74 13YXQ SLIDER GUIDE 1.65
75 100BH O-RING 1.10
76 13YXM WORM SHAFT 6.05
77 10ECK WASHER 1.10
78 10K98 WASHER 1.10
79 1009C WORM SHAFT BUSHING 1.65
80 13YXP WORM SHAFT COVER 1.65
81 10QG5 FIXING BOLT 1.10
82 146BA BODY GUARD 11.55
83 10RX2 FIXING BOLT 1.65
84 148KZ MAIN SHAFT ASSEMBLY 21.45
85 106VJ WORM SHAFT PIN 3.85
86 10703 WASHER 1.10
87 100WX O-RING 1.65
88 1010C WORM SHAFT PIN COLLAR 1.65
89 1010D WORM SHAFT PIN PUSH PLATE 1.65
90 10LCT FIXING BOLT 1.65
91 10074 WORM SHAFT GEAR 9.35
92 13YXN BUSH 1.10
93 13YXK INTERMEDIATE GEAR (SMALL) 8.25
94 10G6D WASHER 1.65
95 10TBA WORM SHAFT GEAR (L) 1.65
96 1006V INTERMEDIATE GEAR (L) 9.35
97 107FA BALL BEARING (7 X 11 X 3) 7.15
98 1009S O-RING 1.65
99 1429H DRIVE GEAR 20.35
100 100UL FIXING BOLT 1.65
101 107FB BALL BEARING（8X14X4) 7.15
102 100W9 WASHER 2.75
103 14282 INTERNAL GERI CONTACT BOLT 1.65
104 1009W FOOT FLANGE SEAL 2.75
105 148KT COVER ASSEMBLY 33.00
106 148L9 HANDLE ASSEMBLY 68.20
107 10PXV HANDLE SHAFT SEAL 2.75
108 10DYA HANDLE SHAFT FLANGE (B) 6.05
109 100RR HANDLE WASHER 1.65
110 148L7 HANDLE SHANK ASSEMBLY 51.15
111 10RHC HANDLE KNOB 17.05
112 104FH HANDLE WASHER 2.20
113 10LFA FIXING BOLT 1.10
114 1429D HANDLE CAP 3.85
115 13YXU ARM CAM FIN 1.10
MH01 147BK NAMEPLATE ON BACK OF LEG 2.75
