[SHIMANO] Genuine Spare Parts for 24 VANFORD C2500SXG Product Code: 047045 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$51.21 [Regular Price: US$1.10 - US$73.15]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.2 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/product/8133

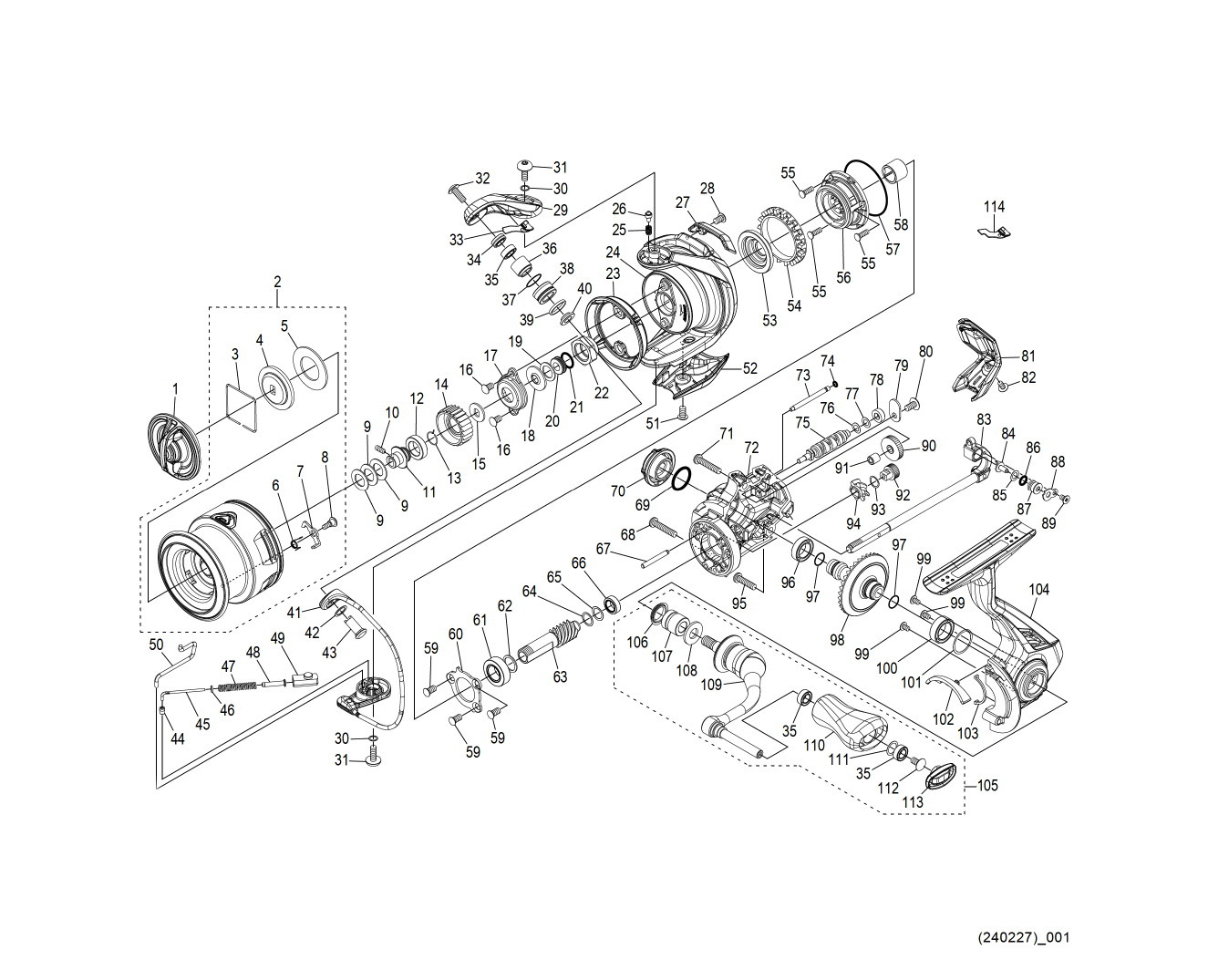

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 146GQ | DRAG KNOB ASSEMBLY | 19.80 |
2 | 146H8 | SPOOL ASSEMBLY | 73.15 |
3 | 10B87 | STOPPER SPRING | 1.65 |
4 | 13K0V | OVAL WASHER | 1.65 |
5 | 10R5H | DRAG WASHER (A) | 2.20 |
6 | 10BQF | SPOOL PIN SPRING | 1.65 |
7 | 102H5 | SPOOL PIN | 1.65 |
8 | 10TRB | FIXING BOLT | 1.65 |
9 | 10BU9 | SPOOL WASHER | 1.10 |
10 | 10PN3 | SET SCREW (M2 X 5) | 1.65 |
11 | 10THY | SPOOL SHAFT BEARING GUIDE | 3.85 |
12 | 10J3F | SPOOL BUSH | 1.65 |
13 | 107V2 | RATCHET SPRING | 1.65 |
14 | 10SYS | DRAG CLICK RATCHET | 2.75 |
15 | 103PE | SPOOL BEARING | 1.65 |
16 | 103GW | FIXING BOLT | 1.65 |
17 | 1076N | RETAINER | 2.75 |
18 | 1017W | ROTOR BEARING SEAL | 1.65 |
19 | 100RU | WASHER | 1.65 |
20 | 10RDL | MAIN SHAFT COLLAR | 3.85 |
21 | 10DXE | O-RING | 1.65 |
22 | 1427D | ROTOR NUT | 6.05 |
23 | 146GZ | ROTOR FLANGE | 8.80 |
24 | 1480Q | ROTOR ASSEMBLY | 41.80 |
25 | 13ZAA | CLICK SPRING | 1.65 |
26 | 106ZC | CLICK PIN | 1.65 |
27 | 146GY | BALANCER GUARD | 2.75 |
28 | 10RNG | FIXING BOLT | 1.65 |
29 | 1451C | ARM CAM | 8.25 |
30 | 10K96 | WASHER | 1.65 |
31 | 10RFW | FIXING BOLT | 1.65 |
32 | 10TLJ | FIXING BOLT | 2.75 |
33 | 13ZA9 | ARM CAM FIN | 1.10 |
34 | 10E44 | LINE ROLLER COLLAR | 2.75 |
35 | 104VX | BALL BEARING (4X7X2.5) | 13.75 |
36 | 1009K | LINE ROLLER BUSH | 1.65 |
37 | 1009E | O-RING | 1.65 |
38 | 1009A | LINE ROLLER | 6.05 |
39 | 10RFZ | LINE ROLLER SPACER | 1.65 |
40 | 10TJM | LINE ROLLER BEARING COLLAR | 2.75 |
41 | 1480R | BAIL ASSEMBLY | 46.20 |
42 | 1018Z | WASHER | 1.65 |
43 | 10TPC | ARM FIXING SHAFT | 6.05 |
44 | 142QB | ARM SPRING GUIDE (A) BUSH | 1.65 |
45 | 142Q8 | ARM SPRING GUIDE (A) | 1.10 |
46 | 142Q7 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
47 | 142Q9 | ARM CAM SPRING | 1.65 |
48 | 142PV | ARM SPRING GUIDE (C) | 1.65 |
49 | 144RE | ARM SPRING GUIDE (B) | 1.65 |
50 | 146HF | INNER GERI LEVER | 2.75 |
51 | 10SH9 | FIXING BOLT | 1.65 |
52 | 146GW | BAIL MOUNTING COVER | 8.25 |
53 | 101D5 | ROTOR COLLAR | 9.35 |
54 | 10QXQ | FRICTION RING | 2.75 |
55 | 100WT | FIXING BOLT | 1.65 |
56 | 10S2L | ROLLER CLUTCH ASSEMBLY | 12.65 |
57 | 1009Z | O-RING | 1.65 |
58 | 1009Y | ROLLER CLUTCH INNER | 3.85 |
59 | 100WY | FIXING BOLT | 1.65 |
60 | 10DWD | BEARING PUSH PLATE | 1.65 |
61 | 10DZB | BALL BEARING (7X13X4) | 7.15 |
62 | 143G5 | WASHER | 1.10 |
63 | 144S4 | PINION GEAR | 19.80 |
64 | 10HE5 | WASHER | 1.65 |
65 | 10TBA | WASHER | 1.65 |
66 | 104JZ | BALL BEARING (5 X 8 X 2.5) | 13.75 |
67 | 144RJ | INTERMEDIATE GEAR SHAFT | 3.85 |
68 | 10TND | FIXING BOLT | 1.65 |
69 | 10E3K | O-RING | 1.65 |
70 | 144RK | HANDLE SCREW CAP | 5.50 |
71 | 146AR | FIXING BOLT | 1.65 |
72 | 1451E | BODY | 33.00 |
73 | 144RM | SLIDER GUIDE | 1.65 |
74 | 100BH | O-RING | 1.10 |
75 | 144RN | WORM SHAFT | 6.05 |
76 | 10ECK | WASHER | 1.10 |
77 | 10K98 | WASHER | 1.10 |
78 | 144RP | BUSH | 1.10 |
79 | 10S7C | WORM SHAFT COVER | 1.65 |
80 | 10QG5 | FIXING BOLT | 1.10 |
81 | 1451F | BODY GUARD | 11.55 |
82 | 10RX2 | FIXING BOLT | 1.65 |
83 | 143RE | MAIN SHAFT ASSEMBLY | 22.00 |
84 | 1018D | WORM SHAFT PIN | 6.05 |
85 | 10K9C | WASHER | 1.10 |
86 | 100WX | O-RING | 1.65 |
87 | 1009L | WORM SHAFT PIN COLLAR | 1.65 |
88 | 144RR | WORM SHAFT PIN PUSH PLATE | 1.65 |
89 | 1055H | FIXING BOLT | 1.65 |
90 | 10DK0 | WORM SHAFT GEAR | 9.35 |
91 | 1009C | WORM SHAFT BUSHING | 1.65 |
92 | 10DK2 | INTERMEDIATE GEAR (S) | 8.25 |
93 | 10SYU | WASHER | 1.65 |
94 | 144S5 | INTERMEDIATE GEAR (LARGE) | 9.35 |
95 | 10M2L | FIXING BOLT | 1.10 |
96 | 107FA | BALL BEARING (7X11X3) | 7.15 |
97 | 1009S | O-RING | 1.65 |
98 | 142QC | DRIVE GEAR | 20.35 |
99 | 10SH0 | FIXING BOLT | 1.65 |
100 | 10EX6 | BALL BEARING (8X12X3.5) | 7.15 |
101 | 101AY | WASHER | 2.20 |
102 | 1017Y | INNER GERI HITARI | 1.65 |
103 | 1009W | FOOT FLANGE SEAL | 2.75 |
104 | 1480Z | COVER ASSEMBLY | 33.00 |
105 | 146H5 | HANDLE ASSEMBLY | 68.20 |
106 | 10PXV | HANDLE SHAFT SEAL | 2.75 |
107 | 10DZE | HANDLE SHAFT FLANGE (B) | 6.05 |
108 | 100RR | HANDLE WASHER | 1.65 |
109 | 1480X | HANDLE SHANK ASSEMBLY | 51.15 |
110 | 14285 | HANDLE KNOB | 11.55 |
111 | 104FH | HANDLE WASHER | 2.20 |
112 | 10LFA | FIXING BOLT | 1.10 |
113 | 14286 | HANDLE CAP | 4.95 |
114 | 13ZAB | ARM CAM FIN | 1.10 |
MH01 | 146HA | NAMEPLATE ON BACK OF LEG | 2.75 |
