[DAIWA] Genuine Spare Parts for 07 TD ZILLION P, H, SH 100SH Product code: 00614052 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$63.14 [Regular Price: US$1.10 - US$90.20]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.
*Please make sure to read about the conditions before you order.

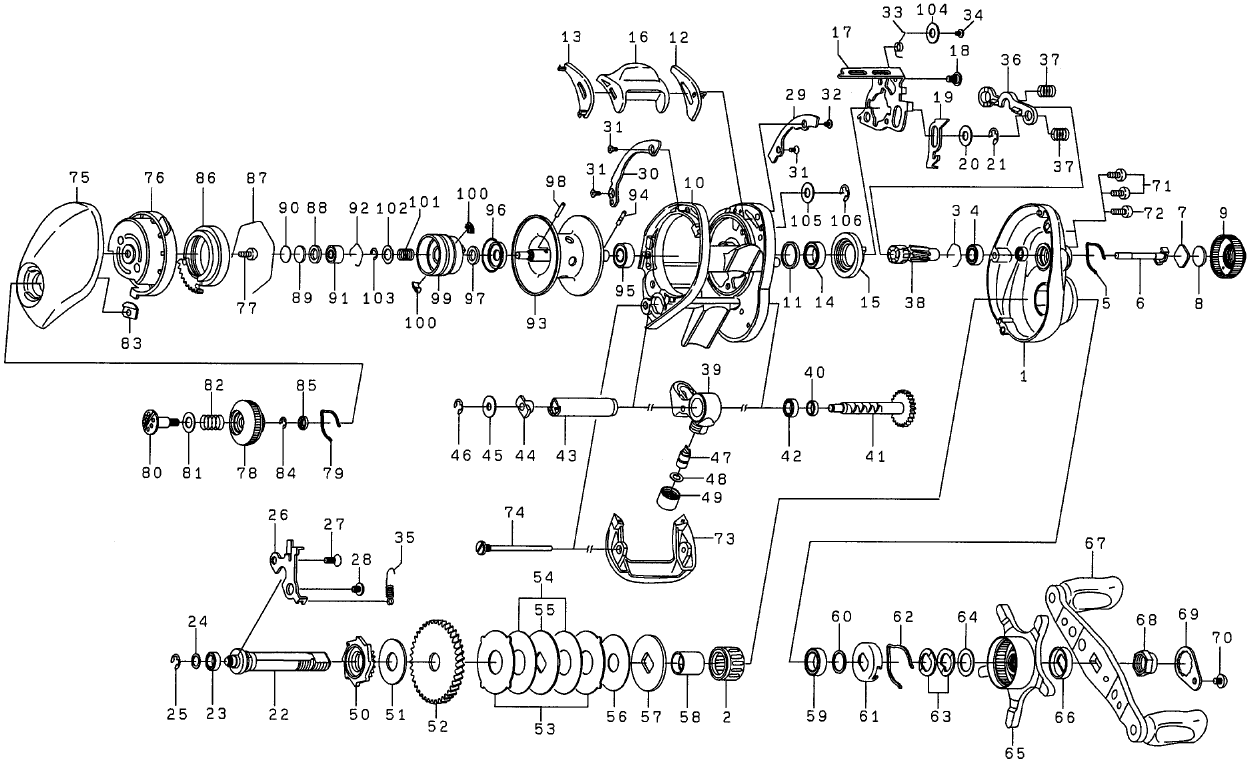

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | RS PLATE *Discontinued | 6G796201 | 60.50 |
2 | ONE-WAY CLUTCH | 6G819801 | 20.90 |
3 | PINION RING | 6B421601 | 2.20 |
4 | RS BALL BEARING | 6G538007 | 15.40 |
5 | MECHANICAL BRAKE LEAF SP | 6F262701 | 2.20 |
6 | PINION SHAFT | 6F744101 | 3.30 |
7 | MECHANICAL BRAKE KNOB W (A) | 6B175401 | 1.10 |
8 | MECHANICAL BRAKE KNOB W (B) | 6B175503 | 1.10 |
9 | MECHANICAL BRAKE KNOB *Discontinued | 6F833907 | 15.40 |
10 | FRAME *Discontinued | 6G789002 | 66.00 |
11 | CLUTCH CAM COLLAR *Discontinued | 6F834701 | 2.20 |
12 | CLUTCH LEVER PLATE (R) *Discontinued | 6G009302 | 2.20 |
13 | CLUTCH LEVER PLATE (L) *Discontinued | 6G009402 | 2.20 |
14 | CLUTCH CAM BALL BEARING | 6G431008 | 15.40 |
15 | CLUTCH CAM | 6F793501 | 7.70 |
16 | CLUTCH LEVER *Discontinued | 6G009501 | 7.70 |
17 | CLUTCH CAM PLATE *Discontinued | 6G790001 | 3.30 |
18 | CLUTCH CAM PLATE SC | 6M070101 | 4.40 |
19 | KICK LEVER *Discontinued | 6G790101 | 4.40 |
20 | KICK LEVER W | 63716906 | 1.10 |
21 | KICK LEVER RETAINER | 63201402 | 2.20 |
22 | GEAR SHAFT *Discontinued | 6G790201 | 29.70 |
23 | GEAR SHAFT BALL BEARING | 6G466205 | 15.40 |
24 | GEAR SHAFT W *Discontinued | 6G755201 | 1.10 |
25 | GEAR SHAFT RITINER | 63205901 | 2.20 |
26 | GEAR SHAFT PLATE *Discontinued | 6G790301 | 2.20 |
27 | GEAR SHAFT PLATE SC (A) | 6E134503 | 2.20 |
28 | GEAR SHAFT PLATE SC (B) | 6G021201 | 3.30 |
29 | GUARD PLATE (R) | 6G794102 | 4.40 |
30 | GUARD PLATE (L) | 6G795702 | 4.40 |
31 | GUARD PLATE SC (A) *Discontinued | 6G318503 | 2.20 |
32 | GUARD PLATE SC (B) | 6G611501 | 2.20 |
33 | CLUTCH CAM SP | 6G790401 | 2.20 |
34 | CLUTCH CAM SP HOLD SC *Discontinued | 6F505701 | 2.20 |
35 | KICK LEVER SP *Discontinued | 6G790501 | 2.20 |
36 | CLUTCH PLATE | 6F794801 | 2.20 |
37 | CLUTCH SP *Discontinued | 6G047201 | 2.20 |
38 | PINION *Discontinued | 6G796301 | 18.70 |
39 | LEVEL WINDING | 6G410301 | 22.00 |
40 | WORM SHAFT COLLAR | 6G010701 | 3.30 |
41 | WORM SHAFT | 6G790701 | 12.10 |
42 | WORM SHAFT BEARING | 6F648301 | 4.40 |
43 | WORM SHIELD | 6F836502 | 3.30 |
44 | WORM SHAFT BUSHINGS | 6B715601 | 2.20 |
45 | WORM SHAFT W | 6F655501 | 1.10 |
46 | WORM SHAFT RETICULAR | 63205901 | 2.20 |
47 | WORM SHAFT POLE | 61214212 | 3.30 |
48 | POLE W | 63731303 | 1.10 |
49 | POLE HOLDER NUT | 63424807 | 3.30 |
50 | RATCHET | 6G790901 | 15.40 |
51 | DRIVE GEAR W | 6G863501 | 6.60 |
52 | DRIVE GEAR | 6G796401 | 20.90 |
53 | DRAG GRIP W | 6G791301 | 2.20 |
54 | DRAG W (A) *Discontinued | 6G791401 | 3.30 |
55 | DRAG DISK W (A) | 6F904902 | 2.20 |
56 | DRAG W (B) *Discontinued | 6G711101 | 3.30 |
57 | DRAG DISC W (B) | 6G358501 | 2.20 |
58 | CLUTCH RING | 6G011401 | 8.80 |
59 | DRAG BALL BEARING | 6G431001 | 15.40 |
60 | DRAG BEARING W | 6B553801 | 1.10 |
61 | DRAG HOLDER | 6F028201 | 2.20 |
62 | DRAG LEAF SP | 6F032401 | 2.20 |
63 | DRAG SP・W | 61508901 | 2.20 |
64 | DRAG COLLARS | 63737810 | 1.10 |
65 | STAR DRAG *Discontinued | 6G792501 | 35.20 |
66 | HANDLE COLLARS | 6F850402 | 3.30 |
67 | HANDLE NUT *Discontinued | 6G793101 | 70.40 |
68 | HANDLE NUT | 6G793301 | 4.40 |
69 | HANDLE LOCK PLATE | 60403209 | 3.30 |
70 | HANDLE LOCK PLATE SC | 63538301 | 2.20 |
71 | RS PLATE SC (A) | 6G040805 | 2.20 |
72 | RS PLATE SC (B) | 6G040801 | 2.20 |
73 | FRONT COVER | 6G011605 | 7.70 |
74 | FRONT COVER SC | 6G011702 | 7.70 |
75 | LS PLATE *Discontinued | 6G036814 | 20.90 |
76 | SET PLATE *Discontinued | 6G011902 | 20.90 |
77 | SET PLATE SC | 63510906 | 2.20 |
78 | BRAKE DIAL *Discontinued | 6F577802 | 6.60 |
79 | BRAKE DIAL LEAF SP | 6F051701 | 2.20 |
80 | BRAKE DIAL SC | 6G793501 | 7.70 |
81 | BRAKE DIAL SC-W *Discontinued | 6G793602 | 1.10 |
82 | BRAKE DIAL SP | 6E167101 | 2.20 |
83 | BRAKE DIAL RITINER (A) | 6F613401 | 2.20 |
84 | BRAKE DIAL RITINER (B) | 6B339801 | 2.20 |
85 | BRAKE DIAL COLLARS | 6F637701 | 1.10 |
86 | MAG HOLDER | 6F717702 | 17.60 |
87 | MAG HOLDER RING | 6B543201 | 2.20 |
88 | LS BEARING W (A) | 6F574303 | 1.10 |
89 | LS BEARING W (B) | 63757411 | 1.10 |
90 | LS BEARING W (C) | 63757404 | 1.10 |
91 | LS BALL BEARING | 6G431105 | 15.40 |
92 | LS BEARING RING | 6E219701 | 2.20 |
93 | SPOOL (93-103) *Discontinued | 6Z017901 | 90.20 |
94 | SPOOL PIN | 6G717501 | 2.20 |
95 | SPOOL BALL BEARING | 6G498508 | 15.40 |
96 | SPOOL HOLDER COLLAR *Discontinued | 6G796601 | 4.40 |
97 | SPOOL HOLDER COLLAR W | 6F574303 | 1.10 |
98 | SPOOL HOLDER PIN *Discontinued | 6G361001 | 2.20 |
99 | SPOOL HOLDER *Discontinued | 6G704405 | 7.70 |
100 | BALANCER *Discontinued | 6G704601 | 2.20 |
101 | SPOOL HOLDER SP *Discontinued | 6G546701 | 2.20 |
102 | SPOOL HOLDER W | 6G150301 | 1.10 |
103 | SPOOL HOLDER RETAINER | 63208202 | 2.20 |
104 | CLUTCH CAM SP HOLDER W | 6F440201 | 1.10 |
105 | CLUTCH CAM PLATE HOLDER W | 6G850701 | 1.10 |
106 | CLUTCH CAM PLATE HOLDER RITINER | 63205901 | 2.20 |
107 | MECHANICAL BRAKE KNOB W (C) | 6F625502 | 1.10 |
200 | HANDLE KNOB *Discontinued | 6F976407 | 15.40 |
201 | HANDLE KNOB W | 6B411703 | 1.10 |
202 | HANDLE KNOB COLLAR | 6G221601 | 2.20 |
203 | HANDLE KNOB SC | 6B679308 | 2.20 |
204 | HANDLE KNOB CAP | 6F578803 | 2.20 |
