[DAIWA] Genuine Spare Parts for 15 ZILLION TW/TWS (JAPAN MODEL) 1516SH Product code: 00613454 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 ZILLION TW/TWS (JAPAN MODEL) 1516SH Product code: 00613454 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$56.76 [Regular Price: US$1.10 - US$94.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

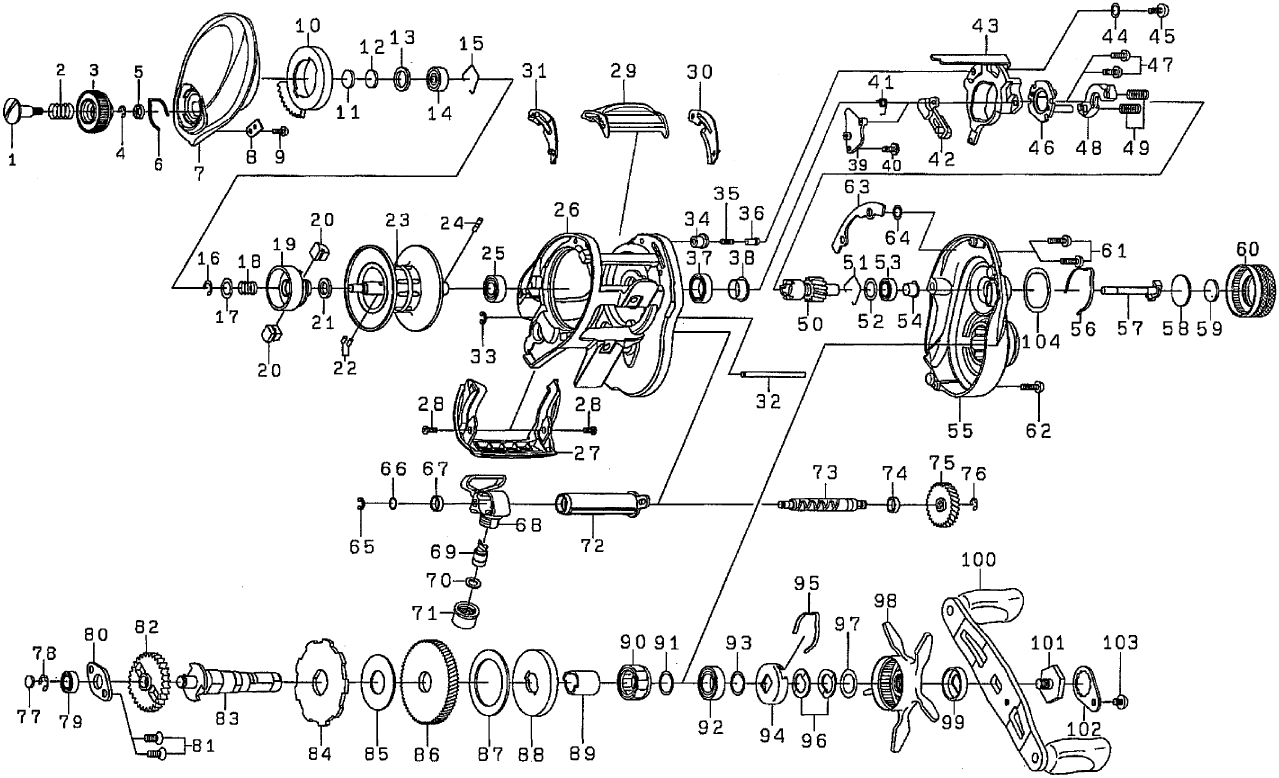

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6J045403 11.00
4 BRAKE DIAL RETINER (A) 6B339801 2.20
5 BRAKE DIAL COLOR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6H663401 2.20
7 LS PLATE 6J045301 30.80
8 BRAKE DIAL RITINER (B) 6H915501 2.20
9 BRAKE DIAL RITINER (B) SC 6G939301 2.20
10 MAG HOLDER 6J045701 40.70
11 LS BEARING W (A) 63757404 1.10
12 LS BEARING W (B) 63757411 1.10
13 LS BEARING W (C) 6G185101 1.10
14 LS BALL BEARING 6G511506 15.40
15 LS BEARING RING 6F032201 2.20
16 SPOOL HOLDER SP RETAINER 63208202 2.20
17 SPOOL HOLDER SP-W 6G150301 1.10
18 SPOOL HOLDER SP 6H801701 2.20
19 SPOOL HOLDER 6H930701 9.90
20 SPOOL HOLDER COLLAR 6H169001 2.20
21 SPOOL HOLDER W 6F574303 1.10
22 SPOOL HOLDER PIN 6H665301 2.20
23 SPOOL (16-25) 6Z021700 67.10
24 SPOOL PIN 6H358801 2.20
25 SPOOL BALL BEARING 6G498511 15.40
26 FRAME *Discontinued 6J044605 28.60
27 FRONT COVER 6J045201 8.80
28 FRONT COVER SC 6H455407 2.20
29 CLUTCH LEVER 6J101601 12.10
30 CLUTCH LEVER PLATE (R) 6H915601 2.20
31 CLUTCH LEVER PLATE (L) 6H915701 2.20
32 OSCILLATING POST 6H912101 2.20
33 OSCILLATING POST RETAINER 6H704101 2.20
34 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
35 CLUTCH CAM PLATE PIN SP 6H928801 2.20
36 CLUTCH CAM PLATE PIN 6J055201 2.20
37 CLUTCH CAM BALL BEARING 6G431008 15.40
38 CLUTCH CAM BEARING COLLAR 6M518401 7.70
39 KICK LEVER PLATE (A) 6H912301 2.20
40 KICK LEVER PLATE (A) SC 6H294101 2.20
41 KICK LEVER PLATE (SP) 6H450001 2.20
42 KICK LEVER 6H450101 9.90
43 CLUTCH CAM PLATE 6H928701 4.40
44 CLUTCH CAM PLATE SC・W 6H159201 1.10
45 CLUTCH CAM PLATE SC 63522501 2.20
46 KICK LEVER PLATE (B) 6H659101 3.30
47 KICK LEVER PLATE (B) SC 6B032904 2.20
48 CLUTCH PLATE 6H929001 3.30
49 CLUTCH SP 6J055301 2.20
50 PINION + DRIVE GEAR SET 6Z021819 50.60
51 PINION RING 6H160801 2.20
52 PINION BEARING W 6J073501 1.10
53 PINION BALL BEARING *Cannot be ordered 6J019303 45.10
54 PINION BEARING COLLAR *Cannot be ordered 6J724501 7.70
55 RS PLATE *Discontinued 6J075201 71.50
56 MECHANICAL BRAKE KNOB SP 6H160901 2.20
57 PINION SHAFT 6H159601 3.30
58 MECHANICAL BRAKE W (A) 6H161001 1.10
59 MECHANICAL BRAKE W (B) 6B175503 1.10
60 MECHANICAL BRAKE KNOB 6J097401 33.00
61 RS PLATE SC (A) 6G040822 3.30
62 RS PLATE SC (B) 6G040821 3.30
63 GUARD PLATE 6J044502 4.40
64 GUARD PLATE O-RING 6H770601 1.10
65 WARM SHAFT RITINER 63205901 2.20
66 WARM SHAFT W 6B411702 1.10
67 WARM SHAFT COLLAR 6G720001 2.20
68 LEVEL WINDING 6J176602 50.60
69 POLE 61214212 3.30
70 POLE W 63731303 1.10
71 POLE HOLDER NUT 6F402801 2.20
72 WORM SHIELD 6H910801 3.30
73 WORM SHAFT 6H911702 8.80
74 WORM SHAFT COLLAR 6G720001 2.20
75 WORM SHAFT GEAR 6H910501 3.30
76 WORMSHAFT GEAR RETAINER 6B339801 2.20
77 GEAR SHAFT W 6G099801 1.10
78 GEAR SHAFT RETAINER 63208002 2.20
79 GEAR SHAFT BALL BEARING 6G538007 15.40
80 GEAR SHAFT PLATE 6H928901 3.30
81 GEAR SHAFT PLATE SC 6E134509 2.20
82 WORM GEAR 6H912701 4.40
83 GEAR - SHAFT 6J044701 17.60
84 RATCHET 6H929401 3.30
85 DRIVE GEAR - W 6J085101 1.10
86 PINION + DRIVE GEAR SET 6Z021819 50.60
87 DRAG W 6H452602 6.60
88 DRAG DISK W 6H913201 3.30
89 CLUTCH RING 6J377801 8.80
90 ONE-WAY CLUTCH 6G819801 20.90
91 CLUTCH RING W 6B553802 1.10
92 HANDLE BALL BEARING 6G431008 15.40
93 HANDLE BEARING W 6F366802 1.10
94 DRAG HOLDER 6F028203 3.30
95 DRAG HOLDER LEAF SP 6F032401 2.20
96 DRAG HOLDER SP-W 61508901 2.20
97 STA-DRAG W 6H929501 2.20
98 STA-DRAG 6H694103 27.50
99 HANDLE COLOR 6F850401 3.30
100 HANDLE NUT 6J045001 94.60
101 HANDLE NUT 6G779101 6.60
102 HANDLE LOCK PLATE *Not available 60403206 3.30
103 HANDLE LOCK PLATE SC 63538301 2.20
104 MECHANICAL BRAKE O-RING 6H157002 1.10
201 HANDLE KNOB W 6H744801 1.10
202 HANDLE KNOB 6H747201 15.40
203 HANDLE KNOB BALL BEARING 6G469007 15.40
204 HANDLE KNOB COLLAR 6G720001 2.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6F578803 2.20
