[DAIWA] Genuine Spare Parts for 15 ZILLION TW/TWS (JAPAN MODEL) 1516H Product code: 00613452 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 ZILLION TW/TWS (JAPAN MODEL) 1516H Product code: 00613452 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$56.76 [Regular Price: US$1.10 - US$94.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

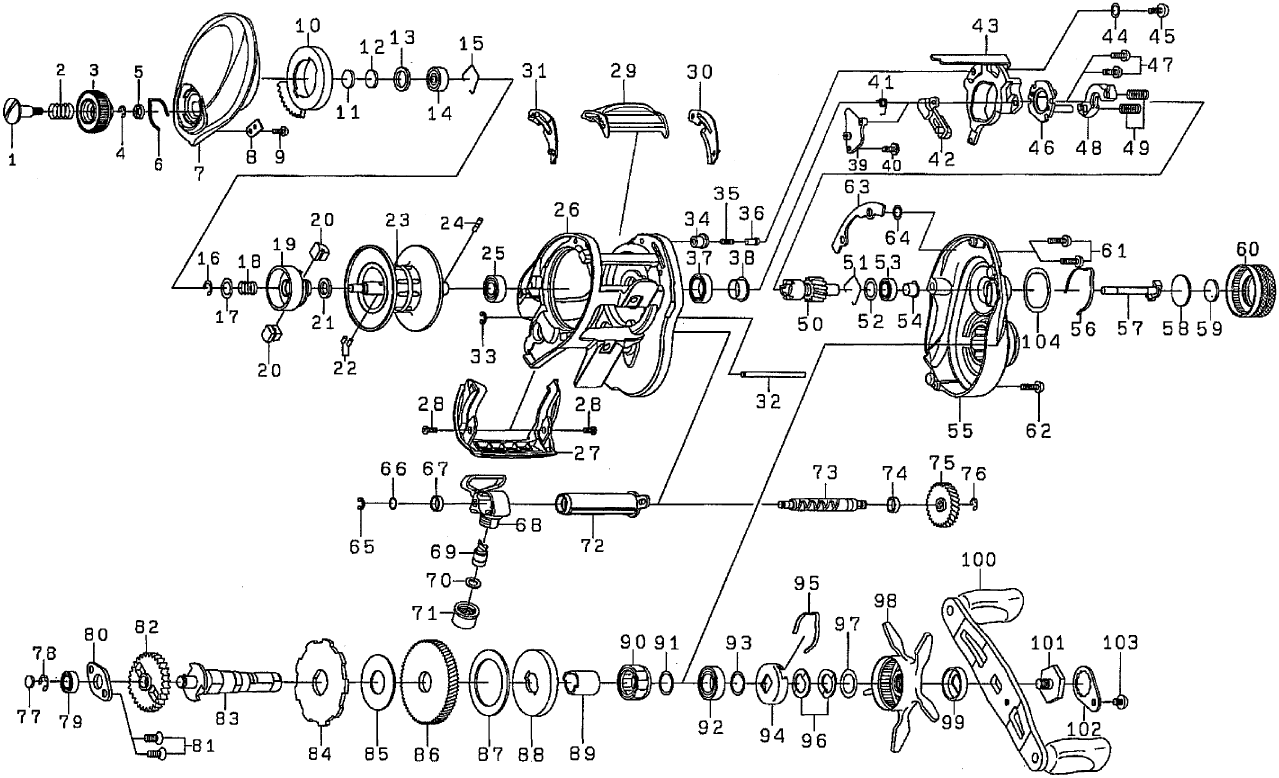

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6J045405 11.00
4 BRAKE DIAL RETAINER (A) 6B339801 2.20
5 BRAKE DIAL COLOR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6H663401 2.20
7 LS PLATE 6J045301 30.80
8 BRAKE DIAL RETAINER (B) 6H915501 2.20
9 BRAKE DIAL RETAINER (B) SC 6G939301 2.20
10 MUG HOLDER 6J045701 40.70
11 LS BEARING W (A) 63757404 1.10
12 LS BEARING W (B) 63757411 1.10
13 LS BEARING W (C) 6G185101 1.10
14 LS BALL BEARING 6G511506 15.40
15 LS BEARING RING 6F032201 2.20
16 SPOOL HOLDER SP RETAINER 63208202 2.20
17 SPOOL HOLDER SP/W 6G150301 1.10
18 SPOOL HOLDER SP 6H801701 2.20
19 SPOOL HOLDER 6H930701 9.90
20 SPOOL HOLDER COLOR 6H169001 2.20
21 SPOOL HOLDER W 6F574303 1.10
22 SPOOL HOLDER PIN 6H665301 2.20
23 SPOOL (16-25) 6Z021700 67.10
24 SPOOL PIN 6H358801 2.20
25 SPOOL BALL BEARING 6G498511 15.40
26 FLAME *Discontinued 6J044605 28.60
27 FRONT COVER 6J045201 8.80
28 FRONT COVER SC 6H455407 2.20
29 CLUTCH LEVER 6J101601 12.10
30 CLUTCH LEVER PLATE (R) 6H915601 2.20
31 CLUTCH LEVER PLATE (L) 6H915701 2.20
32 OSCILLATING POST 6H912101 2.20
33 OSCILLATING POST RETAINER 6H704101 2.20
34 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
35 CLUTCH CAM PLATE PIN SP 6H928801 2.20
36 CLUTCH CAM PLATE PIN 6J055201 2.20
37 CLUTCH CAM BALL BEARING 6G431008 15.40
38 CLUTCH CAM BEARING COLLAR 6M518401 7.70
39 KICK LEVER PLATE (A) 6H912301 2.20
40 KICK LEVER PLATE (A) SC 6H294101 2.20
41 KICK LEVER SP 6H450001 2.20
42 KICK LEVER 6H450101 9.90
43 CLUTCH CAM PLATE 6H928701 4.40
44 CLUTCH CAM PLATE SC/W 6H159201 1.10
45 CLUTCH CAM PLATE SC 63522501 2.20
46 KICK LEVER PLATE (B) 6H659101 3.30
47 KICK LEVER PLATE (B) SC 6B032904 2.20
48 CLUTCH PLATE 6H929001 3.30
49 CLUTCH SP 6J055301 2.20
50 PINION + DRIVE GEAR SET 6Z021822 50.60
51 PINION RING 6H160801 2.20
52 PINION BEARING W 6J073501 1.10
53 PINION BALL BEARING *Cannot be ordered 6J019303 45.10
54 PINION BEARING COLLAR *Cannot be ordered 6J724501 7.70
55 RS PLATE *Discontinued 6J075601 71.50
56 MECHANICAL BRAKE KNOB SP 6H160901 2.20
57 PINION SHAFT 6H159601 3.30
58 MECHANICAL BRAKE W (A) 6H161001 1.10
59 MECHANICAL BRAKE W (B) 6B175503 1.10
60 MECHANICAL BRAKE KNOB 6J097401 33.00
61 RS PLATE SC (A) 6G040822 3.30
62 RS PLATE SC (B) 6G040821 3.30
63 GUARD PLATE 6J044503 6.60
64 GUARD PLATE O RING 6H770601 1.10
65 WORM SHAFT RETAINER 63205901 2.20
66 WORM SHAFT W 6B411702 1.10
67 WARM SHAFT COLOR 6G720001 2.20
68 LEVEL WIND 6J176602 50.60
69 PAUL 61214212 3.30
70 PAUL W 63731303 1.10
71 POLE HOLDER NUT 6F402801 2.20
72 WARM SHIELD 6H910801 3.30
73 WORM SHAFT 6H911702 8.80
74 WARM SHAFT COLOR 6G720001 2.20
75 WORM SHAFT GEAR 6H910501 3.30
76 WORM SHAFT GEAR RETAINER 6B339801 2.20
77 GEAR SHAFT W 6G099801 1.10
78 GEAR SHAFT RETAINER 63208002 2.20
79 GEAR SHAFT BALL BEARING 6G538007 15.40
80 GEAR SHAFT PLATE 6H928901 3.30
81 GEAR SHAFT PLATE SC 6E134509 2.20
82 WORM GEAR 6H912701 4.40
83 GEAR SHAFT 6J044701 17.60
84 RATCHET 6H929401 3.30
85 DRIVE GEAR W 6J085101 1.10
86 PINION + DRIVE GEAR SET 6Z021822 50.60
87 DRAG W 6H452602 6.60
88 DRAG DISC W 6H913201 3.30
89 CLUTCH RING 6J377801 8.80
90 ONE WAY CLUTCH 6G819801 20.90
91 CLUTCH RING W 6B553802 1.10
92 HANDLE BALL BEARING 6G431008 15.40
93 HANDLE BEARING W 6F366802 1.10
94 DRAG HOLDER 6F028203 3.30
95 DRAG HOLDER LEAF SP 6F032401 2.20
96 DRAG SP・W 61508901 2.20
97 STAR DRAG W 6H929501 2.20
98 STAR DRAG 6H694103 27.50
99 HANDLE COLOR 6F850401 3.30
100 HANDLE 6J045001 94.60
101 HANDLE NUT 6G779101 6.60
102 HANDLE LOCK PLATE 60403212 3.30
103 HANDLE LOCK PLATE SC 63538301 2.20
104 MECHANICAL BRAKE O-RING 6H157002 1.10
201 HANDLE KNOB W 6H744801 1.10
202 HANDLE KNOB 6H747201 15.40
203 HANDLE KNOB BALL BEARING 6G469007 15.40
204 HANDLE KNOB COLOR 6G720001 2.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6F578803 2.20
