[DAIWA] Genuine Spare Parts for 16 ZILLION TW HLC 1514SH Product code: 00613458 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 16 ZILLION TW HLC 1514SH Product code: 00613458 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$110.11 [Regular Price: US$1.10 - US$157.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

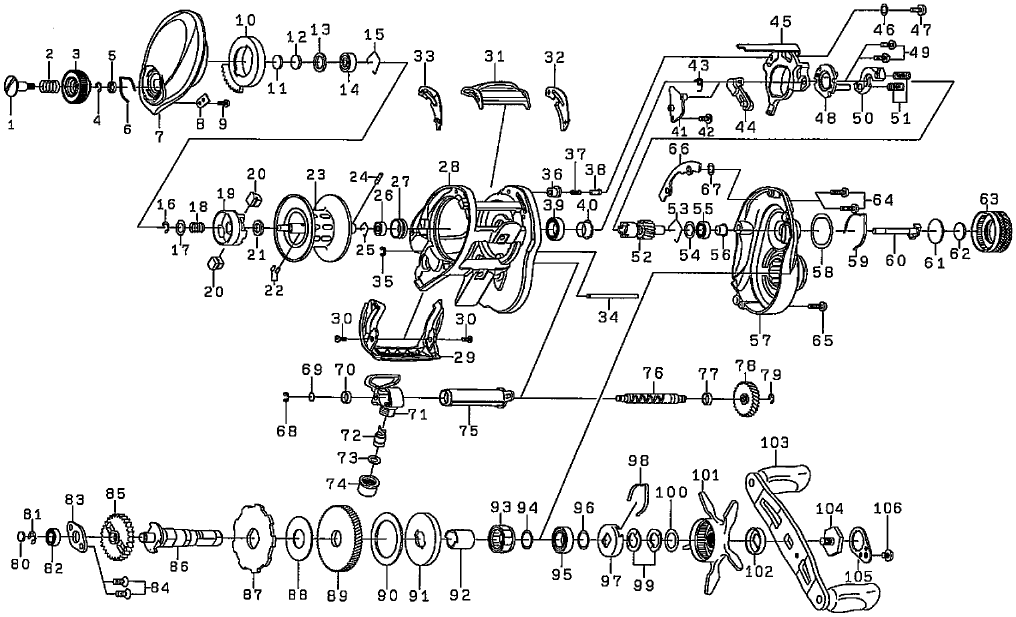

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6J045413 11.00
4 BRAKE DIAL RETAINER (A) 6B339801 2.20
5 BRAKE COLOR DIAL 6F637701 1.10
6 BRAKE LEAF DIAL SP 6H663401 2.20
7 LS PLATE 6J265302 34.10
8 BRAKE DIAL RETAINER (B) 6H915501 2.20
9 BRAKE DIAL RETAINER (B) SC 6G939301 2.20
10 MUG HOLDER 6J045701 40.70
11 LS BEARING W (A) 63757404 1.10
12 LS BEARING W (B) 63757411 1.10
13 LS BEARING W (C) 6G185101 1.10
14 LS BALL BEARING 6G511506 15.40
15 LS BEARING RING 6F032201 2.20
16 SPOOL HOLDER SP PARTYNER 63208202 2.20
17 SPOOL HOLDER SP/W 6G150301 1.10
18 SPOOL HOLDER SP 6J373401 2.20
19 SPOOL HOLDER 6J373301 19.80
20 SPOOL COLOR HOLDER 6G360901 2.20
21 SPOOL HOLDER W 6E096501 1.10
22 SPOOL HOLDER PIN 6H665301 2.20
23 SPOOL (16-27) 6Z022967 157.30
24 SPOOL PIN 6H358801 2.20
25 SPOOL BEARING 6J149501 2.20
26 SPOOL BALL BEARING 6G511506 15.40
27 SPOOL COLLAR BEARING 6H232201 2.20
28 FLAME 6J044608 28.60
29 FRONT COVER 6J045204 8.80
30 FRONT COVER SC 6H455407 2.20
31 CLUTCH LEVER 6J101601 12.10
32 CLUTCH LEVER PLATE (R) 6H915601 2.20
33 CLUTCH LEVER PLATE (L) 6H915701 2.20
34 OSCILLATING POST 6H912101 2.20
35 OSCILLATING POST RETAINER 6H704101 2.20
36 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
37 CLUTCH CAM PLATE PIN SP 6H928801 2.20
38 CLUTCH CAM PLATE PIN 6J055201 2.20
39 CLUTCH CAM BALL BEARING 6G431008 15.40
40 CLUTCH CAM BEARING COLLAR 6M518401 7.70
41 HARDCOVER PLATE (A) 6H912301 2.20
42 HARDCOVER PLATE (A) SC 6H294101 2.20
43 KITSUKUREBA-SP 6H450001 2.20
44 HARDCOVER 6J221401 12.10
45 CLUTCH CAM PLATE 6H928701 4.40
46 CLUTCH CAM PLATE SC/W 6H159201 1.10
47 CLUTCH CAM PLATE SC 63522501 2.20
48 HARDCOVER PLATE (B) 6H659101 3.30
49 HARDCOVER PLATE (B) SC 6B032904 2.20
50 CLUTCH PLATE 6H929001 3.30
51 CLUTCH SP 6J055301 2.20
52 PINION + DRIVE GEAR SET 6Z021819 50.60
53 PINION RING 6H160801 2.20
54 PINION BEARING W 6J073501 1.10
55 PINION BALL BEARING (MAG SHIELD) *Cannot be ordered 6J019303 45.10
56 PINION BEARING COLLAR *Cannot be ordered 6J724501 7.70
57 RS PLATE 6J372701 71.50
58 MECHANICAL BRAKE O-RING 6H157002 1.10
59 MECHANICAL BRAKE KNOB SP 6H160901 2.20
60 PINION SHAFT 6H159601 3.30
61 MECHANICAL BRAKE W (B) 6H161001 1.10
62 MECHANICAL BRAKE W (C) 6B175503 1.10
63 MECHANICAL BRAKE KNOB 6J097404 33.00
64 RS PLATE SC (A) 6G040822 3.30
65 RS PLATE SC (B) 6G040821 3.30
66 GUARD PLATE 6J044505 4.40
67 GUARD PLATE O RING 6H770601 1.10
68 WORM SHAFT RETAINER 63205901 2.20
69 WORM SHAFT W 6B411702 1.10
70 WARM SHAFT COLOR 6G720001 2.20
71 LEVEL WIND 6J176602 50.60
72 PAUL 61214212 3.30
73 PAUL W 63731303 1.10
74 POLE HOLDER NUT 6F402801 2.20
75 WARM SHIELD 6H910801 3.30
76 WORM SHAFT 6H911702 8.80
77 WARM SHAFT COLOR 6G720001 2.20
78 WORM SHAFT GEAR 6H910501 3.30
79 WORM SHAFT GEAR RETAINER 6B339801 2.20
80 GEAR SHAFT W 6G099806 1.10
81 GEAR SHAFT RETAINER 63208002 2.20
82 GEAR SHAFT BALL BEARING 6G538007 15.40
83 GEAR SHAFT PLATE 6H928901 3.30
84 GEAR SHAFT PLATE SC 6E134509 2.20
85 WORM GEAR 6H912701 4.40
86 GEAR SHAFT 6J044701 17.60
87 RATCHET 6H929401 3.30
88 DRIVE GEAR W 6J085101 1.10
89 PINION + DRIVE GEAR SET 6Z021819 50.60
90 DRAG W 6H452602 6.60
91 DRAG DISC W 6H913201 3.30
92 DRAG COLOR 6J377801 8.80
93 ONE WAY CLUTCH 6G819801 20.90
94 CLUTCH RING W 6B553802 1.10
95 HANDLE BALL BEARING 6G431008 15.40
96 HANDLE BEARING W 6F366802 1.10
97 DRAG HOLDER 6F028203 3.30
98 DRAG HOLDER LEAF SP 6F032401 2.20
99 DRAG SP・W 61508901 2.20
100 STAR DRAG W 6H929501 2.20
101 STAR DRAG 6H694105 27.50
102 HANDLE COLOR 6F850401 3.30
103 HANDLE 6J372801 106.70
104 HANDLE NUT 6G779101 6.60
105 HANDLE LOCK PLATE 6H834507 3.30
106 HANDLE LOCK PLATE SC 63538301 2.20
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB SP/W 6H744801 1.10
203 HANDLE KNOB 6J372901 22.00
204 HANDLE KNOB BALL BEARING 6G469007 15.40
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6F578803 2.20
