[Avail] ABU Aluminum Worm Shaft for Ambassadeur 4000-6000 series
![](https://www.hedgehog-studio.co.jp/res/layout018/img/icon_new.gif)
![](https://www.hedgehog-studio.co.jp/res/layout018/img/icon_pickup_en.gif)
Our Selling Price: US$50.05 [Regular Price: US$71.50]

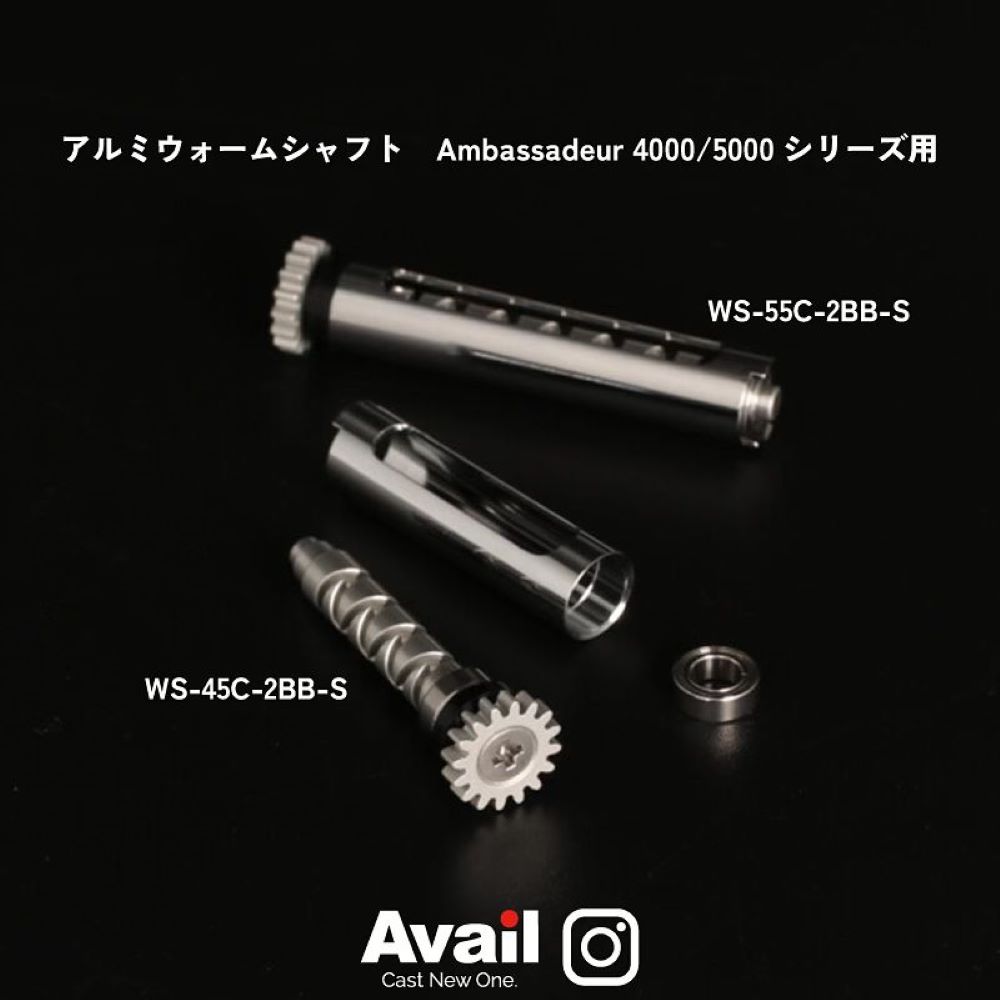

Aluminum Worm Shaft for ABU Ambassadeur 4000-6000 Series
Model Name
WS-45C-2BB-S
WS-55C-2BB-S
WS-65C-2BB-S
Product Introduction
This aluminum worm shaft with bearings can be installed on the ABU Ambassadeur 4000-6000 series (various years).
Featuring a 2-ball bearing design and lightweight materials for each part, it balances improved rotation performance and weight reduction.
This product allows disassembly by securing the "gear," "bearing," and "worm shaft holder" with screws, enhancing maintainability.
Additionally, combining Avail products such as COGWHEEL5152, LVW-SET-55C, ULPG_AMB, and for UC models, CLICK & COG19373, can further improve rotation performance and reduce weight.
These parts are recommended for purchase and installation as a set when replacing the worm shaft.
Types
Aluminum Worm Shaft WS-45C-2BB-S
Aluminum Worm Shaft WS-55C-2BB-S
Aluminum Worm Shaft WS-65C-2BB-S
Specifications
Bearing Size
WS-45C-2BB-S | 7mm×4mm×2.5mm 2 pieces |
WS-55C-2BB-S | 7mm×4mm×2.5mm 2 pieces |
WS-65C-2BB-S | 7mm×4mm×2.5mm 2 pieces |
Weight
WS-45C-2BB-S 3.4g |
純正 4.7g |
WS-45C-2BB-S g |
純正 5.9g |
WS-45C-2BB-S g |
Genuine 6.6g |
- Weight may vary slightly depending on production lots.
- Genuine weight is for reference due to the variety of models.
- Avail worm shaft includes the weight of 2 ball bearings.
Compatible Reels
WS-45C-2BB-S | Compatible with various years of ABU Ambassadeur 4000 series |
WS-55C-2BB-S | Compatible with various years of ABU Ambassadeur 5000 series |
WS-65C-2BB-S | Compatible with various years of ABU Ambassadeur 6000 series |
Installation Method
Disassembly and Assembly Method
Cautions
- When performing maintenance, refer to the images above for the correct orientation of each part.
- A thread-locking adhesive is applied to the product during shipment to prevent loosening. Once removed, the screws may become easier to loosen, so please be cautious.
- When removing screws for maintenance, use a cloth or gloves to loosen the screws. Do the same when reinstalling. Direct contact with the gear parts can cause injury, so please be careful.
- Avoid losing or damaging parts and injuring yourself when installing the purchased product.
*Front (screw side) / Back (bearing side)
*For detailed installation directions, please refer to the installation video.
