[DAIWA] Genuine Spare Parts for 22 ZILLION TW HD 1000XH Product code: 00630132 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 22 ZILLION TW HD 1000XH Product code: 00630132 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$114.73 [Regular Price: US$1.10 - US$163.90]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.36 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5398

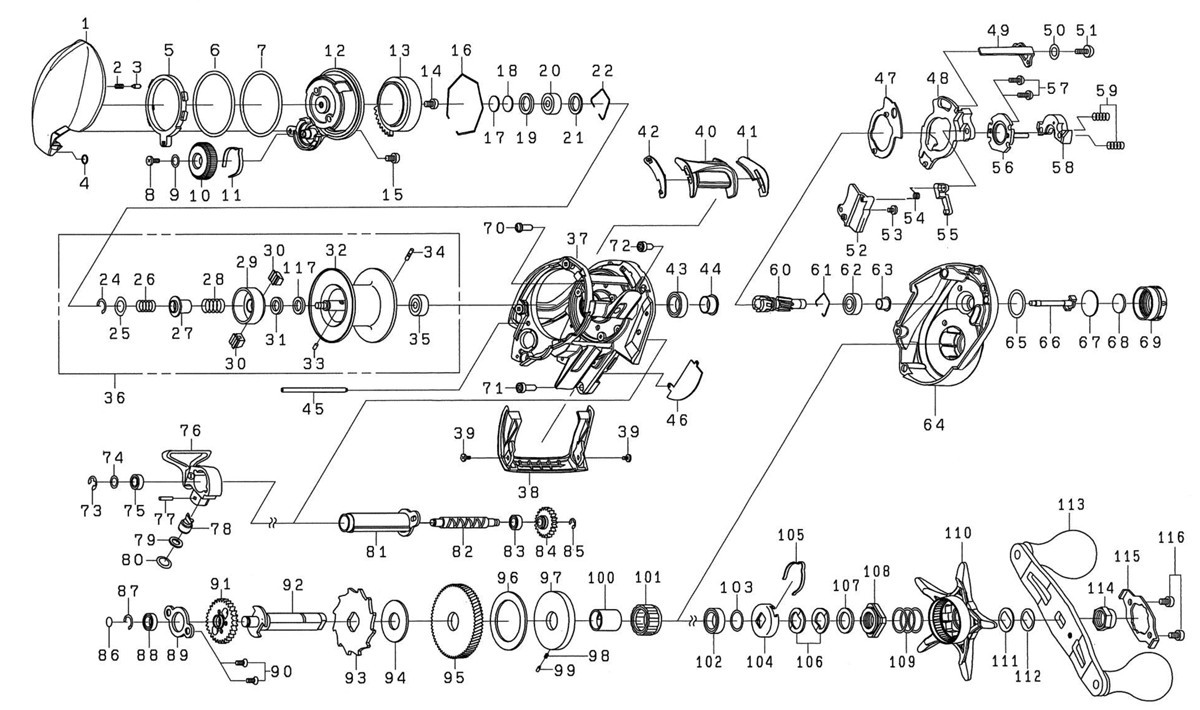

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6M275401 40.70
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 LS PLATE O-RING 6J197901 1.10
5 LEVER PLATE (A) 6M067401 4.40
6 LEVER PLATE (B) 6J286101 2.20
7 LEVER PLATE (C) 6J645201 2.20
8 BRAKE DIAL SC 6G940402 2.20
9 BRAKE DIAL W 6H159201 1.10
10 BRAKE DIAL 6M053602 7.70
11 BRAKE DIAL LEAF SP 6J886201 2.20
12 SET PLATE 6M067201 44.00
13 MAG HOLDER 6M054701 24.20
14 SET PLATE SC (A) 6H666002 2.20
15 SET PLATE SC (B) 6G939303 2.20
16 MAG HOLDER RING 6G757801 2.20
17 LS BEARING W (A) 63757404 1.10
18 LS BEARING W (B) 63757411 1.10
19 LS BEARING W (C) 6G185101 1.10
20 LS BALL BEARING 6G511506 15.40
21 LS BALL BEARING O-RING 6G703201 1.10
22 LS BEARING RING 6F032201 2.20
24 SPOOL HOLDER SP RETAINER 63208002 2.20
25 SPOOL HOLDER SP・W 6J497001 1.10
26 SPOOL HOLDER SP (A) 6M341701 2.20
27 SPOOL HOLDER SP COLLAR 6M299301 3.30
28 SPOOL HOLDER SP (B) 6M381001 2.20
29 SPOOL HOLDER 6M298401 19.80
30 SPOOL HOLDER COLLAR 6M169601 2.20
31 SPOOL HOLDER COLLAR W (A) 6J497002 2.20
33 SPOOL HOLDER PIN 6M169301 2.20
34 SPOOL PIN 6J252301 2.20
35 SPOOL BALL BEARING 6G498511 15.40
36 SPOOL (24-35) 6Z026542 163.90
37 FRAME 6M280901 74.80
38 FRONT COVER 6M041002 12.10
39 FRONT COVER SC 6H531508 2.20
40 CLUTCH LEVER 6M066101 9.90
41 CLUTCH LEVER PLATE (R) 6M065401 2.20
42 CLUTCH LEVER PLATE (L) 6M065501 2.20
43 CLUTCH CAM BALL BEARING 6G431008 15.40
44 CLUTCH CAM BEARING COLLAR 6M518401 7.70
45 OSCILLATING POST 6M041101 2.20
46 RS COVER PLATE 6M065601 2.20
47 CLUTCH CAM PLATE (A) 6M065901 2.20
48 CLUTCH CAM 6M065701 3.30
49 CLUTCH CAM PLATE (B) 6M065801 3.30
50 CLUTCH CAM PLATE (B) W 6M070001 1.10
51 CLUTCH CAM PLATE (B) SC 6B360406 2.20
52 KICK LEVER PLATE (A) 6M066001 3.30
53 KICK LEVER PLATE SC 6H531508 2.20
54 KICK LEVER PLATE SP 6M066301 2.20
55 KICK LEVER PLATE (A) 6J622901 6.60
56 CLUTCH CAM PLATE (C) 6H659101 3.30
57 CLUTCH CAM PLATE SC 6B032904 2.20
58 CLUTCH PLATE 6M157601 3.30
59 CLUTCH SP 6J313901 2.20
60 PINION + DRIVE GEAR SET 6Z026540 56.10
61 PINION RING 6H448401 2.20
62 PINION BALL BEARING 6G538003 15.40
63 PINION BEARING COLLAR 6J724601 9.90
64 RS PLATE 6M275101 100.10
65 MECHANICAL BRAKE O-RING 6J279701 1.10
66 PINION SHAFT 6G931001 3.30
67 MECHANICAL BRAKE W (A) 6H161001 1.10
68 MECHANICAL BRAKE W (B) 6B175503 1.10
69 ZERO ADJUSTER 6J279601 18.70
70 RS PLATE SC (B) 6G040802 2.20
71 RS PLATE SC (A) 6G945811 2.20
72 RS PLATE SC (C) 6G945818 2.20
73 WORM SHAFT RETAINER 63205901 2.20
74 WORM SHAFT W 6B411702 1.10
75 WORM SHAFT BALL BEARING 6G469009 15.40
76 LEVEL WINDING 6M054201 58.30
77 LEVEL WINDING PIN 6J740201 3.30
78 POLE 6J740101 3.30
79 POLE W 6M161301 1.10
80 LEVEL WINDING O-RING 6G252202 1.10
81 WORM SHIELD 6M066601 3.30
82 WORM SHAFT 6J243601 8.80
83 WORM SHAFT BALL BEARING 6G469009 15.40
84 WORM SHAFT GEAR 6M048801 4.40
85 WORMSHAFT GEAR RETAINER 6B339801 2.20
86 GEAR SHAFT W 6G099801 1.10
87 GEAR SHAFT RETAINER 63208002 2.20
88 GEAR SHAFT BALL BEARING 6G466201 15.40
89 GEAR SHAFT PLATE (A) 6J281101 3.30
90 GEAR SHAFT PLATE SC 6G297002 2.20
91 WORM GEAR 6M048601 3.30
92 GEAR SHAFT 6M308401 18.70
93 RATCHET 6H660901 3.30
94 RATCHET W 6E708901 2.20
95 PINION + DRIVE GEAR SET 6Z026540 56.10
96 DRAG W 6H359001 8.80
97 DRIVE COLLAR 6J740501 17.60
98 DRIVE COLLAR SP 6M025201 2.20
99 DRIVE COLLAR PIN 6J566201 2.20
100 CLUTCH RING 6G011401 8.80
101 ONE-WAY CLUTCH 6G819801 20.90
102 HANDLE BALL BEARING 6G431008 15.40
103 HANDLE BALL BEARING W 6B553801 1.10
104 DRAG HOLDER 6F028203 3.30
105 DRAG LEAF SP 6F032401 2.20
106 DRAG SP・W 61508901 2.20
107 STAR DRAG W 6H929501 2.20
108 STAR DRAG NUT 6J141001 7.70
109 STARDRAG SP 6J011901 2.20
110 STAR DRAG 6J673905 30.80
111 HANDLE W (A) 6J102801 1.10
112 HANDLE W (B) 6J101301 3.30
113 HANDLE W (A) 6M275801 118.80
114 HANDLE NUT 6G793309 4.40
115 HANDLE LOCK PLATE 6J677703 4.40
116 HANDLE LOCK PLATE SC 6H257003 2.20
117 SPOOL HOLDER COLLAR W (B) 6E096505 1.10
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB 6J672101 19.80
202 HANDLE KNOB BALL BEARING 6G469007 15.40
203 HANDLE KNOB COLLAR 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP (WITH O-RING) 6Z026543 12.10
206 HANDLE KNOB CAP O-RING 6H100001 1.10
