[DAIWA] Genuine Spare Parts for 07 STEEZ 103H Product code: 00614060 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 07 STEEZ 103H Product code: 00614060 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$103.95 [Regular Price: US$1.10 - US$148.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

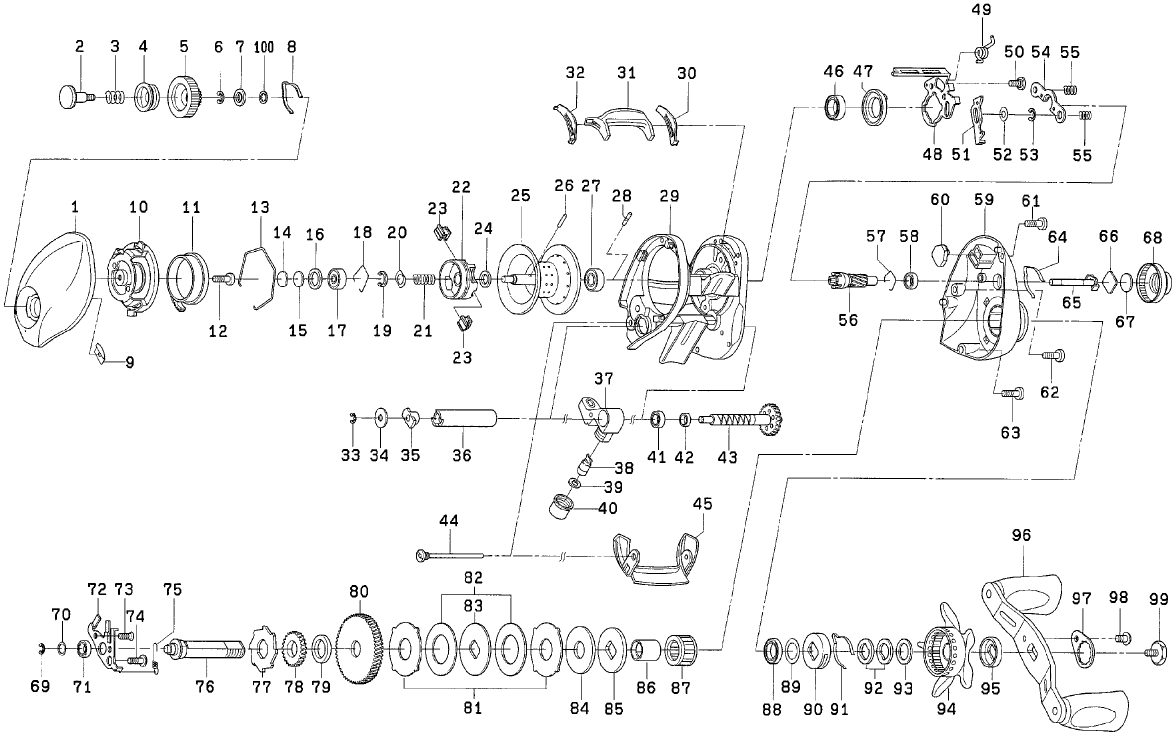

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE *Discontinued 6G757301 34.10
2 BRAKE DIAL SC *Discontinued 6G876601 3.30
3 BRAKE DIAL SP 6E167101 2.20
4 BRAKE DIAL W(A) *Discontinued 6F770704 3.30
5 BRAKE DIAL 6G757401 7.70
6 BRAKE DIAL RITINER (A) 6B339801 2.20
7 BRAKE DIAL COLOR 6F637701 1.10
8 BRAKE DIAL LEAF SP 6F051701 2.20
9 BRAKE DIAL RITINER (B) 6F613401 2.20
10 SET PLATE 6G757001 36.30
11 MAG HOLDER 6G757701 17.60
12 MAG HOLDER SC 63510906 2.20
13 MAG HOLDER RING 6G757801 2.20
14 LS BEARING W (A) 63757404 1.10
15 LS BEARING W (B) 63757411 1.10
16 LS BEARING W (C) 6G185101 1.10
17 LS BALL BEARING 6G511503 8.80
18 LS BEARING RING 6F032201 2.20
19 SPOOL HOLDER RETAINER 63208202 2.20
20 SPOOL HOLDER W 6G150301 1.10
21 SPOOL HOLDER SP 6F737501 2.20
22 SPOOL HOLDER *Discontinued 6G666101 34.10
23 BALANCER *Discontinued 6F737601 2.20
24 SPOOL W 6F574303 1.10
25 SPOOL (19-28) *Discontinued 6Z017768 148.50
26 SPOOL HOLDER PIN 6G361001 2.20
27 SPOOL BALL BEARING 6G498504 8.80
28 SPOOL PIN 6G717501 2.20
29 FRAME *Discontinued 6G754104 78.10
30 CLUTCH LEVER PLATE (R) 6G754301 2.20
31 CLUTCH LEVER 6G754601 9.90
32 CLUTCH LEVER PLATE (L) 6G754401 2.20
33 WATER SHAFT RETAINER 63205901 2.20
34 WORMSHAFT W 6F655501 1.10
35 WORM SHAFT BUSHING 6B715601 2.20
36 WORM SHIELD 6F836502 3.30
37 LEVEL WINDING 6G755701 18.70
38 POLE 61214212 3.30
39 POLE W 63731303 1.10
40 POLE HOLDER NUT 6F402801 2.20
41 WORM SHAFT BALL BEARING 6G466202 8.80
42 WORM SHAFT COLLAR 6G010701 3.30
43 WORM SHAFT 6G418001 15.40
44 FRONT COVER SC (SILVER) 6G358704 4.40
45 FRONT COVER 6G756802 8.80
46 CLUTCH CAM BALL BEARING 6G431004 8.80
47 CLUTCH CAM 6G357101 3.30
48 CLUTCH CAM PLATE 6G754801 3.30
49 CLUTCH CAM SP 6G755301 2.20
50 CLUTCH CAM PLATE SC *Discontinued 6G009701 4.40
51 CLUTCH CLEVERS *Discontinued 6G754901 4.40
52 KITZ CLUTCH CAM RETAINER W 6G539401 1.10
53 KITZ CLUTCH CAM RETURNER 63205901 2.20
54 CLUTCH PLATE 6G357901 2.20
55 CLUTCH SP 6G358001 2.20
56 PINION 6G755601 22.00
57 PINION RING 6E219701 2.20
58 PINION BALL BEARING 6G466202 8.80
59 RS PLATE *Discontinued 6G753801 100.10
60 CLUTCH CAM SP COVER PLATE 6G262301 2.20
61 RS PLATE SC (A) 6G040814 2.20
62 RS PLATE SC (B) 6G040815 2.20
63 RS PLATE SC (C) 6G040801 2.20
64 MECHANICAL BRAKE LEAF SP 6F262701 2.20
65 PINION SHAFT 6G015501 3.30
66 MECHANICAL BRAKE W (A) 6B175401 1.10
67 MECHANICAL BRAKE W (B) 6B175503 1.10
68 MECHANICAL BRAKE KNOB 6G774701 27.50
69 GEAR SHAFT RE-TRIGGER 63205901 2.20
70 GEAR SHAFT W 6G755203 1.10
71 GEAR SHAFT BALL BEARING 6G466202 8.80
72 GEAR SHAFT PLATE *Discontinued 6G755101 2.20
73 GEAR SHAFT PLATE SC (A) 6E134503 2.20
74 GEAR - SHAFT PLATE SC (B) 6G875801 3.30
75 KICK LEVER SP 6G755401 2.20
76 GEAR - SHAFT *Discontinued 6G755001 29.70
77 LATCHET 6G756001 3.30
78 WORMSHAFT GEAR 6G756101 11.00
79 WORMSHAFT GEAR W *Discontinued 6G878301 7.70
80 DRIVE GEAR 6G756201 22.00
81 DRAG GRIP W 6F796102 3.30
82 DRAG W (A) 6G428501 3.30
83 DRAG DISK W (A) 6F796303 3.30
84 DRAG W (B) 6G455801 3.30
85 DRAG DISK W (B) 6B360306 3.30
86 DRAG COLLAR 6G011401 8.80
87 ONE-WAY CLUTCH 6G819801 20.90
88 HANDLE BALL BEARING 6G756301 8.80
89 HANDLE BEARING W 6B553801 1.10
90 DRAG HOLDER 6F028201 2.20
91 DRAG HOLDER LEAF SP 6F032401 2.20
92 DRAG SP-W 61508901 2.20
93 STA-DRAG W 63737810 1.10
94 STA-DRAG *Discontinued 6G775101 35.20
95 HANDLE COLOR 6F850401 3.30
96 HANDLE *Discontinued 6G756601 111.10
97 HANDLE LOCK PLATE 6G779201 3.30
98 HANDLE LOCK PLATE SC 6G835501 2.20
99 HANDLE NUT 6G779101 6.60
100 BRAKE DIAL W (B) 63754101 1.10
101 MECHANICAL BRAKE KNOB W (C) 6F625502 1.10
200 HANDLE KNOB *Discontinued 6F976411 15.40
201 HANDLE KNOB BALL BEARING 6G469002 8.80
202 HANDLE KNOB SC 6B679308 2.20
203 HANDLE KNOB CAP 6F950001 2.20
300 POWER MAG BRAKE SET (R) *Discontinued 114085 67.10
