[DAIWA] Genuine Spare Parts for 07 STEEZ 100SH Product code: 00614064 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 07 STEEZ 100SH Product code: 00614064 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$103.95 [Regular Price: US$1.10 - US$148.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

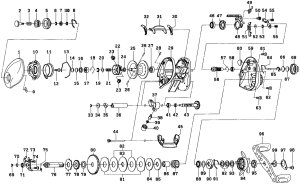

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE *Discontinued 6G757301 34.10
2 BRAKE DIAL SC 6F577901 3.30
3 BRAKE DIAL SP 6E167101 2.20
4 BRAKE DIAL W(A) 6F770705 3.30
5 BRAKE DIAL 6G757401 7.70
6 BRAKE DIAL RITINER (A) 6B339801 2.20
7 BRAKE DIAL COLOR 6F637701 1.10
8 BRAKE DIAL LEAF SP 6F051701 2.20
9 BRAKE DIAL RITINER (B) 6F613401 2.20
10 SET PLATE 6G757001 36.30
11 MAG HOLDER 6G757701 17.60
12 MAG HOLDER SC 63510906 2.20
13 MAG HOLDER RING 6G757801 2.20
14 LS BEARING W (A) 63757404 1.10
15 LS BEARING W (B) 63757411 1.10
16 LS BEARING W (C) 6G185101 1.10
17 LS BALL BEARING 6G511503 8.80
18 LS BEARING RING 6F032201 2.20
19 SPOOL HOLDER RETAINER 63208202 2.20
20 SPOOL HOLDER W 6G150301 1.10
21 SPOOL HOLDER SP *Discontinued 6H029901 2.20
22 SPOOL HOLDER *Discontinued 6H023102 34.10
23 BALANCER *Discontinued 6G954701 2.20
24 SPOOL W 6F574303 1.10
25 SPOOL (19-28) *Discontinued 6Z018300 148.50
26 SPOOL HOLDER PIN 6H022901 2.20
27 SPOOL BALL BEARING 6G498504 8.80
28 SPOOL PIN 6G717501 2.20
29 FRAME *Discontinued 6H146803 78.10
30 CLUTCH LEVER PLATE (R) 6G754301 2.20
31 CLUTCH LEVER 6G754602 9.90
32 CLUTCH LEVER PLATE (L) 6G754401 2.20
33 WATER SHAFT RETAINER 63205901 2.20
34 WORMSHAFT W 6F655501 1.10
35 WORM SHAFT BUSHING 6B715601 2.20
36 WORM SHIELD 6F836502 3.30
37 LEVEL WINDING 6G755701 18.70
38 POLE 61214212 3.30
39 POLE W 63731303 1.10
40 POLE HOLDER NUT 6F402801 2.20
41 WORM SHAFT BALL BEARING 6G466202 8.80
42 WORM SHAFT COLLAR 6G010701 3.30
43 WORM SHAFT 6G418001 15.40
44 FRONT COVER SC (SILVER) 6G358704 4.40
45 FRONT COVER 6G756802 8.80
46 CLUTCH CAM BALL BEARING 6G431004 8.80
47 CLUTCH CAM 6G357101 3.30
48 CLUTCH CAM PLATE *Discontinued 6G754802 4.40
49 CLUTCH CAM SP 6G755301 2.20
50 CLUTCH CAM PLATE SC *Discontinued 6G009701 4.40
51 CLUTCH CLEVERS 6H147101 4.40
52 KITZ CLUTCH CAM RETAINER W 6G539401 1.10
53 KITZ CLUTCH CAM RETURNER 63205901 2.20
54 CLUTCH PLATE 6G357901 2.20
55 CLUTCH SP 6G358001 2.20
56 PINION 6H147301 22.00
57 PINION RING 6E219701 2.20
58 PINION BALL BEARING 6G466202 8.80
59 RS PLATE *Discontinued 6H247501 100.10
60 CLUTCH CAM SP COVER PLATE 6G262301 2.20
61 RS PLATE SC (A) 6G040814 2.20
62 RS PLATE SC (B) 6G040815 2.20
63 RS PLATE SC (C) 6G040801 2.20
64 MECHANICAL BRAKE LEAF SP 6F262701 2.20
65 PINION SHAFT 6G015501 3.30
66 MECHANICAL BRAKE W (A) 6B175401 1.10
67 MECHANICAL BRAKE W (B) 6B175503 1.10
68 MECHANICAL BRAKE KNOB *Discontinued 6G774702 27.50
69 GEAR SHAFT RE-TRIGGER 63205901 2.20
70 GEAR SHAFT W 6G755203 1.10
71 GEAR SHAFT BALL BEARING 6G466202 8.80
72 GEAR SHAFT PLATE 6H147201 2.20
73 GEAR SHAFT PLATE SC (A) 6E134503 2.20
74 GEAR - SHAFT PLATE SC (B) 6G875801 3.30
75 KICK LEVER SP 6J048501 2.20
76 GEAR - SHAFT *Discontinued 6G755001 29.70
77 LATCHET 6G756001 3.30
78 WORMSHAFT GEAR 6G756101 11.00
79 WORMSHAFT GEAR W *Discontinued 6G878301 7.70
80 DRIVE GEAR 6H147401 22.00
81 DRAG GRIP W *Discontinued 6G791302 3.30
82 DRAG W (A) 6G791402 7.70
83 DRAG DISK W (A) *Discontinued 6F904903 3.30
84 DRAG W (B) *Discontinued 6H033001 7.70
85 DRAG DISK W (B) 6B360306 3.30
86 DRAG COLLAR 6G011401 8.80
87 ONE-WAY CLUTCH 6G819801 20.90
88 HANDLE BALL BEARING 6G756301 8.80
89 HANDLE BEARING W 6B553801 1.10
90 DRAG HOLDER 6F028201 2.20
91 DRAG HOLDER LEAF SP 6F032401 2.20
92 DRAG SP-W 61508901 2.20
93 STA-DRAG W 63737810 1.10
94 STA-DRAG *Discontinued 6G775101 35.20
95 HANDLE COLOR 6F850401 3.30
96 HANDLE *Discontinued 6G964801 111.10
97 HANDLE LOCK PLATE *Not available 60403206 3.30
98 HANDLE LOCK PLATE SC 6G835501 2.20
99 HANDLE NUT 6G779101 6.60
100 BRAKE DIAL W (B) 63754104 1.10
101 MECHANICAL BRAKE KNOB W (C) 6F625502 1.10
200 HANDLE KNOB W (W) 6B411703 1.10
201 HANDLE KNOB *Discontinued 6F976411 15.40
202 HANDLE KNOB BALL BEARING 6G469002 8.80
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6F950001 2.20
300 POWER MAG BRAKE SET (R) *Discontinued 114085 67.10
