[SHIMANO] Genuine Spare Parts for 23 POWER AERO TD Thick thread specification Product Code: 046093 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 23 POWER AERO TD Thick thread specification Product Code: 046093 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$87.01 [Regular Price: US$1.10 - US$124.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

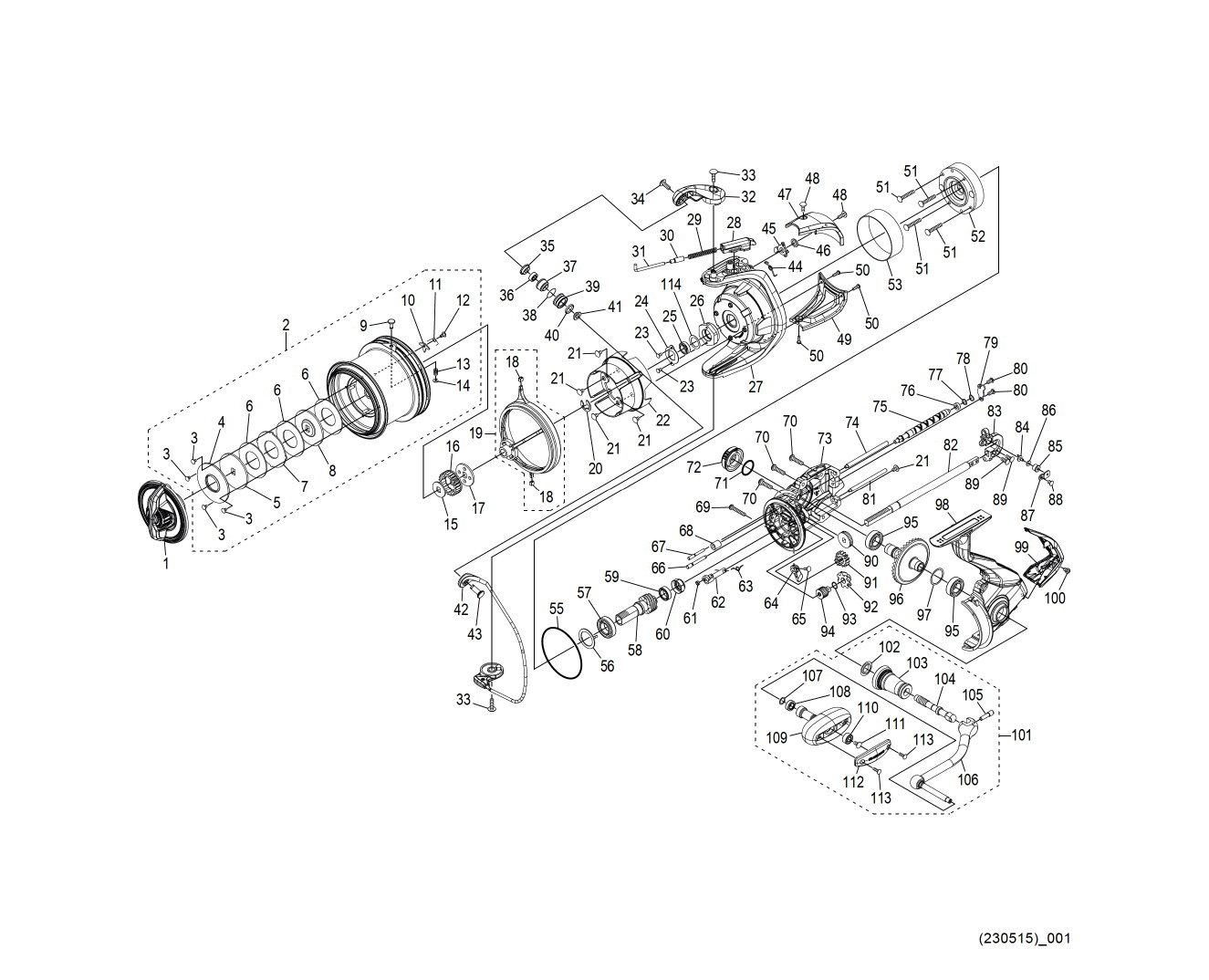

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 141QW DRAG KNOB ASSEMBLY 73.15
2 142ZV SPOOL ASSEMBLY 121.00
3 10MPF FIXING BOLT 1.10
4 10LQ7 WATERPROOF SEAL 3.85
5 10QBR OVAL WASHER 6.05
6 141KC DRAG WASHER 2.75
7 102XF EARED WASHER 3.85
8 10BB5 OVAL WASHER 2.75
9 10QS6 THREAD STOPPER GUIDE 1.65
10 1038F SPOOL PIN 1.10
11 10SCU SPOOL PIN SPRING 1.10
12 10SDU FIXING BOLT 1.65
13 10LQ3 THREAD RETAINER SPRING 1.10
14 105NC E-TYPE RETAINING RING 2 1.10
15 100Y0 SPOOL WASHER 2.20
16 10TQC SPOOL HOLDER (A) 1.65
17 10J01 SPOOL HOLDER (B) 1.65
18 10MLW THREAD FALL PREVENTION CLICK DEADENING RUBBER 1.10
19 141QY COLLAR ASSEMBLY TO PREVENT FALLING OF THREAD 11.55
20 105RZ E-TYPE RETAINING RING 6 1.10
21 103L6 FIXING BOLT 1.10
22 13YAF ROTOR FLANGE 15.40
23 10S65 FIXING BOLT 1.10
24 13Y95 RETAINER 1.10
25 13Y96 ROTOR BEARING COLLAR 1.65
26 13Y97 ROTOR NUT 9.35
27 13YAG ROTOR ASSEMBLY 38.50
28 13Y99 ARM SPRING GUIDE (B) 1.65
29 105LH ARM CAM SPRING 1.65
30 13Y9A ARM SPRING GUIDE (A) COLLAR 2.20
31 105YW ARM SPRING GUIDE (A) 1.65
32 13YAH ARM CAM 9.35
33 10SBW FIXING BOLT 1.10
34 103HP FIXING BOLT 1.10
35 10RAR BEARING COLLAR 3.85
36 104VS BALL BEARING (4 X 8 X 3) 13.75
37 10RAQ BUSH 6.05
38 1015S O-RING 1.65
39 10RB6 LINE ROLLER 9.35
40 10RAS SPACER 2.20
41 10STM ARM FIXING SHAFT COLLAR 3.85
42 13YAJ BAIL ASSEMBLY 60.50
43 10RPF ARM FIXING SHAFT 6.60
44 106PM INTERNAL GERI LEVER SPRING 1.10
45 1085E INTERNAL GERI LEVER 2.75
46 13Y9D WASHER 1.10
47 13YAK ARM CAM SPRING COVER 8.25
48 10SBU FIXING BOLT 1.10
49 13YAL BALE MOUNTING COVER 8.25
50 10SBV FIXING BOLT 1.10
51 13Y9E FIXING BOLT 1.10
52 13Y9F ROLLER CLUTCH ASSEMBLY 17.05
53 106HS ROLLER CLUTCH RING 2.75
55 10MLS O-RING 2.75
56 106MU FRONT FLANGE BEARING WASHER 1.65
57 104PV BALL BEARING (10 X 19 X 5) 13.75
58 13YA8 PINION GEAR 30.80
59 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
60 10SF4 BUSH 1.65
61 106F8 STOPPER CAM RING 1.10
62 104YQ STOPPER CAM 3.85
63 105B2 CLICK SPRING 1.10
64 13YAM STOPPER LEVER 6.05
65 10MTH FIXING BOLT 1.10
66 13Y9J INTERMEDIATE GEAR SHAFT 4.95
67 13Y9K WORM SHAFT GEAR FIXING SHAFT 2.75
68 106GV CROSS GEAR BUSH (FRONT) 3.85
69 10T0U FIXING BOLT 1.10
70 10PVP FIXING BOLT 1.65
71 10LAF O-RING 1.65
72 13YAN HANDLE SCREW CAP 6.60
73 13YAP LEGLESS BODY 34.10
74 13Y9N SLIDER GUIDE (B) 4.95
75 13Y9P WORM SHAFT 9.35
76 106CM CROSS GEAR BUSH (FRONT) 1.65
77 100XZ WASHER 2.20
78 10TK0 WASHER 1.65
79 13Y9Q WORM SHAFT COVER 1.65
80 103KS FIXING BOLT 1.10
81 13Y9R SLIDER GUIDE 6.05
82 141K8 MAIN SHAFT 20.90
83 13Y9T SLIDER 6.05
84 106V1 CROSS GEAR PIN 2.75
85 10JXP WORM SHAFT PIN COLLAR 3.85
86 10SP1 WASHER 6.05
87 13Y9U WORM SHAFT PIN PRESSING PLATE 1.10
88 103LG FIXING BOLT 1.10
89 10ML9 FIXING BOLT 1.10
90 10RYK WORM SHAFT GEAR 6.05
91 10H4C INTERMEDIATE GEAR (C) 1.65
92 13MPN INTERMEDIATE GEAR (LARGE) 9.35
93 10160 BENDING WASHER 1.10
94 13YA9 INTERMEDIATE GEAR (SMALL) 8.80
95 10BGD BALL BEARING (9 X 17 X 5) 13.75
96 13YAA DRIVE GEAR 26.40
97 10SP4 BENDING WASHER 7.70
98 142ZW LID ASSEMBLY 102.85
99 13YAR BODY GUARD 11.00
100 13YAS FIXING BOLT 1.10
101 141R0 HANDLE ASSEMBLY 124.30
102 10PV5 SEAL 2.75
103 13YAU HANDLE SHAFT FLANGE 26.40
104 45425 HANDLE SHAFT 9.35
105 10PV1 HANDLE SHAFT BOLT 2.75
106 101S7 HANDLE SHANK ASSEMBLY 41.80
107 104FH WASHER 2.20
108 105BP BALL BEARING (5 X 9 X 3) 13.75
109 141R1 HANDLE KNOB ASSEMBLY 27.50
110 10KX2 BALL BEARING (4 X 9 X 4) 13.75
111 103E9 FIXING BOLT 1.10
112 108X4 HANDLE KNOB NAMEPLATE 2.75
113 103NH FIXING BOLT 1.10
114 145FK WASHER 1.10
BNKI 13YVX EXPLODED VIEW (ACCESSORIES) 1.65
MH01 141KL NAMEPLATE ON BACK OF LEG 2.75
TRST 13PMX INSTRUCTION MANUAL (ACCESSORY) 1.65
