[SHIMANO] Genuine Spare Parts for 24 Barchetta PREMIUM 151DHXG LEFT Product code: 047328 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

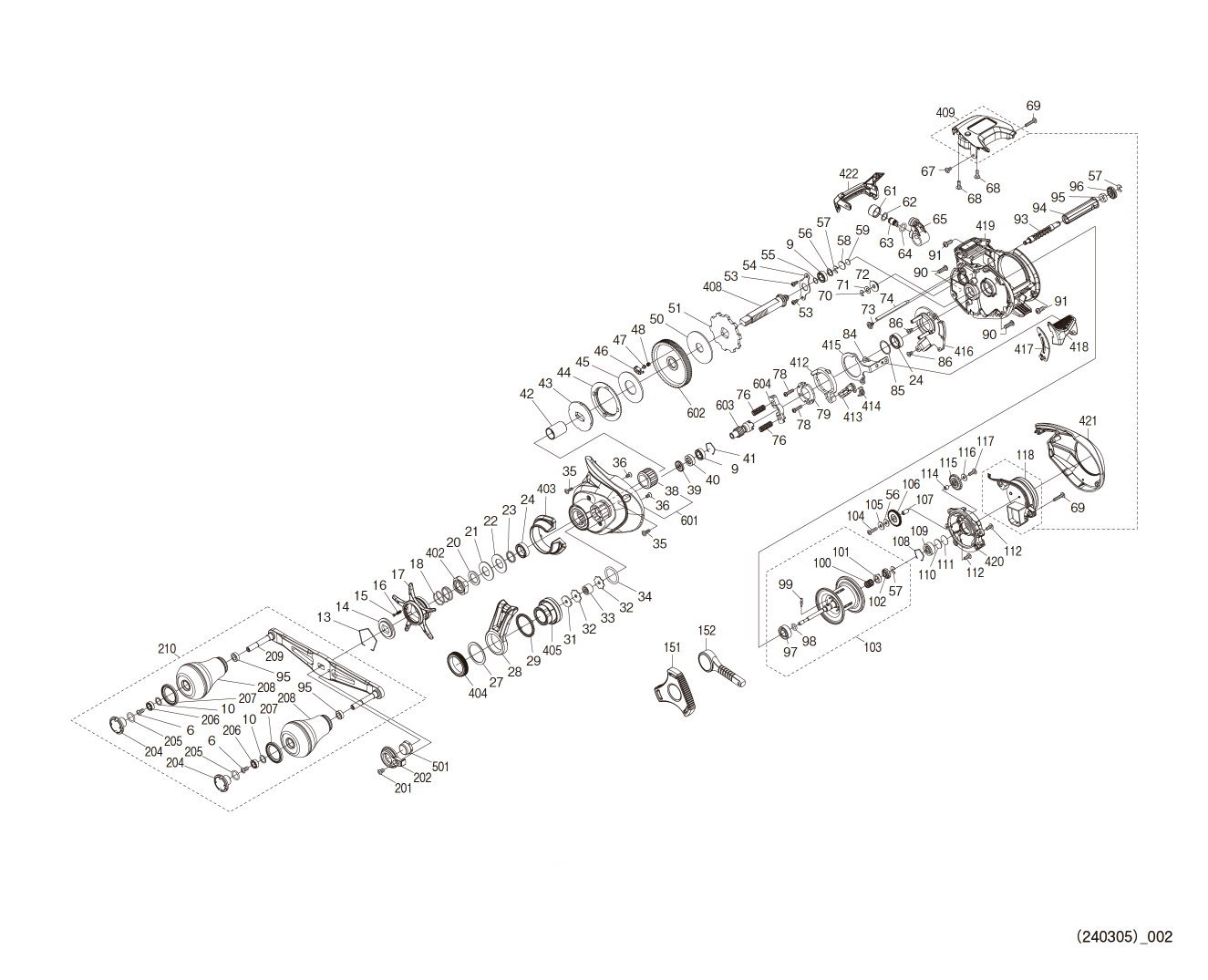

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "38 / ROLLER CLUTCH" and "99 /SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
6	10LFA	FIXING BOLT	1.10
9	105BP	BALL BEARING (5 X 9 X 3)	13.75
10	104FH	WASHER	2.20
13	10KXW	STAR DRAG CLICK PLATE RETAINER	1.65
14	10J26	STAR DRAG CLICK PLATE	1.65
15	10MFC	CLICK PIN	1.65
16	10BT2	CLICK SPRING	1.65
18	10A70	STAR DRAG SPRING	2.75
20	10J1N	STAR DRAG SPACER	1.65
21	10EW3	DISK SPRING (DB8L)	1.65
22	109LA	SARABUNE (DB-8H)	1.65
23	100SE	WASHER	1.10
24	10EX8	BALL BEARING (8×12×3.5)	13.75
27	13B6Z	WASHER	1.65
28	143C2	FALL LEVER	5.50
29	13UD3	LOCK SPACER B	1.65
31	13UES	MECHANICAL BRAKE WASHER	1.10
32	13UET	MECHANICAL BRAKE WASHER	3.85
33	13SVY	ROLLER CLUTCH	16.50
34	10R22	O-RING	1.65
35	10LCY	FIXING BOLT	1.10
36	10LA3	FIXING BOLT	1.65
38	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
39	13UEW	ROLLER CLUTCH SEAL	3.85
40	101V3	BEARING SPACER	2.75
41	1057X	STOPPER TO HOLD THE ROLLER CLUTCH IN PLACE	1.65
42	143C5	ROLLER CLUTCH INNER TUBE	9.90
43	143C6	STAR DRAG PLATE	4.95
44	143C8	DRAG CLICK SYRATCHET	1.65
45	10CM0	STAR DRAG WASHER	6.05
46	143CC	DRAG SPRING HOLDER	1.10
47	143C9	CLICK PIN	1.65
48	143CA	CLICK SPRING	1.10
50	1023U	STAR DRAG WASHER	6.05
51	100BJ	STOPPER GEAR	3.85
53	10E23	FIXING BOLT	1.10
54	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
55	108WU	O-RING	1.65
56	10G6D	WASHER	1.65
57	105NK	E-TYPE RETAINING RING 2.5	1.10
58	143CG	METAL SPACER	1.10
59	14079	RUBBER SPACER	1.65
61	10FJW	LEVEL WINDING RECEIVER	1.65
62	10CFU	WASHER	1.10
63	10BHQ	WORM SHAFT PIN	2.75
64	108WQ	O-RING	1.65
65	13GEE	LEVEL WINDING ASSEMBLY	9.35
67	10LCQ	FIXING BOLT	1.10
68	10LCM	FIXING BOLT	1.10
69	13JWV	FIXING BOLT	1.65
70	105NC	E TYPE RETAINING RING 2	1.10
71	10FJZ	WASHER	1.10
72	100G7	LEVEL WINDING GUARD BUSH	1.10
73	1022E	FIXING BOLT	1.65
74	13B5P	LEVEL-WIND GUIDE	1.65
76	100U9	CLUTCH YOKE SPRING	1.10
78	10LV0	FIXING BOLT	1.10
79	100US	CLUTCH CAM PUSH PLATE	3.85
84	10LF4	FIXING BOLT	1.10
85	10190	WASHER	1.65
86	100S4	FIXING BOLT	1.10
90	10LFP	FIXING BOLT	1.10
91	13JQQ	FIXING BOLT	1.65
93	13S61	WORM SHAFT	11.55
94	13S6D	LEVEL WINDING PIPE	1.10
95	10PXZ	HANDLE KNOB BUSHING	1.65
96	13S5T	WORM SHAFT GEAR	2.75
97	105CA	BALL BEARING (5 X 11 X 4)	13.75
98	10TM7	O-RING	1.65
99	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
100	13SVD	SPOOL SHAFT SPRING	1.65
101	10MCY	SPOOL SHAFT CAM	1.65
102	10JAH	WORM SHAFT GEAR	3.85
103	145TQ	SPOOL ASSEMBLY	66.00
104	13JXR	FIXING BOLT	1.65
105	146B4	WASHER	1.10
106	13RTV	WORM SHAFT GEAR	1.65
107	13SGH	WORM SHAFT GEAR (B) HOLDER B	2.75
108	1054D	BEARING STOPPER	1.10
109	105C2	BALL BEARING (3×10×4)	13.75
110	13Z0G	SPOOL SHAFT ATTACHMENT B	1.10
111	13PE6	WASHER	1.65
112	10LCF	FIXING BOLT	1.10
114	13RU2	WORM SHAFT GEAR (B) HOLDER	1.65
115	13S5R	WORM SHAFT GEAR	2.75
116	1019V	WORM SHAFT GEAR (B) WASHER	1.65
117	10LCP	FIXING BOLT	1.65
118	143CM	BATTERY COVER ASSEMBLY	7.70
151	143CQ	BATTERY CAP WRENCH	2.75
152	10NC0	REEL WRENCH	1.65
201	10DV5	FIXING BOLT	1.10
202	10SSK	RETAINER	3.85
204	143BW	HANDLE CAP	1.10
205	10LAA	O-RING	1.10
206	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
207	10S9X	WASHER	1.65
208	13E8V	HANDLE KNOB ASSEMBLY	11.00
209	1470M	HANDLE SHAFT	24.20
210	145TT	HANDLE ASSEMBLY	93.50
211	145TX	STAR DRAG	19.80
402	10A3U	STAR DRAG FIXING NUT	3.85
403	140ZG	BODY A NAMEPLATE	3.85
404	13UDA	LOCK RING	1.65
405	145TZ	MECHANICAL BRAKE KNOB	22.00
408	143H2	DRIVE GEAR SHAFT	11.00
409	14713	COUNTER UNIT ASSEMBLY	176.00
412	100W0	CLUTCH CAM	2.75
413	10MQM	CLUTCH CLAW	3.85
414	10TMC	CLUTCH CLAW SPRING	1.65
415	143H4	CLUTCH PLATE	2.20
416	10R5C	BODY A SEAT	3.30
417	143H5	CLUTCH LEVER RECEIVER (B)	1.10
418	13H6G	CLUTCH LEVER ASSEMBLY	6.05
419	14716	FRAME ASSEMBLY	57.20
420	13RUC	CLUTCH LEVER SEAT (B)	6.05
421	145U4	BODY B	11.55
422	143H3	LEVEL WIND GUARD	4.40
501	1007V	HANDLE FIXING NUT	6.05
601	1471D	BODY A ASSEMBLY	60.50
602	145QK	DRIVE GEAR	28.60
603	10S6M	PINION GEAR	11.55
604	10TFA	CLUTCH YOKE	1.65
