[DAIWA] Genuine Spare Parts for 23 SALTIST PE SV TW 80 PE SPECIAL 80XH Product code: 00631032 **Back-order (Shipping in 3-4 weeks after receiving order)
[DAIWA] Genuine Spare Parts for 23 SALTIST PE SV TW 80 PE SPECIAL 80XH Product code: 00631032 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$71.61 [Regular Price: US$1.10 - US$102.30]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

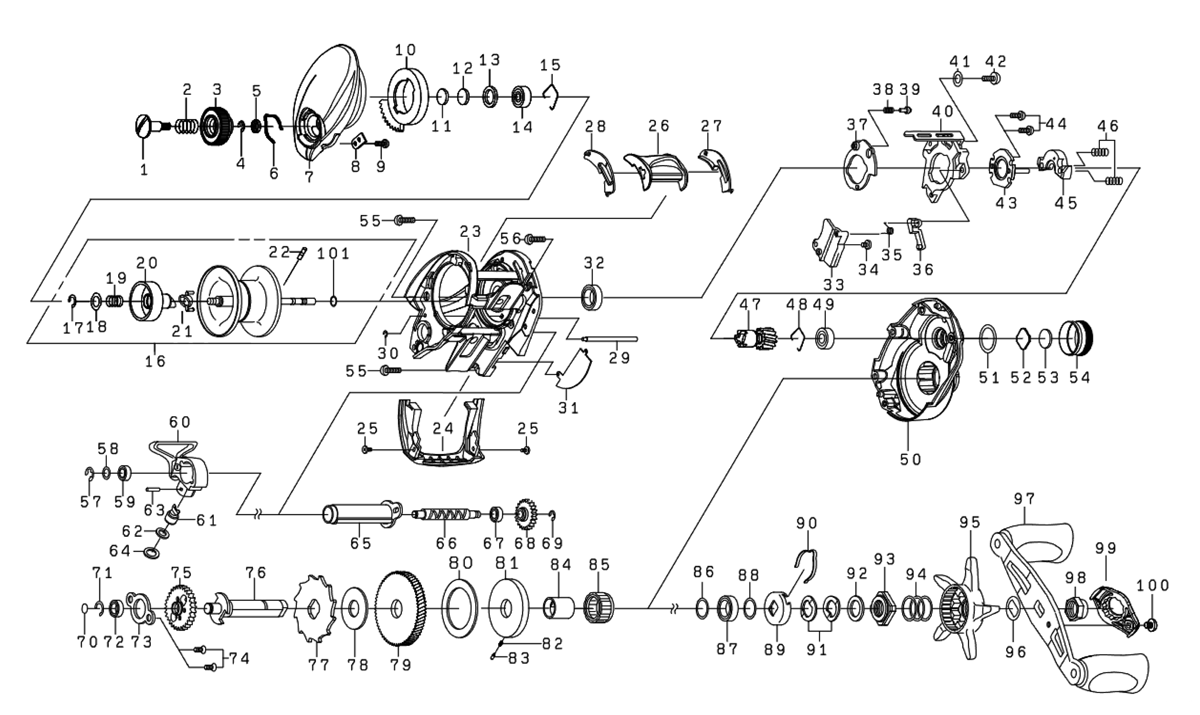

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | BRAKE DIAL SC | 6J716301 | 3.30 |
2 | BRAKE DIAL SP | 6E167101 | 2.20 |
3 | BRAKE DIAL | 6M160703 | 8.80 |
4 | BRAKE DIAL RETAINER (A) | 6B339801 | 2.20 |
5 | BRAKE DIAL COLLAR | 6F637701 | 1.10 |
6 | BRAKE DIAL LEAF SP | 6H663401 | 2.20 |
7 | LS PLATE | 6M553501 | 25.30 |
8 | BRAKE DIAL RETAINER (B) | 6J843301 | 2.20 |
9 | BRAKE DIAL RETAINER (B) SC | 6G939301 | 2.20 |
10 | MAG HOLDER | 6M162401 | 8.80 |
11 | LS BEARING W (A) | 63757404 | 1.10 |
12 | LS BEARING W (B) | 63757411 | 1.10 |
13 | LS BEARING W (C) | 6G185101 | 1.10 |
14 | LS BALL BEARING | 6G511506 | 15.40 |
15 | LS BEARING RING | 6F032201 | 2.20 |
16 | SPOOL (17-24, 101) | 6Z027499 | 102.30 |
17 | SPOOL HOLDER SP RETAINER | 63208202 | 2.20 |
18 | SPOOL HOLDER SP・W | 6J497001 | 1.10 |
19 | SPOOL HOLDER SP | 6H862301 | 2.20 |
20 | SPOOL HOLDER | 6J432501 | 19.80 |
21 | SPOOL HOLDER COLLAR | 6J473201 | 2.20 |
22 | SPOOL PIN | 6J339401 | 2.20 |
23 | FRAME *Not available | 6M212301 | 34.10 |
24 | FRONT COVER | 6J956612 | 7.70 |
25 | FRONT COVER SC | 6H531508 | 2.20 |
26 | CLUTCH LEVER | 6M162301 | 3.30 |
27 | CLUTCH LEVER PLATE (R) *Not available | 6J955501 | 2.20 |
28 | CLUTCH LEVER PLATE (L) | 6J955601 | 2.20 |
29 | OSCILLATING POST | 6M134001 | 2.20 |
30 | OSCILLATING POST RETAINER | 6H704101 | 2.20 |
31 | RS COVER PLATE | 6J972901 | 2.20 |
32 | CLUTCH CAM BALL BEARING | 6B861705 | 8.80 |
33 | KICK LEVER PLATE (A) | 6J739101 | 3.30 |
34 | KICK LEVER PLATE (A) SC | 6H531508 | 2.20 |
35 | KICK LEVER PLATE SP | 6J915201 | 2.20 |
36 | KICK LEVER | 6J622901 | 6.60 |
37 | CLUTCH CAM PLATE | 6J739001 | 2.20 |
38 | CLUTCH CAM PLATE SP | 6H928801 | 2.20 |
39 | CLUTCH CAM PLATE PIN | 6J055201 | 2.20 |
40 | CLUTCH CAM | 6J972601 | 9.90 |
41 | CLUTCH CAM PLATE SC・W | 6M070001 | 1.10 |
42 | CLUTCH CAM PLATE SC | 6B360406 | 2.20 |
43 | KICK LEVER PLATE (B) | 6H659101 | 3.30 |
44 | KICK LEVER PLATE (B) SC | 6B032904 | 2.20 |
45 | CLUTCH PLATE | 6H929001 | 3.30 |
46 | CLUTCH SP | 6J313901 | 2.20 |
47 | PINION + DRIVE GEAR SET | 6Z027496 | 50.60 |
48 | PINION RING | 6H448401 | 2.20 |
49 | PINION BALL BEARING | 6G431104 | 15.40 |
50 | RS PLATE *Not available | 6M553401 | 25.30 |
51 | MECHANICAL BRAKE O-RING | 6J279701 | 1.10 |
52 | MECHANICAL BRAKE W (A) | 6J692001 | 1.10 |
53 | MECHANICAL BRAKE W (B) | 6B175503 | 1.10 |
54 | MECHANICAL BRAKE KNOB | 6M315203 | 8.80 |
55 | RS PLATE SC (A) | 6G945818 | 2.20 |
56 | RS PLATE SC (B) | 6G040814 | 2.20 |
57 | WORM SHAFT RETAINER | 63205901 | 2.20 |
58 | WORM SHAFT W | 6B411702 | 1.10 |
59 | WORM SHAFT COLLAR | 6G720001 | 2.20 |
60 | LEVEL WINDING | 6M470501 | 46.20 |
61 | POLE | 6J740101 | 3.30 |
62 | POLE W | 6M161301 | 1.10 |
63 | LEVEL WINDING PIN | 6J740201 | 3.30 |
64 | LEVEL WINDING O-RING | 6G252202 | 1.10 |
65 | WORM SHIELD | 6J740001 | 3.30 |
66 | WORM SHAFT | 6M042401 | 8.80 |
67 | WORM SHAFT COLLAR | 6G720001 | 2.20 |
68 | WORM SHAFT GEAR | 6J693901 | 3.30 |
69 | WORM SHAFT GEAR RETAINER | 6B339801 | 2.20 |
70 | GEAR SHAFT W | 6G099801 | 1.10 |
71 | GEAR SHAFT RETAINER | 63208002 | 2.20 |
72 | GEAR SHAFT BALL BEARING | 6G466202 | 8.80 |
73 | GEAR SHAFT PLATE | 6J693701 | 3.30 |
74 | GEAR SHAFT PLATE SC | 6G297002 | 2.20 |
75 | WORM GEARS | 6J693601 | 4.40 |
76 | GEAR SHAFTS | 6J956201 | 17.60 |
77 | RATCHET | 6H660901 | 3.30 |
78 | RATCHET W | 63746605 | 1.10 |
79 | PINION + DRIVE GEAR SET | 6Z027496 | 50.60 |
80 | DRAG W | 6H359002 | 6.60 |
81 | DRAG COLLAR | 6J740501 | 17.60 |
82 | DRAG COLLAR SP | 6M025201 | 2.20 |
83 | DRAG COLLAR PIN | 6J566201 | 2.20 |
84 | CLUTCH RING | 6J327701 | 8.80 |
85 | ONE-WAY CLUTCH | 6J540401 | 20.90 |
86 | HANDLE BEARING W (A) | 6B553803 | 1.10 |
87 | HANDLE BALL BEARING | 6B861705 | 8.80 |
88 | HANDLE BEARING W (B) | 6B553803 | 1.10 |
89 | DRAG HOLDER | 6F028203 | 3.30 |
90 | DRAG HOLDER LEAF SP | 6F032401 | 2.20 |
91 | DRAG SP・W | 61508901 | 2.20 |
92 | STAR DRAG W | 6H929501 | 2.20 |
93 | DRAG NUT | 6J141001 | 7.70 |
94 | DRAG NUT SP | 6J011901 | 2.20 |
95 | STAR DRAG | 6J140001 | 20.90 |
96 | HANDLE W | 6M422101 | 1.10 |
97 | HANDLE W | 6M555801 | 99.00 |
98 | HANDLE NUT | 6G793330 | 7.70 |
99 | HANDLE CAP | 6J958401 | 7.70 |
100 | HANDLE CAP SC | 6G835503 | 2.20 |
101 | SPOOL O-RING | 6M426701 | 1.10 |
300 | HANDLE KNOB W | 6B411703 | 1.10 |
301 | HANDLE KNOB BALL BEARING | 6G469005 | 8.80 |
302 | HANDLE KNOB COLLAR | 6G720001 | 2.20 |
303 | HANDLE KNOB | 6Q344801 | 17.60 |
304 | HANDLE KNOB SC | 6B679308 | 2.20 |
305 | HANDLE KNOB CAP | 6Q345003 | 2.20 |
