[SHIMANO] Genuine Spare Parts for 24 GRAPPLER PREMIUM 150XG Product code: 047182 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

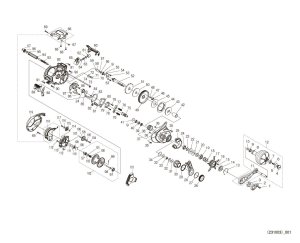

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "38 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10R1Q	FIXING BOLT	1.65
2	10QL6	RETAINER	3.85
3	13V37	HANDLE FIXING NUT	6.05
4	13AYU	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	10LFA	FIXING BOLT	1.10
7	10KX2	BALL BEARING (4 X 9 X 4)	13.75
8	13E8C	HANDLE KNOB	56.10
9	105BP	BALL BEARING (5X9X3)	13.75
10	104FH	WASHER	2.20
11	146AZ	HANDLE SHAFT ASSEMBLY	56.10
12	145ED	HANDLE ASSEMBLY	112.20
13	10KXW	STAR DRAG CLICK PLATE RETAINER	1.65
14	10J26	STAR DRAG CLICK PLATE	1.65
15	10MFC	CLICK PIN	1.65
16	10BT2	CLICK SPRING	1.65
17	145EK	STAR DRAG	19.80
18	10A70	STAR DRAG SPRING	2.75
19	10A3T	STAR DRAG FIXING NUT	3.85
20	10J1N	STAR DRAG SPACER	1.65
21	10EW3	DISK SPRING (DB8L)	1.65
22	109LA	DOWEL SPRING (DB-8H)	1.65
23	100SE	WASHER	1.10
24	10EX8	BALL BEARING (8X12X3.5)	13.75
25	143C1	BODY A NAMEPLATE	3.85
26	13UD5	LOCK RING	2.75
27	13B6Z	WASHER	1.65
28	145EF	FALL LEVER	5.50
29	13UD3	LOCK SPACER B	1.65
30	145EG	MECHANICAL BRAKE KNOB	22.00
31	13UES	MECHANICAL BRAKE WASHER	1.10
32	13UET	MECHANICAL BRAKE WASHER	3.85
33	13SVY	ROLLER CLUTCH	16.50
34	10R22	O-RING	1.65
35	10LCY	FIXING BOLT	1.10
36	10LA3	FIXING BOLT	1.65
37	146B2	BODY A ASSEMBLY	60.50
38	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
39	13UEW	ROLLER CLUTCH SEAL	3.85
40	101V3	BEARING SPACER	2.75
41	1057X	STOPPER TO STOP THE ROLLER CLUTCH FROM BEING PULLED OUT	1.65
42	143C5	ROLLER CLUTCH INNER TUBE	9.90
43	143C6	STAR DRAG PLATE	4.95
44	143C8	DRAG CLICK SYRATCHET	1.65
45	10CM0	STAR DRAG WASHER	6.05
46	143CC	DRAG SPRING HOLDER	1.10
47	143C9	CLICK PIN	1.65
48	143CA	CLICK SPRING	1.10
49	145EL	DRIVE GEAR	28.60
50	1023U	STAR DRAG WASHER	6.05
51	100BJ	STOPPER GEAR	3.85
52	143CF	DRIVE GEAR SHAFT	11.00
53	10E23	FIXING BOLT	1.10
54	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
55	108WU	O-RING	1.65
56	10G6D	WASHER	1.65
57	105NK	E-TYPE RETAINING RING 2.5	1.10
58	143CG	METAL SPACER	1.10
59	14079	RUBBER SPACER	1.65
60	145EP	LEVEL WINDING GUARD	4.40
61	10FJW	LEVEL WINDING RECEIVER	1.65
62	10CFU	WASHER	1.10
63	10BHQ	WORM SHAFT PIN	2.75
64	108WQ	O-RING	1.65
65	13GEE	LEVEL WINDING ASSEMBLY	9.35
66	146B3	COUNTER UNIT ASSEMBLY	176.00
67	10LCQ	FIXING BOLT	1.10
68	10LCM	FIXING BOLT	1.10
69	13JWV	FIXING BOLT	1.65
70	105NC	E TYPE RETAINING RING 2	1.10
71	10FJZ	WASHER	1.10
72	100G7	LEVEL WINDING GUARD BUSH	1.10
73	1022E	FIXING BOLT	1.65
74	13B5P	LEVEL-WIND GUIDE	1.65
75	10TBT	PINION GEAR	11.55
76	100U9	CLUTCH YOKE SPRING	1.10
77	100UH	CLUTCH YOKE	1.65
78	10LV0	FIXING BOLT	1.10
79	100US	CLUTCH CAM PUSH PLATE	3.85
80	100UK	CLUTCH CAM	2.75
81	10MME	CLUTCH CLAW	3.85
82	10R1H	CLUTCH CLAW SPRING	1.65
83	143CJ	CLUTCH PLATE	2.20
84	10LF4	FIXING BOLT	1.10
85	10190	CLUTCH WASHER	1.65
86	100S4	FIXING BOLT	1.10
87	10R56	BODY A SEAT	3.30
88	143CK	CLUTCH LEVER RECEIVER (B)	1.10
89	13H6H	CLUTCH LEVER ASSEMBLY	6.05
90	10LFP	FIXING BOLT	1.10
91	13JQQ	FIXING BOLT	1.65
92	146HZ	FRAME ASSEMBLY	57.20
93	13S61	WORM SHAFT	11.55
94	13S6D	LEVEL WINDING PIPE	1.10
95	10PXZ	HANDLE KNOB BUSHING	1.65
96	13S5T	WORM SHAFT GEAR	2.75
97	105CA	BALL BEARING (5 X 11 X 4)	13.75
98	10TM7	O-RING	1.65
99	10MD0	SPOOL CLUTCH PIN	1.65
100	13SVD	SPOOL SHAFT SPRING	1.65
101	10MCY	SPOOL SHAFT CAM	1.65
102	10JAH	WORM SHAFT GEAR	3.85
103	145ES	SPOOL ASSEMBLY	66.00
104	13JXR	FIXING BOLT	1.65
105	146B4	WASHER	1.10
106	13RTV	WORM SHAFT GEAR	1.65
107	13SGH	WORM SHAFT GEAR (B) HOLDER B	2.75
108	1054D	BEARING STOPPER	1.10
109	105C2	BALL BEARING (3X10X4)	13.75
110	13Z0G	SPOOL SHAFT ATTACHMENT B	1.10
111	13PE6	WASHER	1.65
112	10LCF	FIXING BOLT	1.10
113	13RUA	BODY B BEARING	6.05
114	13RU2	WORM SHAFT GEAR (B) HOLDER	1.65
115	13S5R	WORM SHAFT GEAR	2.75
116	1019V	WORM SHAFT GEAR (B) WASHER	1.65
117	10LCP	FIXING BOLT	1.65
118	143CM	BATTERY COVER ASSEMBLY	7.70
119	145EU	MAIN BODY B	11.55
151	143CQ	BATTERY CAP WRENCH	2.75
