[DAIWA] Genuine Spare Parts for 23 AIRITY ST SF2000SS-P Product code: 00061242 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 23 AIRITY ST SF2000SS-P Product code: 00061242 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$101.64 [Regular Price: US$1.10 - US$145.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

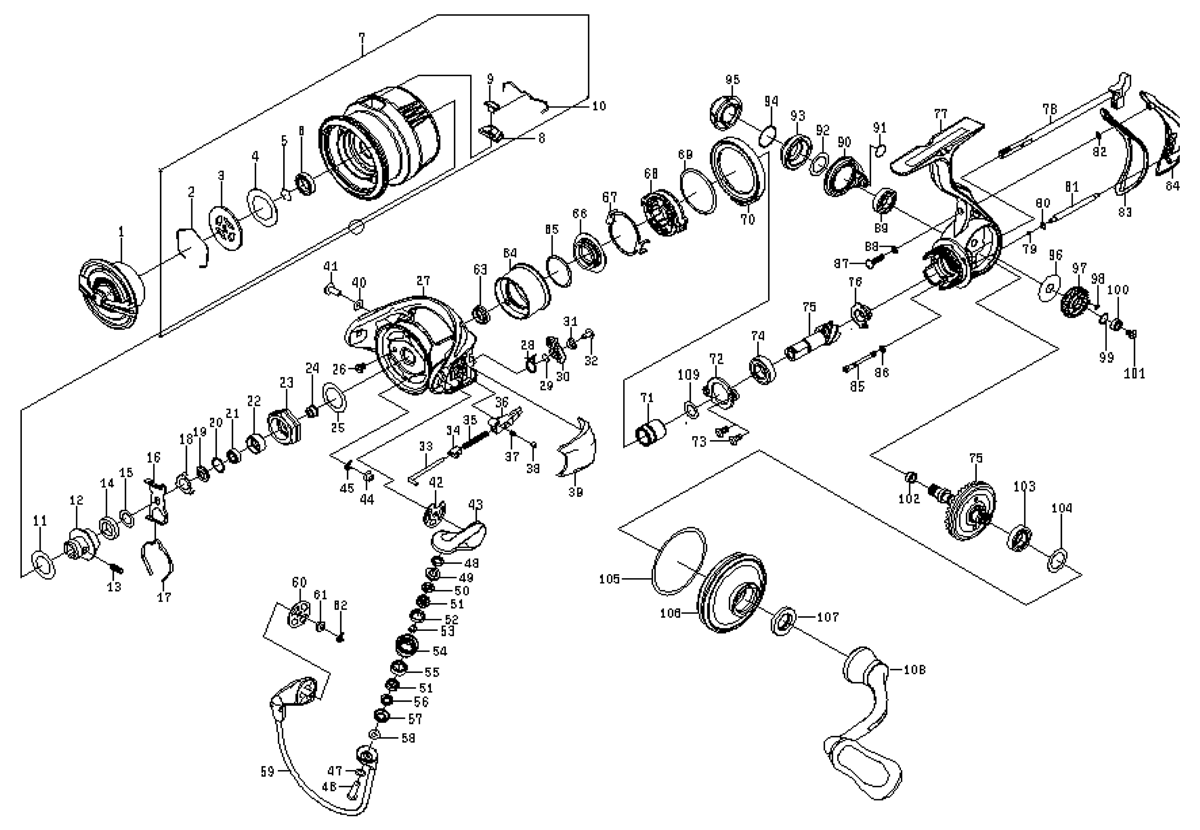

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 6M406301 36.30
2 DRAG RINGS 6J556701 2.20
3 DRAG DISK W 6M306301 2.20
4 DRAG W (1 piece) 6M358901 6.60
5 SPOOL BEARING RING 6B358702 2.20
6 SPOOL BALL BEARING 6G212503 15.40
7 SPOOL (2-10) 6M605101 145.20
8 LINE STOPPER PLATE 6J563601 2.20
9 LINE STOPPER 6J558001 2.20
10 LINE STOPPER SP 6J314801 2.20
11 SPOOL METAL W 6J546301 1.10
12 SPOOL METAL 6M305901 9.90
13 SPOOL METAL SC 6J558201 2.20
14 SPOOL METAL COLLAR 6H624801 2.20
15 SPOOL W 6M422001 1.10
16 CLICK HOLDER *Cannot be ordered 6M305801 2.20
17 CLICK LEAF SP 6H416101 2.20
18 ROTOR NUT PLATE 6G471501 2.20
19 ROTOR NUT PACKING 6M305701 2.20
20 ROTOR NUT BEARING W 63755202 1.10
21 ROTOR NUT BALL BEARING 6H959603 8.80
22 ROTOR NUT BEARING COLLAR 6J690101 4.40
23 ROTOR NUT 6J305201 8.80
24 ROTOR NUT COLLAR 6M305401 3.30
25 ROTOR NUT W 63727602 1.10
26 ROTOR NUT SC 6H022701 2.20
27 ROTOR *Cannot be ordered 6M405901 67.10
28 KICK LEVER SP 6M217901 2.20
29 KICK LEVER W 6M194601 1.10
30 KICK LEVER 6M218001 8.80
31 KICK LEVER COLLAR 6M196401 2.20
32 KICK LEVER SC 6H022702 2.20
33 ARM LEVER SHAFT 6M194901 2.20
34 ARM LEVER SHAFT COLLAR 6M195001 3.30
35 ARM LEVER SP 6J304801 2.20
36 ARM LEVER SHAFT HOLDER 6M218201 2.20
37 ARM LEVER SHAFT HOLDER SP 6M195301 2.20
38 ARM LEVER SHAFT HOLDER PIN 6M195401 2.20
39 ARM LEVER COVER 6M218401 7.70
40 ARM LEVER COVER SC/W 6G256401 1.10
41 ARM LEVER COVER SC 6M355601 2.20
42 ARM LEVER PLATE 6M195901 2.20
43 ARM LEVER *Cannot be ordered 6M218302 15.40
44 ARM LEVER COLLAR 6M195801 2.20
45 ARM LEVER RETAINER 6B339801 2.20
46 ARM LEVER SC 6M196803 3.30
47 ARM LEVER SC・W 6M291901 1.10
48 ROLLER W (A) 6F897101 1.10
49 ROLLER PACKING 6J736201 1.10
50 ROLLER COLLAR (A) 6J530401 2.20
51 ROLLER BALL BEARING 6J256702 15.40
52 ROLLER COLLAR (B) 6J530501 3.30
53 ROLLER COLLAR (C) 6J256301 2.20
54 LINE ROLLER *Cannot be ordered 6M196701 8.80
55 ROLLER COLLAR (D) 6M305301 5.50
56 ROLLER COLLAR (E) 6J530401 2.20
57 ROLLER PACKING 6J736201 1.10
58 ROLLER W (B) 63754101 1.10
59 BAIL *Cannot be ordered 6M218501 72.60
60 BALE HOLDER PLATE 6M196501 2.20
61 BALE HOLDER COLLAR 6M195801 2.20
62 BAIL HOLDER RETAINER 6B339801 2.20
63 SHIELD COLLAR (A) 6M586801 3.30
64 SHIELD CAP 6M305202 12.10
65 SHIELD CAP O-RING 6M379901 1.10
66 SHIELD COLLAR (B) 6M586601 6.60
67 ONE-WAY CLUTCH PLATE *Cannot be ordered 6M238101 3.30
68 ONE-WAY CLUTCH *Cannot be ordered 6M086301 18.70
69 ROTOR BRAKE COLLAR O-RING 6M379801 1.10
70 ROTOR BRAKE COLLAR 6M305001 3.30
71 CLUTCH RING *Cannot be ordered 6M093001 7.70
72 PINION BEARING PLATE 6M304401 2.20
73 PINION BEARING PLATE SC 6J552203 2.20
74 PINION BALL BEARING 6H739704 8.80
75 PINION + DRIVE GEAR SET *Cannot be ordered 6Z027015 88.00
76 PINION COLLAR *Cannot be ordered 6M304301 3.30
77 BODY *Cannot be ordered 6M305501 114.40
78 MAIN SHAFT *Cannot be ordered 6M304002 36.30
79 OSCILLATING POST O-RING 6G683301 1.10
80 OSCILLATING POST W 6G712401 1.10
81 OSCILLATING POST *Cannot be ordered 6M304601 2.20
82 REAR CAP W 6G315302 1.10
83 REAR CAP PACKING *Cannot be ordered 6M304701 4.40
84 REAR CAP *Cannot be ordered 6M304801 15.40
85 REAR CAP SC(A) *Cannot be ordered 6M305101 3.30
86 REAR CAP SC (A) W 6J718501 1.10
87 SC(B) LEAR CAP 6J553605 2.20
88 REAR CAP SC (B) W 6G315301 1.10
89 DRIVE BALL BEARING (A) 6G818903 15.40
90 SET PLATE 6M372202 30.80
91 SET PLATE O-RING 6G318301 1.10
92 DRIVE BEARING (A) W 6J555501 1.10
93 DRIVE BEARING (A) COVER *Cannot be ordered 6J552807 24.20
94 HANDLE CAP O-RING 6G399702 1.10
95 HANDLE CAP 6M198101 6.60
96 OSCILLATING GEAR W 6M372901 1.10
97 OSCILLATING GEAR *Cannot be ordered 6M303801 9.90
98 OSCILLATING GEAR O-RING 6G898301 1.10
99 OSCILLATING GEAR BEARING W 6M448101 1.10
100 OSCILLATING GEAR BALL BEARING 6J256703 8.80
101 OSCILLATING GEAR SC 6H066901 2.20
102 DRIVE GEAR BEARING 6M348101 2.20
103 DRIVE BALL BEARING (B) 6G818903 15.40
104 DRIVE BALL BEARING (B) W 6G317506 1.10
105 ENGINE PLATE O-RING 6M379701 1.10
106 ENGINE PLATE *Cannot be ordered 6M372102 48.40
107 HANDLE PACKING 6H866201 3.30
108 HANDLE 6M406401 106.70
109 CLUTCH RING W 6E154802 1.10
200 HANDLE KNOB SP-W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469007 15.40
203 HANDLE KNOB 6J850001 15.40
204 HANDLE KNOB SC 6G752603 3.30
