[SHIMANO] Genuine Spare Parts for 24 EXSENCE BB 4000MXG Product Code: 047236 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 EXSENCE BB 4000MXG Product Code: 047236 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$47.36 [Regular Price: US$1.10 - US$67.65]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

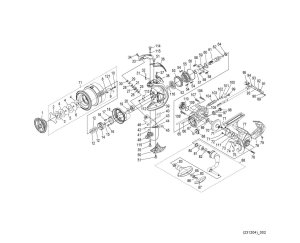

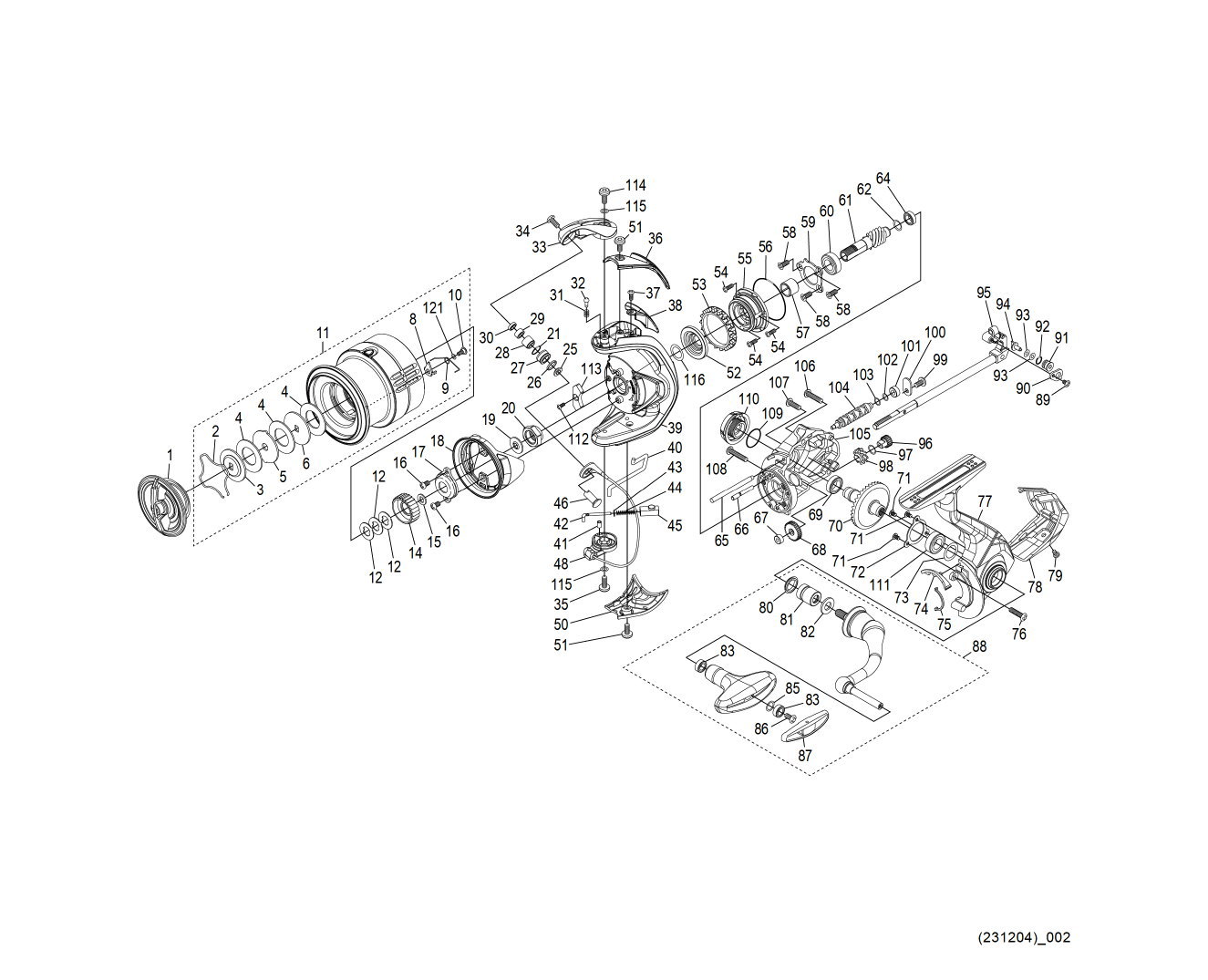

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 145DH DRAG KNOB ASSEMBLY 15.40
2 10B8N STOPPER SPRING 1.65
3 10QBT OVAL WASHER 1.65
4 102ZG DRAG WASHER 1.65
5 102ZD EAR WASHERS 1.65
6 10BCE OVAL WASHER 1.65
8 145MY SPOOL PINS 1.65
9 13K61 OTOIDE SHIBANE 1.65
10 10T5Y FIXING BOLT 1.65
11 145E5 SPOOL ASSEMBLY 66.00
12 10BXN SPOOL WASHER SET 1.10
14 103MU SPOOL HOLDER (A) 1.65
15 10J04 SPOOL WASHER SET (B) 1.65
16 103GW FIXING BOLT 1.65
17 1076N RETAINER 2.75
18 145DZ ROTOR FLANGE 4.40
19 10DY6 ROTOR BEARING SEAL 1.65
20 101VM ROTOR NUT 2.75
21 1009E O-RING 1.65
25 10TJM LINE ROLLER BEARING COLLAR 2.75
26 10RFZ LINE ROLLER SPACER 1.65
27 1009A LINE ROLLER 6.05
28 1009K LINE ROLLER BUSHING 1.65
29 104VX BALL BEARING (4 X 7 X 2.5) 13.75
30 10E44 LINE ROLLER COLLAR 2.75
31 10HE7 CLICK SPRING 1.65
32 106ZC CLICK PIN 1.65
33 145D8 ARM CAM 4.40
34 10PMH FIXING BOLT 1.65
35 10TLM FIXING BOLT 1.65
36 145DE ARM CAM SPRING COVER 7.70
37 103KS FIXING BOLT 1.10
38 10RS3 BALANCER 2.75
39 145DW ROTOR 12.10
40 10DY7 INTERNAL GERI LEVER 2.75
41 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
42 10SAN ARM SPRING GUIDE (A) 3.85
43 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
44 10RC7 ARM CAM SPRING 1.65
45 107AB ARM CAM SPRING SEAT 2.75
46 10TPC ARM FIXING SHAFT 6.05
48 1469C BAIL ASSEMBLY 30.25
50 145DC BAIL MOUNTING BRACKET COVER 7.70
51 101CC FIXING BOLT 1.65
52 101D5 ROTOR COLLAR 9.35
53 10QXQ FRICTION RING 2.75
54 100WT FIXING BOLT 1.65
55 10S2L ROLLER CLUTCH ASSEMBLY 12.65
56 1009Z O-RING 1.65
57 1009Y ROLLER CLUTCH INNER 3.85
58 100WY FIXING BOLT 1.65
59 10DWD BEARING PUSH PLATE 1.65
60 10E7A BALL BEARING (7X14X5) 7.15
61 10TCZ PINION GEAR 13.20
62 10E37 WASHER 1.65
64 10K5Y BALL BEARING (6X10X3) 8.25
65 10DYF SLIDE GUIDE (A) 1.65
66 10DYJ INTERMEDIATE GEAR SHAFT 3.85
67 1009G WORM SHAFT BUSH 1.65
68 10074 WORM SHAFT GEAR 9.35
69 107FA BALL BEARING (7X11X3) 7.15
70 100Y1 DRIVE GEAR 17.05
71 100UL FIXING BOLT 1.65
72 100F9 BEARING PUSH PLATE 1.65
73 101AY BEARING WASHER 2.20
74 1017Y INNER GERI CONTACT 1.65
75 1009W COVER FLANGE SEAL 2.75
76 10S44 FIXING BOLT 1.65
77 1469E COVER ASSEMBLY 20.90
78 13YMP BODY GUARD 11.00
79 10RX2 FIXING BOLT 1.65
80 10PXV HANDLE SHAFT SEAL 2.75
81 10DYA HANDLE SHAFT FLANGE (B) 6.05
82 100RR HANDLE WASHER 1.65
83 10PXZ HANDLE KNOB BUSH 1.65
85 104FH HANDLE KNOB BUSHING 2.20
86 10LFA FIXING BOLT 1.10
87 10S3U HANDLE CAP 3.85
88 145DM HANDLE ASSEMBLIES 67.65
89 10LCT FIXING BOLT 1.65
90 1010D WORM SHAFT PIN PUSH PLATE 1.65
91 1010C WORM SHAFT PIN COLLAR 1.65
92 100WX O-RING 1.65
93 1070D WASHER 1.10
94 106VJ WORM SHAFT PIN 3.85
95 101PR MAIN SHAFT ASSEMBLY 5.50
96 10SM7 INTERMEDIATE GEAR (S) 8.25
97 10TBA WASHER 1.65
98 1006V INTERMEDIATE GEAR (L) 9.35
99 10QG5 FIXING BOLT 1.10
100 10S7C WORM SHAFT COVER 1.65
101 1009C WORM SHAFT BUSHING 1.65
102 10ECK WASHER 1.10
103 10K98 WASHER 1.10
104 10DYB WORM SHAFT 6.05
105 145DJ BODY 18.70
106 10DWX FIXING BOLT 1.65
107 10LZ4 FIXING BOLT 1.10
108 10M2L FIXING BOLT 1.10
109 108WH O-RING 1.65
110 13YMD HANDLE SCREW CAP 5.50
111 107AT BALL BEARING (7X13X4) 7.15
112 101H6 FIXING BOLT 1.65
113 10SJN BALANCER 2.75
114 10TM6 FIXING BOLT 1.65
115 10K96 WASHER 1.65
116 10JDE SLIDER WASHER (7X10X0.3) 1.10
121 13PKP WASHER (7X10X0.3) 1.65
MH01 14292 NAMEPLATE ON BACK OF LEG 2.75
