[SHIMANO] Genuine Spare Parts for 24 Scorpion MD 201XG LEFT Product code: 046925 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

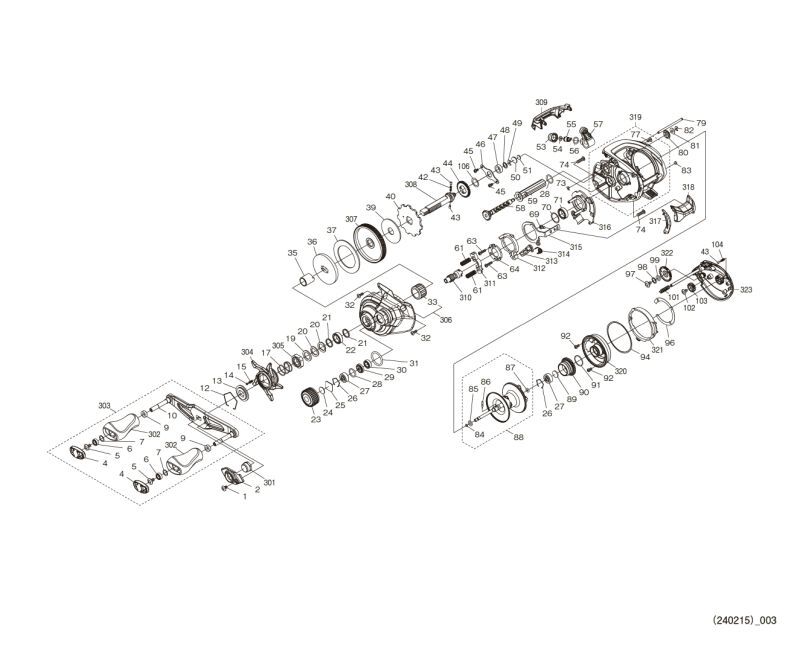

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", "86 /SPOOL CLUTCH PIN", "BRKS /BRAKE SHOE S" and "BST1 /BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXING BOLT	110
2	144EC	RETAINER	385
4	10SS2	HANDLE CAP	110
5	10LFA	FIXING BOLT	110
6	104VX	BALL BEARING (4X 7X 2.5)	1375
7	104FH	WASHER	220
9	10PXZ	HANDLE KNOB BUSHING	165
10	145G4	HANDLE SHAFT ASSEMBLY	2255
12	10KXW	STAR DRAG CLICK PLATE RETAINER	165
13	10J26	STAR DRAG CLICK PLATE	165
14	10MFC	CLICK PIN	165
15	10BT2	CLICK SPRING	165
17	10A70	STAR DRAG SPRING	275
19	10J1P	STAR DRAG SPACER	275
20	109F5	DRIVE GEAR WASHER	165
21	100SE	WASHER	110
22	105BK	BALL BEARING (8 X 12 X 3.5)	1375
23	13U1N	MECHANICAL BRAKE KNOB	935
24	10896	MECHANICAL BRAKE WASHER	110
25	1085F	MECHANICAL BRAKE WASHER	110
26	1054D	BEARING PULL-OUT STOPPER	110
27	105C0	BALL BEARING (3X 10X 4)	1375
28	101GT	O-RING	165
29	100BL	BEARING SPACER	165
30	105BP	BALL BEARING (5X 9X 3)	1375
31	108WK	O-RING SM14	165
32	10LCY	FIXING BOLT	110
33	1005E	ROLLER CLUTCH *Cannot be ordered	1705
35	100BM	ROLLER CLUTCH INNER TUBE	605
36	100BK	STAR DRAG PLATE	275
37	10SSF	STAR DRAG WASHER	1155
39	1023U	STAR DRAG WASHER	605
40	13YNT	STOPPER GEAR	605
42	10JDY	SPRING FOR WORM SHAFT GEAR	165
43	10HJG	WORM SHAFT GEAR PINS	165
44	101K8	WORM SHAFT GEAR	385
45	10S3Y	FIXING BOLT	110
46	109T1	DRIVE GEAR SHAFT FIXING PLATE	275
47	10DQF	DRIVE GEAR SHAFT BUSHING	165
48	10C47	MAIN GEAR SHAFT WASHER	110
49	105NK	E TYPE STOP RING 2.5	110
50	143CG	METAL SPACER	110
51	14079	RUBBER SPACER	165
53	10FJB	LEVEL WINDING RECEIVER	165
54	10CFU	WORMSHAFT WASHER	110
55	10BHQ	WORM SHAFT PIN	275
56	108WQ	O-RING	165
57	10R51	LEVEL WINDING ASSEMBLY	330
58	144EG	WORM SHAFT	165
59	13YNV	LEVEL-WIND PIPE	165
61	100U9	CLUTCH YOKE SPRING	110
63	10LV0	FIXING BOLT	110
64	100US	CLUTCH CAM PUSH PLATE	385
69	10559	FIXING BOLT	165
70	10190	WASHER	165
71	105BK	BALL BEARING (8X 12X 3.5)	1375
73	105NB	E TYPE STOP RING 1.5	110
74	100UV	FIXING BOLT	110
77	10E8N	FIXING BOLT	110
79	10E2G	LEVEL-WIND GUIDE	165
80	100G7	LEVEL-WIND GUARD BUSHING	110
81	10FJZ	WASHER	110
82	105NC	E TYPE STOP RING 2	110
83	108PY	FRAME TALLY WASHER	165
84	100BH	O-RING	110
85	10TM7	O-RING	165
86	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	165
87	10EZ7	O-RING	110
88	141JA	SPOOL ASSEMBLY	8250
89	10EX5	SPOOL SHAFT CONTACT TALLY B	110
90	101DR	BRAKE PIPE GEAR	935
91	100GW	O RING	165
92	10L1Q	FIXING BOLT	110
94	140UF	WASHER	110
96	144EL	SEAT METAL	110
97	103LE	FIXING BOLT	110
98	10G6D	WASHER	165
99	108WS	O-RING 4X 6	110
101	10KNH	DAMPER SPRING	165
102	103L7	FIXING BOLT	110
103	10CLF	INTERMEDIATE GEAR	165
104	10GQZ	CLICK SPRING	110
106	10GR3	WASHER (7X10)	110
301	13V30	HANDLE FIXING NUT	275
302	10EBH	HANDLE KNOB	1155
303	141JJ	HANDLE ASSEMBLY	6765
304	144ND	STAR DRAG	1650
305	10A3U	STAR DRAG FIXING NUT	385
306	145G0	BODY A SET	3630
307	10EBM	DRIVE GEAR	2255
308	144NE	DRIVE GEAR SHAFT	1155
309	144NF	LEVEL WINDING GUARD	440
310	10EBD	PINION GEAR	1155
311	10TFA	CLUTCH YOKE	165
312	100W0	CLUTCH CAM	275
313	1003W	CLUTCH CLAW ASSEMBLY	385
314	104CQ	CLUTCH CLAW SPRING	165
315	144NK	CLUTCH PLATE	275
316	144N6	BODY A SEAT	385
317	144NG	CLUTCH LEVER RECEIVER (B)	110
318	144NH	CLUTCH LEVER	275
319	145G1	FRAME ASSEMBLY	5610
320	144N8	FRAME B RECEIVER ASSEMBLY	1870
321	144NJ	BODY B CAM LEVER	165
322	10263	BRAKE DIAL	385
323	145G2	BODY B ASSEMBLY	1595
BRKS	10RC4	BRAKE SHOE S *Cannot be ordered	110
BST1	13SFU	BRAKE SHAFT *Cannot be ordered	110
