[SHIMANO] Genuine Spare Parts for 24 Scorpion MD 200XG RIGHT Product code: 046918 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

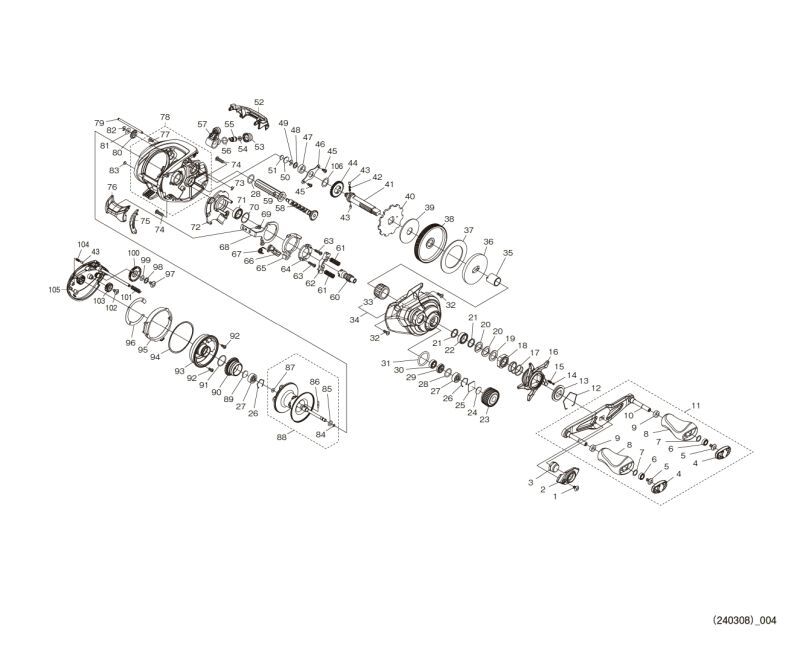

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", "86 /SPOOL CLUTCH PIN", "BRKS /BRAKE SHOE S" and "BST1 /BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXING BOLT	1.10
2	144EC	RETAINER	3.85
3	13V31	HANDLE FIXING NUT	2.75
4	10SS2	HANDLE CAP	1.10
5	10LFA	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	10SSM	HANDLE KNOB	11.55
9	10PXZ	HANDLE KNOB BUSH	1.65
10	145FR	HANDLE SHAFT ASSEMBLY	22.55
11	141J7	HANDLE ASSEMBLY	67.65
12	10KXW	STAR DRAG CLICK PLATE RETAINER	1.65
13	10J26	STAR DRAG CLICK PLATE	1.65
14	10MFC	CLICK PIN	1.65
15	10BT2	CLICK SPRING	1.65
16	144ED	STAR DRAG	16.50
17	10A70	STAR DRAG SPRING	2.75
18	10A3T	STAR DRAG FIXING NUT	3.85
19	10J1P	STAR DRAG SPACER	2.75
20	109F5	DRIVE GEAR WASHER	1.65
21	100SE	BALL BEARING WASHER	1.10
22	105BK	BALL BEARING (8 X 12 X 3.5)	13.75
23	13U1N	MECHANICAL BRAKE KNOB	9.35
24	10896	MECHANICAL BRAKE WASHER	1.10
25	1085F	MECHANICAL BRAKE WASHER	1.10
26	1054D	BEARING PULL-OUT STOPPER	1.10
27	105C0	BALL BEARING (3X10X4)	13.75
28	101GT	O-RING	1.65
29	100BL	BEARING SPACER	1.65
30	105BP	BALL BEARING (5X9X3)	13.75
31	108WK	O-RING SM14	1.65
32	10LCY	FIXING BOLT	1.10
33	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
34	145FQ	BODY A SET	36.30
35	100BM	ROLLER CLUTCH INNER TUBE	6.05
36	100BK	STAR DRAG PLATE	2.75
37	10SSF	STAR DRAG WASHER	11.55
38	10SRN	DRIVE GEAR	22.55
39	1023U	STAR DRAG WASHER	6.05
40	13YNT	STOPPER GEAR	6.05
41	13YNU	DRIVE GEAR SHAFT	11.55
42	10JDY	SPRING FOR WORM SHAFT GEAR	1.65
43	10HJG	WORM SHAFT GEAR PINS	1.65
44	101K8	WORM SHAFT GEAR	3.85
45	10S3Y	FIXING BOLT	1.10
46	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
47	10DQF	DRIVE GEAR SHAFT BUSHING	1.65
48	10C47	MAIN GEAR SHAFT WASHER	1.10
49	105NK	E TYPE STOP RING 2.5	1.10
50	143CG	METAL SPACER	1.10
51	14079	RUBBER SPACER	1.65
52	144EF	LEVEL WINDING GUARD	4.40
53	10FJB	LEVEL WINDING RECEIVER	1.65
54	10CFU	WASHER	1.10
55	10BHQ	WORM SHAFT PIN	2.75
56	108WQ	O-RING	1.65
57	10R51	LEVEL WINDING ASSEMBLY	3.30
58	144EG	WORM SHAFT	1.65
59	13YNV	LEVEL-WIND PIPE	1.65
60	10SSL	PINION GEAR	11.55
61	100U9	CLUTCH YOKE SPRING	1.10
62	100UH	CLUTCH YOKE	1.65
63	10LV0	FIXING BOLT	1.10
64	100US	CLUTCH CAM PUSH PLATE	3.85
65	100UK	CLUTCH CAM	2.75
66	10MQN	CLUTCH CLAW	3.85
67	104CP	CLUTCH CLAW SPRING	1.65
68	13YNW	CLUTCH PLATE	2.75
69	10559	FIXING BOLT	1.65
70	10190	WASHER	1.65
71	105BK	BALL BEARING (8 X 12 X 3.5)	13.75
72	144GW	BODY A SEAT	3.85
73	105NB	E TYPE STOP RING 1.5	1.10
74	100UV	FIXING BOLT	1.10
75	144EH	CLUTCH LEVER RECEIVER (B)	1.10
76	144EJ	CLUTCH LEVER	2.75
77	10E8N	FIXING BOLT	1.10
78	145FS	FRAME ASSEMBLY	56.10
79	10E2G	LEVEL-WIND GUIDE	1.65
80	100G7	LEVEL-WIND GUARD BUSHING	1.10
81	10FJZ	WASHER	1.10
82	105NC	E TYPE STOP RING 2	1.10
83	108PY	FRAME CONTACT WASHER	1.65
84	100BH	O-RING	1.10
85	10TM7	O-RING	1.65
86	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
87	10EZ7	O-RING	1.10
88	141JA	SPOOL ASSEMBLY	82.50
89	10EX5	SPOOL SHAFT CONTACT TALLY B	1.10
90	101DR	BRAKE PIPE GEAR	9.35
91	100GW	O RING	1.65
92	10L1Q	FIXING BOLT	1.10
93	144GZ	FRAME B RECEIVING ASSEMBLY	18.70
94	140UF	WASHER	1.10
95	144EK	BODY B CAM LEVER	1.65
96	144EL	CAM LEVER	1.10
97	103LE	FIXING BOLT	1.10
98	10G6D	O-RING 4X6	1.65
99	108WS	O-RING 4X6	1.10
100	10SAZ	BR KNOB	3.85
101	10KNH	DAMPER SPRING	1.65
102	103L7	FIXING BOLT	1.10
103	10CLF	INTERMEDIATE GEAR	1.65
104	10GQZ	CLICK SPRING	1.10
105	145FT	BODY B SET	15.95
106	10GR3	WASHER (7X10)	1.10
BRKS	10RC4	BRAKE SHOE S *Cannot be ordered	1.10
BST1	13SFU	BRAKE SHAFT *Cannot be ordered	1.10
