[SHIMANO] Genuine Spare Parts for 24 TWIN POWER C5000XG Product Code: 046888 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 TWIN POWER C5000XG Product Code: 046888 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$100.10 [Regular Price: US$1.10 - US$143.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.2 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/7622

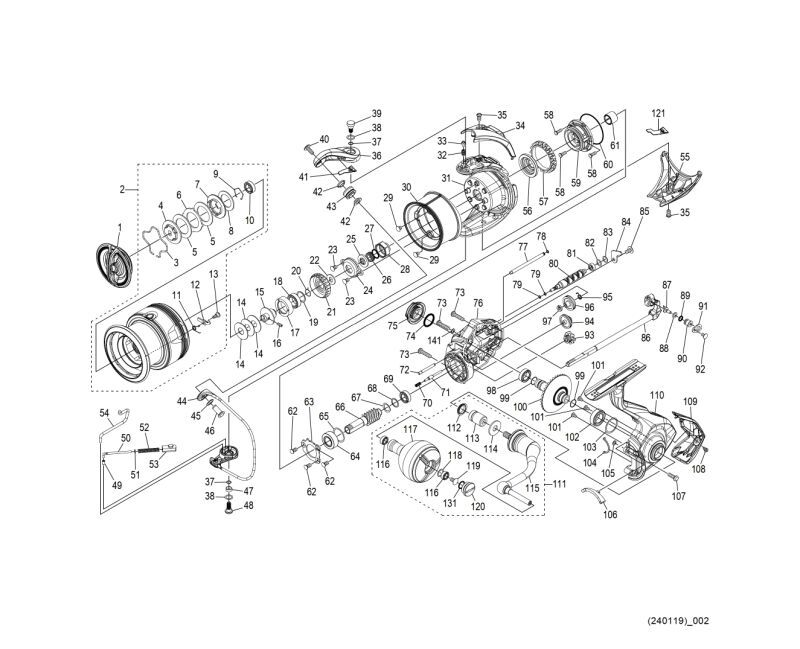

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 145NP DRAG KNOB ASSEMBLY 30.80
2 146AJ SPOOL ASSEMBLY 143.00
3 145QR STOPPER SPRING 1.10
4 10QBY OVAL WASHER 9.35
5 10R5H DRAG WASHER (A) 2.20
6 10BCP DRAG EAR WASHERS 6.05
7 10B9D DRAG WASHER (A) 2.75
8 10R4W DRAG WASHER (B) 2.20
9 10GEW BEARING EXTRACTION STOPPER 1.10
10 104JT BALL BEARING (6X10X3) 13.75
11 10BQE SPOOL PIN SPRING 1.65
12 10TJX SPOOL PIN 1.65
13 10A6F FIXING BOLT 1.65
14 101AV SPOOL WASHER (A) 2.20
15 10LTS SPOOL SHAFT BEARING GUIDE 6.05
16 10PN2 SET SCREW 1.65
17 10TQH BEARING COLLAR 2.75
18 10EX8 BALL BEARING (8 X12X3.5) 13.75
19 10GHN WASHER 1.65
20 107V2 RATCHET SPRING 1.65
21 107PS DRAG CLICK RATCHET 2.75
22 103NX SPOOL RECEIVER 1.65
23 103LB FIXING BOLT 1.10
24 1076P RETAINER 2.75
25 10SPZ ROTOR BEARING SEAL 3.85
26 13YZ8 MAIN SHAFT COLLAR 4.40
27 100KS O-RING 1.10
28 10SQ2 ROTOR NUT 9.35
29 103C8 FIXING BOLT 1.10
30 1011W ROTOR FLANGE 9.35
31 145UY ROTOR ASSEMBLY 104.50
32 10CGZ CLICK SPRING 1.65
33 106UX CLICK PIN 1.65
34 1011M ARM CAM SPRING COVER 13.20
35 10RP9 FIXING BOLT 1.65
36 13YZ3 ARM CAM 8.25
37 10192 ARM CAM ADJUSTMENT WASHER 1.10
38 10G6C WASHER 1.10
39 13Z1M FIXING BOLT 6.05
40 1422M FIXING BOLT 2.75
41 10SQ4 ARM CAM FIN 1.10
42 1020L LINE ROLLER BEARING COLLAR 2.75
43 101KE LINE ROLLER (WITH BEARING) ASSEMBLY 34.10
44 145UZ BAIL ASSEMBLY 46.20
45 1002S ARM FIXED SHAFT WASHER 1.10
46 13ZML ARM FIXING SHAFT 6.05
47 101D0 BALE MOUNTING KECAM COLLAR 1.65
48 13Z1K FIXING BOLT 6.05
49 10DKC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
50 10SAN ARM SPRING GUIDE (A) 3.85
51 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
52 10R2P ARM CAM SPRING 1.65
53 10R2E ARM CAM SPRING GUIDE (B) 2.75
54 10SED INNER GERI LEVER 2.75
55 1012D BAIL MOUNTING COVER 17.05
56 101D5 ROTOR COLLAR 9.35
57 10DK7 FRICTION RING 3.85
58 101LH FIXING BOLT 1.10
59 10S2L ROLLER CLUTCH ASSEMBLY 12.65
60 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
61 10DJY ROLLER CLUTCH INNER 3.85
62 10TGX FIXING BOLT 1.10
63 10R53 BEARING PUSH PLATE 2.75
64 101WE BALL BEARING (7X14X5) 7.15
65 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
66 10SEH PINION GEAR 21.45
67 10053 BEARING WASHER 1.65
68 10GD8 BEARING WASHER 1.10
69 104JQ BALL BEARING (6X10X3) 7.15
70 10R5T INTERMEDIATE GEAR SPRING 1.10
71 10SEC INTERMEDIATE GEAR SHAFT 2.75
72 13XY6 INTERMEDIATE GEAR SHAFT (C) 2.75
73 100YN FIXING BOLT 1.65
74 108WH O-RING 1.65
75 13Z13 HANDLE SCREW CAP 6.60
76 13YZ6 BODY 22.55
77 10SQ5 SLIDER GUIDE (A) 3.85
78 10JAB O-RING 1.65
79 10092 O-RING 1.65
80 10SQ6 WORM SHAFT 11.55
81 10TH6 BUSH 3.85
82 100XZ WASHER 2.20
83 10TK0 WASHER 1.65
84 13YYE WORM SHAFT COVER 1.65
85 10QG5 FIXING BOLT 1.10
86 13YFD MAIN SHAFT ASSEMBLY 30.80
87 106VM WORM SHAFT PIN 4.95
88 100CW WASHER 2.20
89 108W9 O-RING (3X5) 1.65
90 1005H WORM SHAFT PIN COLLAR 2.75
91 10HAH WORM SHAFT PIN PUSH PLATE 1.65
92 10MT4 FIXING BOLT 1.10
93 10SQA INTERMEDIATE GEAR (LARGE) 8.25
94 10R4Q INTERMEDIATE GEAR (C) 8.25
95 10R5N WORM SHAFT GEAR SPRING 2.20
96 10R5L WORM SHAFT GEAR 9.35
97 106M8 WORM SHAFT BUSH (FRONT) 2.75
98 104PP BALL BEARING (7X11X3) 13.75
99 1009S O-RING 1.65
100 13YFE DRIVE GEAR 30.80
101 1055G FIXING BOLT 1.65
102 104PT BALL BEARING（8X14X4) 13.75
103 100W9 WASHER 2.75
104 10DKA COVER FLANGE SEAL 2.75
105 10GA7 WASHER (8X14X4) 1.10
106 10QWW INNER GERI CONTACT 1.65
107 10M2A FIXING BOLT 1.10
108 10EF0 FIXING BOLT 1.65
109 1400V BODY GUARD 11.55
110 146AK COVER ASSEMBLY 79.20
111 146A9 HANDLE ASSEMBLY 114.40
112 10PXU HANDLE SHAFT SEAL 2.75
113 10070 HANDLE SHAFT FLANGE (B) 9.35
114 10FJ6 HANDLE WASHER 1.65
115 146AA HANDLE SHANK ASSEMBLY 59.95
116 104VX BALL BEARING (4X7X2.5) 13.75
117 146AB HANDLE KNOB ASSEMBLY 45.10
118 104FH HANDLE WASHER 2.20
119 103E9 FIXING BOLT 1.10
120 1004B HANDLE CAP 3.85
121 10SE2 ARM CAM FIN (ACCESSORY) 1.10
131 10LAB O-RING 1.10
141 10J48 WASHER 1.10
MH01 13YZV NAMEPLATE ON BACK OF LEG 2.75
