[DAIWA] Genuine Spare Parts for 17 LIBERTY CLUB 2500 Product code: 00059622 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 LIBERTY CLUB 2500 Product code: 00059622 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$13.86 [Regular Price: US$1.10 - US$23.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

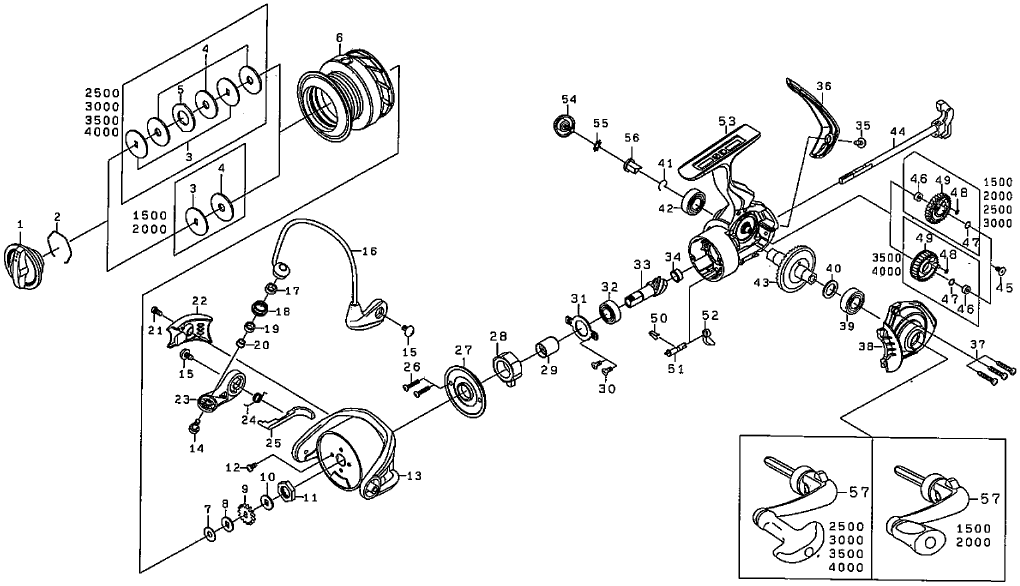

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139735 3.30
2 DRAG RING 185054 2.20
3 DRAG DISC W 142069 2.20
4 DRAG W 144070 2.20
5 DRAG GRIP W 143074 2.20
6 SPOOL (2-6) 128B06 18.70
7 SPOOL W (A) 190602 1.10
8 SPOOL W (B) 190367 1.10
9 CLICK GEAR 118110 2.20
10 CLICK HOLDER W *Not available 190848 1.10
11 ROTOR NUT 140307 2.20
12 ROTOR NUT SC 10A650 2.20
13 ROTOR 188137 6.60
14 ROLLER SC 152124 2.20
15 HOLDER SC 10A651 2.20
16 VEIL 164956 7.70
17 ROLLER COLLAR (A) 191065 2.20
18 LINE ROLLER 179141 3.30
19 ROLLER SLEEVE 191043 2.20
20 ROLLER COLLAR (B) 110752 2.20
21 ARM LEVER SP COVER SC 10A652 2.20
22 ARM LEVER SP COVER 108899 2.20
23 ARM LEVER 101261 3.30
24 ARM LEVER SP 133A66 2.20
25 KICK LEVER 111116 4.40
26 ONE-WAY CLUTCH PLATE SC 10A741 2.20
27 ONE WAY CLUTCH PLATE 182267 2.20
28 ONE WAY CLUTCH 114118 23.10
29 CLUTCH RING 110136 5.50
30 PINION BEARING PLATE SC 10A125 2.20
31 PINION BEARING PLATE 182269 2.20
32 PINION BALL BEARING 10E210 8.80
33 PINION 154635 9.90
34 PINION COLLAR 110134 2.20
35 REAR CAP SC 10A652 2.20
36 REAR CAP 116718 3.30
37 BODY COVER SC 123164 2.20
38 BODY COVER 168A05 4.40
39 DRIVE BALL BEARING (A) 10E210 8.80
40 DRIVE W 190137 1.10
41 DRIVE BALL BEARING (B) RING 185116 2.20
42 DRIVE BALL BEARING (B) 10E381 8.80
43 DRIVE GEAR 138870 6.60
44 MAIN SHAFT 171512 4.40
45 OSCILLATING GEAR SC 10A155 2.20
46 OSCILLATING GEAR COLOR 110A07 2.20
47 OSCILLATING GEAR COLOR W 190455 1.10
48 OSCILLATING GEAR O-RING 10J113 1.10
49 OSCILLATING GEAR 106154 3.30
50 STOPPER CAM SP 133886 2.20
51 STOPPER CAM 194186 2.20
52 STOPPER LEVER 196408 2.20
53 BODY 166A08 5.50
54 HANDLE SC 152170 3.30
55 HANDLE SC/W 134001 2.20
56 HANDLE COLOR 104014 2.20
57 HANDLE 1H2A18 18.70
