[DAIWA] Genuine Spare Parts for 15 REVROS 4000 Product code: 00057379 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 REVROS 4000 Product code: 00057379 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$20.46 [Regular Price: US$1.10 - US$34.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

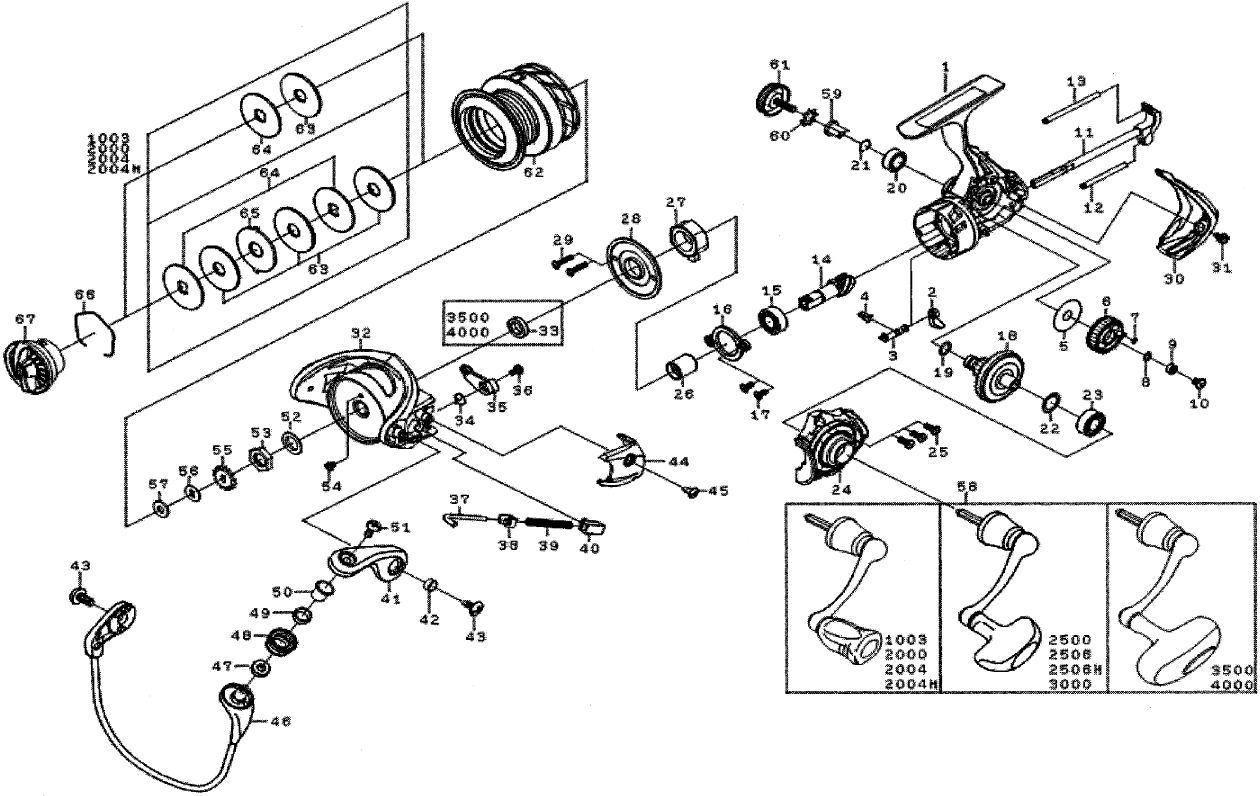

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BODY 166234 14.30
2 STOPPER LEVER 196408 2.20
3 STOPPER CAM 194187 2.20
4 STOPPER CAM SP 133886 2.20
5 OSCILLATING GEAR W 190760 1.10
6 OSCILLATING GEAR W *Cannot be ordered 106141 3.30
7 OSCILLATING GEAR O-RING 10J012 1.10
8 OSCILLATING GEAR BEARING W 190711 1.10
9 OSCILLATING GEAR BALL BEARINGS 10E348 8.80
10 OSCILLATING GEAR SC 10A904 2.20
11 MAIN SHAFT 171496 7.70
12 OSCILLATING POST (B) 155342 2.20
13 OSCILLATING POST (A) 155343 2.20
14 PINION 154623 8.80
15 PINION BALL BEARING 10E019 8.80
16 PINION BEARING PLATE 182256 2.20
17 PINION BEARING PLATE SC 10A059 2.20
18 DRIVE GEAR 138600 8.80
19 DRIVE GEAR O-RING 10F064 2.20
20 DRIVE BALL BEARING (B) 10E238 8.80
21 DRIVE BALL BEARING (B) RING 185120 2.20
22 DRIVE W 190305 1.10
23 DRIVE BALL BEARING (A) 10E349 8.80
24 BODY COVER 168298 11.00
25 BODY COVER SC 123164 2.20
26 CLUTCH RING 110B65 6.60
27 ONE-WAY CLUTCH *Cannot be ordered 114116 26.40
28 SHIELD CAP 182264 3.30
29 SHIELD CAP SC 10A936 2.20
30 REAR CAP 116665 4.40
31 REAR CAP SC 10A652 2.20
32 ROTOR *Cannot be ordered 188111 15.40
33 SHIELD CAP COLLAR 110942 2.20
34 KICK LEVER SP 133861 2.20
35 KICK LEVER 111156 3.30
36 KICK LEVER SC 10A870 2.20
37 ARM LEVER SHAFT 122163 2.20
38 ARM LEVER SHAFT PLATE 160716 3.30
39 ARM LEVER SP 133897 2.20
40 ARM LEVER SP HOLDER 110056 2.20
41 ARM LEVER 101385 3.30
42 ARM LEVER SC COLLAR 110055 2.20
43 BAIL SC 10A651 2.20
44 ARM LEVER SP COVER 108112 4.40
45 ARM LEVER SP COVER SC 10A652 2.20
46 BAIL 164855 27.50
47 ROLLER COLLAR (C) 191042 2.20
48 LINE ROLLER 179147 7.70
49 ROLLER COLLAR (B) 191029 2.20
50 ROLLER COLLAR (A) 191030 2.20
51 ROLLER SC 152124 2.20
52 ROTOR NUT W 190404 1.10
53 ROTOR NUT 140313 2.20
54 ROTOR NUT SC 10A748 2.20
55 CLICK GEAR 118110 2.20
56 SPOOL W (B) 190367 1.10
57 SPOOL W (A) 190602 1.10
58 HANDLE 1H2110 34.10
59 HANDLE COLLAR 104023 2.20
60 HANDLE W 135010 2.20
61 HANDLE SC 152171 3.30
62 SPOOL (62-66) 128907 20.90
63 DRAG W 144070 2.20
64 DRAG DISK W 142069 2.20
65 DRAG LIP W 143074 2.20
66 DRAG RING 185054 2.20
67 DRAG KNOB 139691 3.30
