[DAIWA] Genuine Spare Parts for 19 AORIMATIC BR LT3000D Product code: 00065704 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19 AORIMATIC BR LT3000D Product code: 00065704 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$23.76 [Regular Price: US$1.10 - US$39.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

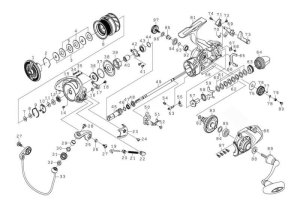

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139761 12.10
2 DRAG RINGS 185237 2.20
3 DRAG DISK W 142165 2.20
4 DRAG W SET (3 piece) 144225 19.80
5 DRAG LIP W 143091 2.20
6 SPOOL (2-6) 128D52 39.60
7 SPOOL W (A) 190602 1.10
8 SPOOL W (B) 190A49 1.10
9 CLICK REEF SP (SET OF 2) 133A50 2.20
10 CLICK HOLDER 116895 2.20
11 CLICK HOLDER W 190A50 1.10
12 ROTOR NUT PACKING 185203 3.30
13 ROTOR NUT 140333 3.30
14 ROTOR NUT SC 10A748 2.20
15 ROTOR 188A68 8.80
16 KICK LEVER SP 133861 2.20
17 KICK LEVER 111154 3.30
18 KICK LEVER SC 10A870 2.20
19 ARM LEVER SHAFT *Discontinued 122161 2.20
20 ARM LEVER SHAFT PLATE 160716 3.30
21 ARM LEVER SP 133864 2.20
22 ARM LEVER SP HOLDER 110056 2.20
23 ARM LEVER SP COVER 108110 3.30
24 COVER SC 10AA13 2.20
25 ARM LEVER 101442 3.30
26 ARM LEVER SC COLLAR 110055 2.20
27 ARM LEVER SC 10AA14 2.20
28 ROLLER SC 152124 2.20
29 ROLLER COLLAR (A) 191030 2.20
30 ROLLER COLLAR (B) 191029 2.20
31 LINE ROLLER 179147 7.70
32 ROLLER COLLAR (C) 191065 2.20
33 BAIL 164930 12.10
34 MAG SHIELD PLATE SC 10A741 2.20
35 PLATE SC-W 190621 1.10
36 MAG SHIELD PLATE *Cannot be ordered 114122 23.10
37 MAG SHIELD PLATE O-RING 10J143 1.10
38 MAG SHIELD CAP *Cannot be ordered 108132 3.30
39 ONE-WAY CLUTCH *Cannot be ordered 114119 26.40
40 CLUTCH RING *Cannot be ordered 110A62 6.60
41 PINION BEARING PLATE SC 10A059 2.20
42 PINION BEARING PLATE 182269 2.20
43 PINION BALL BEARING (A) 10E323 8.80
44 PINION BALL BEARING (A) W 190137 1.10
45 PINION 154707 12.10
46 PINION BALL BEARING (B) W 190014 1.10
47 PINION BALL BEARING (B) 10E209 8.80
48 PINION COLLAR 110A10 3.30
49 MAIN SHAFT 171595 8.80
50 OSCILLATING SLIDER 107188 3.30
51 OSCILLATING SLIDER RETAINER 10F105 3.30
52 OSCILLATING SLIDER SC 10A841 2.20
53 STOPPER CAM 194186 2.20
54 STOPPER CAM LEAF SP 133886 2.20
55 STOPPER LEVER 196408 2.20
56 OSCILLATING POST 155340 2.20
57 BRAKE METAL (A) 174065 2.20
58 CLICK GEAR 118117 2.20
59 CLICK GEAR PLATE 160C11 2.20
60 BRAKE W 190064 2.20
61 BRAKE W 190B41 2.20
62 BRAKE SP・W *Cannot be ordered 181270 2.20
63 BRAKE METAL (B) 174066 4.40
64 BRAKE KNOB 139801 6.60
65 BRAKE PLATE 127266 3.30
66 BRAKE PLATE SP 133A46 2.20
67 BRAKE CLICK PLATE (A) 160C12 2.20
68 CLICK PLATE SC (A) 10A960 2.20
69 CLUTCH CAM (A) 109414 3.30
70 CLUTCH CAM SP (A) 133A47 2.20
71 CLUTCH LEVER (R) 198313 4.40
72 CLUTCH CAM SC (A) 10A109 2.20
73 CLUTCH LEVER (L) 198314 4.40
74 CLUTCH LEVER SC 10AB15 2.20
75 OSCILLATING GEAR W 190958 1.10
76 OSCILLATING GEAR W *Cannot be ordered 106175 4.40
77 OSCILLATING GEAR O-RING 10J113 1.10
78 OSCILLATING GEAR BEARING W 190854 1.10
79 OSCILLATING GEAR BALL BEARING 10E295 8.80
80 OSCILLATING GEAR SC 10A058 2.20
81 BODY 166B51 14.30
82 DRIVE GEAR BEARINGS 10J071 1.10
83 DRIVE GEAR 138B58 7.70
84 DRIVE W 190509 1.10
85 DRIVE BALL BEARING (A) 10E210 8.80
86 BODY COVER 168B72 9.90
87 BODY COVER SC 10AA16 2.20
88 HANDLE PACKING 185206 3.30
89 HANDLE 1H2B67 22.00
92 DRIVE BALL BEARING (B) 10E381 8.80
93 DRIVE BEARING RING 185116 2.20
94 HANDLE PACKING 185206 3.30
95 HANDLE COLLAR 104014 2.20
96 HANDLE SC・W 134001 2.20
97 HANDLE SC 152170 3.30
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR 110411 2.20
202 HANDLE KNOB 1H1707 17.60
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116754 2.20
