[DAIWA] Genuine Spare Parts for 19 AORIMATIC BR LT3000 Product code: 00065703 **Back-order (Shipping in 3-4 weeks after receiving order)
[DAIWA] Genuine Spare Parts for 19 AORIMATIC BR LT3000 Product code: 00065703 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 - US$23.76 [Regular Price: US$1.10 - US$39.60]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

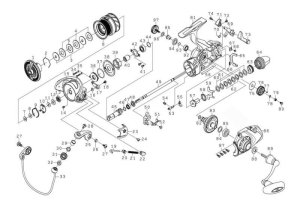

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOBS | 139761 | 12.10 |
2 | DRAG RINGS | 185237 | 2.20 |
3 | DRAG DISK W | 142165 | 2.20 |
4 | DRAG W SET (3 piece) | 144225 | 19.80 |
5 | DRAG LIP W | 143091 | 2.20 |
6 | SPOOL (2-6) | 128D51 | 39.60 |
7 | SPOOL W (A) | 190602 | 1.10 |
8 | SPOOL W (B) | 190A49 | 1.10 |
9 | CLICK REEF SP (SET OF 2) | 133A50 | 2.20 |
10 | CLICK HOLDER | 116895 | 2.20 |
11 | CLICK HOLDER W | 190A50 | 1.10 |
12 | ROTOR NUT PACKING | 185203 | 3.30 |
13 | ROTOR NUT | 140333 | 3.30 |
14 | ROTOR NUT SC | 10A748 | 2.20 |
15 | ROTOR | 188A68 | 8.80 |
16 | KICK LEVER SP | 133861 | 2.20 |
17 | KICK LEVER | 111154 | 3.30 |
18 | KICK LEVER SC | 10A870 | 2.20 |
19 | ARM LEVER SHAFT *Discontinued | 122161 | 2.20 |
20 | ARM LEVER SHAFT PLATE | 160716 | 3.30 |
21 | ARM LEVER SP | 133864 | 2.20 |
22 | ARM LEVER SP HOLDER | 110056 | 2.20 |
23 | ARM LEVER SP COVER | 108110 | 3.30 |
24 | COVER SC | 10AA13 | 2.20 |
25 | ARM LEVER | 101442 | 3.30 |
26 | ARM LEVER SC COLLAR | 110055 | 2.20 |
27 | ARM LEVER SC | 10AA14 | 2.20 |
28 | ROLLER SC | 152124 | 2.20 |
29 | ROLLER COLLAR (A) | 191030 | 2.20 |
30 | ROLLER COLLAR (B) | 191029 | 2.20 |
31 | LINE ROLLER | 179147 | 7.70 |
32 | ROLLER COLLAR (C) | 191065 | 2.20 |
33 | BAIL | 164930 | 12.10 |
34 | MAG SHIELD PLATE SC | 10A741 | 2.20 |
35 | PLATE SC-W | 190621 | 1.10 |
36 | MAG SHIELD PLATE *Cannot be ordered | 114122 | 23.10 |
37 | MAG SHIELD PLATE O-RING | 10J143 | 1.10 |
38 | MAG SHIELD CAP *Cannot be ordered | 108132 | 3.30 |
39 | ONE-WAY CLUTCH *Cannot be ordered | 114119 | 26.40 |
40 | CLUTCH RING *Cannot be ordered | 110A62 | 6.60 |
41 | PINION BEARING PLATE SC | 10A059 | 2.20 |
42 | PINION BEARING PLATE | 182269 | 2.20 |
43 | PINION BALL BEARING (A) | 10E323 | 8.80 |
44 | PINION BALL BEARING (A) W | 190137 | 1.10 |
45 | PINION | 154707 | 12.10 |
46 | PINION BALL BEARING (B) W | 190014 | 1.10 |
47 | PINION BALL BEARING (B) | 10E209 | 8.80 |
48 | PINION COLLAR | 110A10 | 3.30 |
49 | MAIN SHAFT | 171595 | 8.80 |
50 | OSCILLATING SLIDER | 107188 | 3.30 |
51 | OSCILLATING SLIDER RETAINER | 10F105 | 3.30 |
52 | OSCILLATING SLIDER SC | 10A841 | 2.20 |
53 | STOPPER CAM | 194186 | 2.20 |
54 | STOPPER CAM LEAF SP | 133886 | 2.20 |
55 | STOPPER LEVER | 196408 | 2.20 |
56 | OSCILLATING POST | 155340 | 2.20 |
57 | BRAKE METAL (A) | 174065 | 2.20 |
58 | CLICK GEAR | 118117 | 2.20 |
59 | CLICK GEAR PLATE | 160C11 | 2.20 |
60 | BRAKE W | 190064 | 2.20 |
61 | BRAKE W | 190B41 | 2.20 |
62 | BRAKE SP・W *Cannot be ordered | 181270 | 2.20 |
63 | BRAKE METAL (B) | 174066 | 4.40 |
64 | BRAKE KNOB | 139801 | 6.60 |
65 | BRAKE PLATE | 127266 | 3.30 |
66 | BRAKE PLATE SP | 133A46 | 2.20 |
67 | BRAKE CLICK PLATE (A) | 160C12 | 2.20 |
68 | CLICK PLATE SC (A) | 10A960 | 2.20 |
69 | CLUTCH CAM (A) | 109414 | 3.30 |
70 | CLUTCH CAM SP (A) | 133A47 | 2.20 |
71 | CLUTCH LEVER (R) | 198313 | 4.40 |
72 | CLUTCH CAM SC (A) | 10A109 | 2.20 |
73 | CLUTCH LEVER (L) | 198314 | 4.40 |
74 | CLUTCH LEVER SC | 10AB15 | 2.20 |
75 | OSCILLATING GEAR W | 190958 | 1.10 |
76 | OSCILLATING GEAR W *Cannot be ordered | 106175 | 4.40 |
77 | OSCILLATING GEAR O-RING | 10J113 | 1.10 |
78 | OSCILLATING GEAR BEARING W | 190854 | 1.10 |
79 | OSCILLATING GEAR BALL BEARING | 10E295 | 8.80 |
80 | OSCILLATING GEAR SC | 10A058 | 2.20 |
81 | BODY | 166B51 | 14.30 |
82 | DRIVE GEAR BEARINGS | 10J071 | 1.10 |
83 | DRIVE GEAR | 138B58 | 7.70 |
84 | DRIVE W | 190509 | 1.10 |
85 | DRIVE BALL BEARING (A) | 10E210 | 8.80 |
86 | BODY COVER | 168B72 | 9.90 |
87 | BODY COVER SC | 10AA16 | 2.20 |
88 | HANDLE PACKING | 185206 | 3.30 |
89 | HANDLE | 1H2B67 | 22.00 |
92 | DRIVE BALL BEARING (B) | 10E381 | 8.80 |
93 | DRIVE BEARING RING | 185116 | 2.20 |
94 | HANDLE PACKING | 185206 | 3.30 |
95 | HANDLE COLLAR | 104014 | 2.20 |
96 | HANDLE SC・W | 134001 | 2.20 |
97 | HANDLE SC | 152170 | 3.30 |
200 | HANDLE KNOB W | 190196 | 1.10 |
201 | HANDLE KNOB COLLAR | 110411 | 2.20 |
202 | HANDLE KNOB | 1H1707 | 17.60 |
203 | HANDLE KNOB SC | 10A333 | 2.20 |
204 | HANDLE KNOB CAP | 116754 | 2.20 |
