[DAIWA] Genuine Spare Parts for 15 SALTIGA 4000 Product code: 00059543 **Back-order (Shipping in 3-4 weeks after receiving order)
[DAIWA] Genuine Spare Parts for 15 SALTIGA 4000 Product code: 00059543 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$194.81 [Regular Price: US$1.10 - US$278.30]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

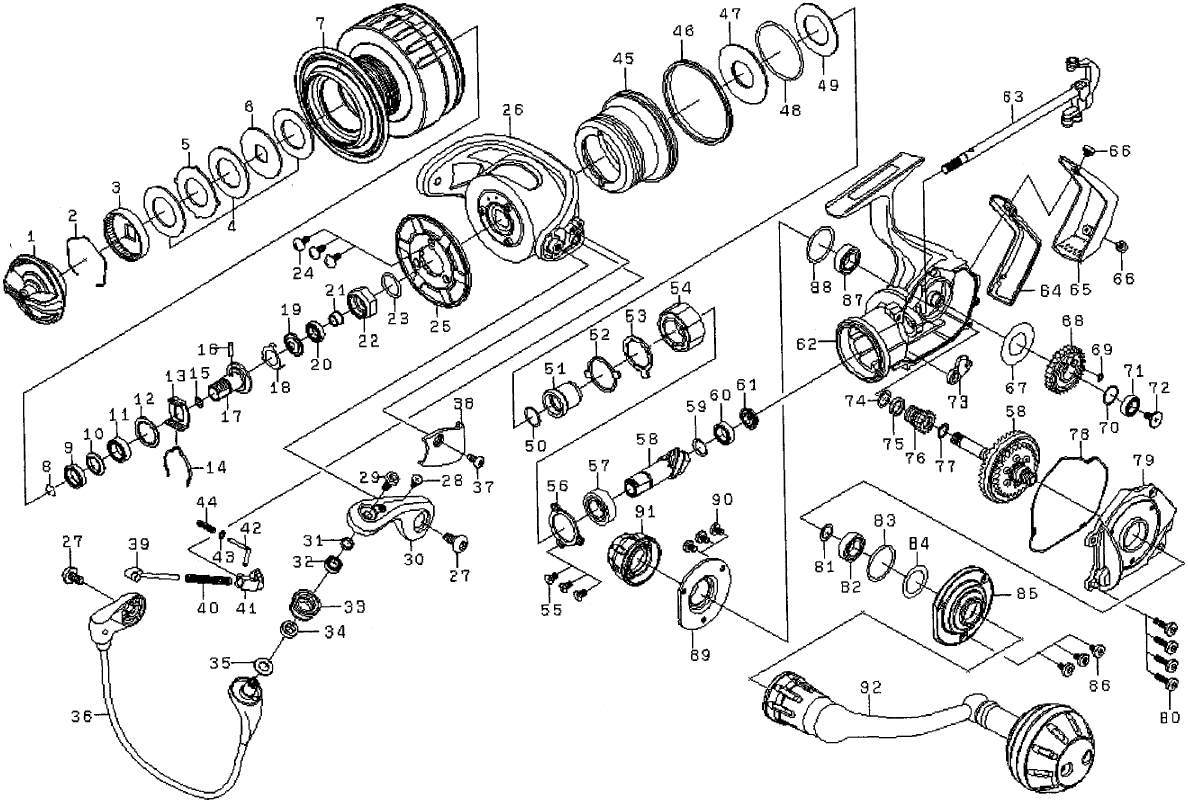

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOB | 139693 | 27.5 |
2 | DRAG RING | 185059 | 2.2 |
3 | DRAG RATCHET | 180232 | 8.8 |
4 | DRAG DOUBLE SET (3 piece) | 144193 | 36.3 |
5 | DRAG GRIP W | 143082 | 2.2 |
6 | DRAG DESK W | 142147 | 2.2 |
7 | SPOOL (2-7) | 128913 | 278.3 |
8 | SPOOL METAL RING | 185120 | 2.2 |
9 | SPOOL METAL BALL BEARING (A) | 10E075 | 8.8 |
10 | METAL BALL BEARING PACKING | 185174 | 3.3 |
11 | SPOOL METAL BALL BEARING (B) | 10E275 | 8.8 |
12 | SPOOL W | 190952 | 1.1 |
13 | CLICK HOLDER | 116377 | 3.3 |
14 | CLICKLEAF SP | 181269 | 2.2 |
15 | SPOOL METAL O-RING | 10J108 | 1.1 |
16 | SPOOL METAL PIN | 156096 | 2.2 |
17 | SPOOL METAL | 132094 | 7.7 |
18 | ROTOR NUT PLATE | 160459 | 2.2 |
19 | ROTOR NUT PACKING | 185175 | 3.3 |
20 | ROTOR NUT BALL BEARING | 10E367 | 15.4 |
21 | ROTOR NUT COLOR | 110922 | 3.3 |
22 | ROTOR NUT | 140252 | 3.3 |
23 | ROTOR NUT O-RING | 185077 | 2.2 |
24 | ROTOR COVER SC | 10A870 | 2.2 |
25 | ROTOR COVER | 162123 | 8.8 |
26 | ROTOR *Cannot be ordered | 188113 | 67.1 |
27 | HOLDER SC | 10A901 | 2.2 |
28 | ARM LEVER SC | 10A116 | 3.3 |
29 | ROLLER SC | 10A899 | 2.2 |
30 | ARM LEVER | 101330 | 27.5 |
31 | ROLLER COLLAR (A) | 191063 | 2.2 |
32 | ROLLER BALL BEARING (MAG SHIELD) *Cannot be ordered | 10E391 | 45.1 |
33 | LINE ROLLER | 179146 | 8.8 |
34 | ROLLER COLLAR (B) | 191064 | 3.3 |
35 | ROLLER W | 193014 | 1.1 |
36 | VEIL *Cannot be ordered | 164796 | 69.3 |
37 | ARM LEVER SP COVER SC | 10A898 | 2.2 |
38 | ARM LEVER SP COVER | 108011 | 6.6 |
39 | ARM LEVER SHAFT | 156117 | 2.2 |
40 | ARM LEVER SP | 133882 | 2.2 |
41 | ARM LEVER SP COLOR | 110924 | 2.2 |
42 | ROTOR BRAKE SHAFT | 122333 | 3.3 |
43 | ROTOR BRAKE W | 190773 | 1.1 |
44 | ROTOR BRAKE SP | 133883 | 2.2 |
45 | INFINITE COVER *Cannot be ordered | 108107 | 36.3 |
46 | INFINITE COVER O-RING | 10J109 | 1.1 |
47 | MUG SHIELD PLATE *Cannot be ordered | 114083 | 23.1 |
48 | MAG SHIELD PLATE O RING | 10J096 | 1.1 |
49 | MAG SHIELD PLATE W | 190953 | 2.2 |
50 | CLUTCH RING O RING | 10J110 | 1.1 |
51 | CLUTCH RING *Cannot be ordered | 110921 | 18.7 |
52 | BEARING PLATE | 160743 | 2.2 |
53 | ONE WAY CLUTCH PLATE | 160744 | 2.2 |
54 | ONE WAY CLUTCH *Cannot be ordered | 114045 | 26.4 |
55 | PINION BEARING (A) PLATE SC | 10A499 | 2.2 |
56 | PINION BEARING (A) PLATE | 160461 | 2.2 |
57 | PINION BALL BEARING (A) | 10E263 | 8.8 |
58 | PINION + DRIVE GEAR SET *Cannot be ordered | 138812 | 132 |
59 | PINION BALL BEARING (B) W | 190086 | 1.1 |
60 | PINION BALL BEARING (B) | 10E257 | 8.8 |
61 | PINION BEARING (B) COLLAR | 110923 | 3.3 |
62 | BODY *Cannot be ordered | 166240 | 73.7 |
63 | MAIN SHAFT *Cannot be ordered | 171490 | 30.8 |
64 | REAR CAP GASKET | 185176 | 3.3 |
65 | REAR CAP | 116662 | 77 |
66 | REAR CAP SC | 10A902 | 3.3 |
67 | OSCILLATING GEAR (A)W | 190954 | 1.1 |
68 | OSCILLATING GEAR (A) | 112684 | 8.8 |
69 | OSCILLATING GEAR (A) O-RING | 10J012 | 1.1 |
70 | OSCILLATING GEAR BEARING W | 190711 | 1.1 |
71 | OSCILLATING GEAR BALL BEARING | 10E211 | 8.8 |
72 | OSCILLATING GEAR SC | 10A922 | 2.2 |
73 | STOPPER | 127241 | 7.7 |
74 | DRIVE B BEARING O-RING (A) | 10J135 | 1.1 |
75 | OSCILLATING GEAR (B) RING | 185177 | 2.2 |
76 | OSCILLATING GEAR | 106142 | 19.8 |
77 | OSCILLATING GEAR (B) O-RING | 10J136 | 1.1 |
78 | BODY COVER PACKING | 185178 | 4.4 |
79 | BODY COVER *Cannot be ordered | 168304 | 46.2 |
80 | BODY COVER SC | 158095 | 2.2 |
81 | DRIVE B BEARING O-RING (A) | 10J135 | 1.1 |
82 | DRIVE B BEARING (MAG SHIELD) *Cannot be ordered | 10E389 | 45.1 |
83 | DRIVE B BEARING O-RING (B) | 10J137 | 1.1 |
84 | DRIVE W | 190712 | 1.1 |
85 | DRIVE BEARING COVER (L) *Cannot be ordered | 168305 | 46.2 |
86 | DRIVE BEARING COVER SC | 10A846 | 4.4 |
87 | DRIVE B BEARING (MAG SHIELD) *Cannot be ordered | 10E389 | 45.1 |
88 | DRIVE B BEARING O-RING (B) | 10J137 | 1.1 |
89 | DRIVE BEARING COVER (R) *Cannot be ordered | 168306 | 46.2 |
90 | DRIVE BEARING COVER SC | 10A846 | 4.4 |
91 | HANDLE CAP | 151194 | 24.2 |
92 | HANDLE | 1H2113 | 236.5 |
200 | HANDLE KNOB PACKING | 185180 | 2.2 |
201 | HANDLE KNOB W | 190196 | 1.1 |
202 | HANDLE KNOB BALL BEARING | 10E313 | 15.4 |
203 | HANDLE KNOB (A)/BLUE | 1H1583 | 53.9 |
204 | HANDLE KNOB (B) / GUN METAL (WITHOUT RING) | 1H1584 | 67.1 |
205 | HANDLE KNOB (A) SC | 10A333 | 2.2 |
206 | HANDLE KNOB (B) O-RING | 190649 | 1.1 |
207 | HANDLE KNOB (B) SC | 10A513 | 2.2 |
300 | SPOOL BAND | 199835 | 15.4 |
