[DAIWA] Genuine Spare Parts for 17 SALTIGA BJ 4000SH Product code: 00059593 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 SALTIGA BJ 4000SH Product code: 00059593 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$152.46 [Regular Price: US$1.10 - US$254.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

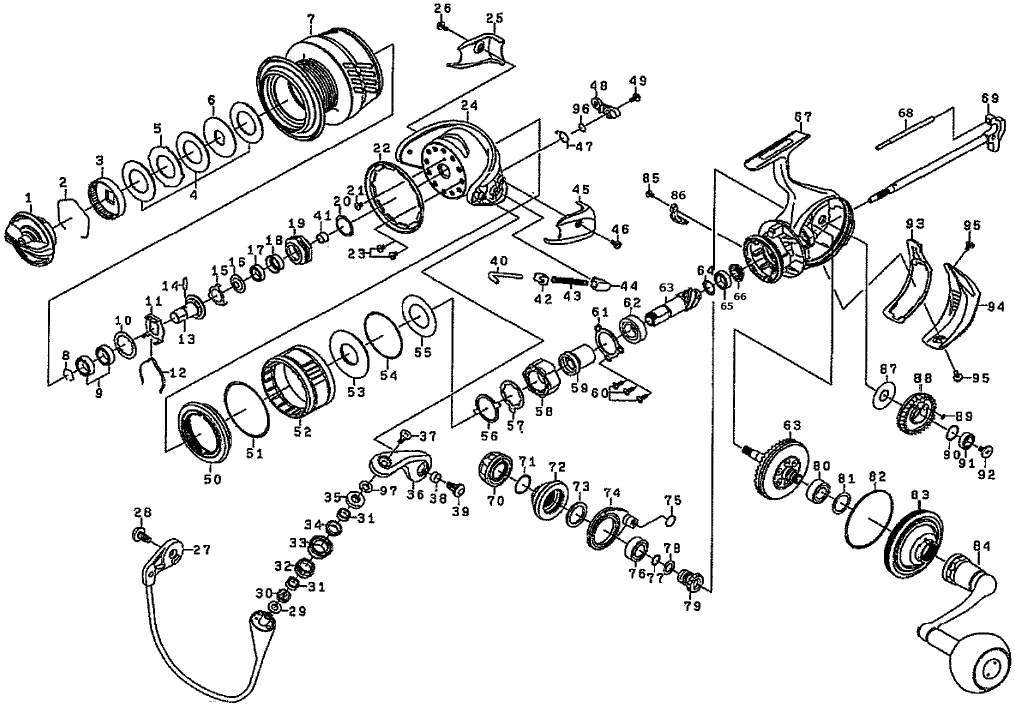

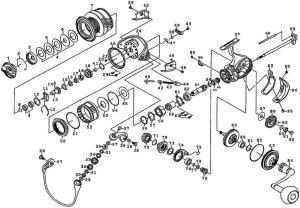

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139731 27.50
2 DRAG RING 185059 2.20
3 DRAG RATCHET 180232 8.80
4 DRAG DOUBLE SET (3 piece) 144193 36.30
5 DRAG GRIP W 143082 2.20
6 DRAG DISC W 142147 2.20
7 SPOOL (2-7) 128B03 254.10
8 SPOOL METAL RING 185120 2.20
9 SPOOL METAL BALL BEARING 10E275 8.80
10 SPOOL W (0.8) 190952 1.10
11 CLICK HOLDER 116377 3.30
12 CLICKLEAF SP 181269 2.20
13 SPOOL METAL 132126 9.90
14 SPOOL METAL PIN 156096 2.20
15 ROTOR NUT PLATE 160459 2.20
16 ROTOR NUT PACKING 185175 3.30
17 ROTOR NUT BALL BEARING 10E367 15.40
18 ROTOR NUT COLOR 110096 4.40
19 ROTOR NUT 140341 8.80
20 ROTOR NUT W 190404 1.10
21 ROTOR NUT SC 10A748 2.20
22 ROTOR COVER 162184 3.30
23 ROTOR COVER SC 10A748 2.20
24 ROTOR *Cannot be ordered 188146 57.20
25 BALE HOLDER COVER 108145 6.60
26 COVER SC 10A871 2.20
27 VEIL *Cannot be ordered 164878 75.90
28 VEIL HOLDER SC 10A872 2.20
29 ROLLER W 190196 1.10
30 ROLLER MUG COLOR (B) *Cannot be ordered 191056 11.00
31 ROLLER BALL BEARINGS 10E353 12.10
32 ROLLER COLLAR (B) 191055 4.40
33 LINE ROLLER *Cannot be ordered 179138 8.80
34 ROLLER COLLAR (A) 191054 3.30
35 ROLLER MUG COLOR (A) *Cannot be ordered 191053 12.10
36 ARM LEVER 101406 15.40
37 ROLLER SC 187084 2.20
38 ARM LEVER SC COLOR 110012 2.20
39 ARM LEVER SC 10A872 2.20
40 ARM LEVER SHAFT *Discontinued 122145 2.20
41 ROTOR NUT BEARING COLLAR 110159 3.30
42 ARM LEVER SHAFT PLATE 160716 3.30
43 ARM LEVER SP 133897 2.20
44 ARM LEVER SP HOLDER 110300 2.20
45 ARM LEVER SP COVER 108096 3.30
46 COVER SC 10A871 2.20
47 KICK LEVER SP 133861 2.20
48 KICK LEVER 111147 4.40
49 KICK LEVER SC 10A870 2.20
50 INFINITE COVER (A) *Cannot be ordered 162185 12.10
51 INFINITE COVER O-RING 10J087 1.10
52 INFINITE COVER (A) *Cannot be ordered 108A03 15.40
53 MUG SHIELD PLATE *Cannot be ordered 114083 23.10
54 MAG SHIELD PLATE O RING 10J096 1.10
55 MAG SHIELD PLATE W 190953 2.20
56 ONE-WAY CLUTCH PLATE (A) 160743 2.20
57 ONE-WAY CLUTCH PLATE (B) 160A04 2.20
58 ONE WAY CLUTCH *Cannot be ordered 114045 26.40
59 CLUTCH RING 110125 9.90
60 PINION BEARING PLATE SC 10A499 2.20
61 PINION BEARING PLATE 160461 2.20
62 PINION BALL BEARING (A) 10E363 15.40
63 PINION + DRIVE GEAR SET *Cannot be ordered 138913 110.00
64 PINION BEARING (B) SP/W 190749 1.10
65 PINION BALL BEARING (B) 10E361 15.40
66 PINION COLLAR 110923 3.30
67 BODY *Cannot be ordered 166A10 79.20
68 OSCILLATING POST 155313 2.20
69 MAIN SHAFT *Cannot be ordered 171518 34.10
70 HANDLE CAP 151204 15.40
71 HANDLE CAP O RING 185077 2.20
72 DRIVE BEARING COVER 168A03 30.80
73 DRIVE BEARING COLLAR 110158 2.20
74 SET PLATE *Cannot be ordered 137248 30.80
75 SET PLATE O-RING 10J152 1.10
76 DRIVE BALL BEARING *Cannot be ordered 10E389 45.10
77 IDLE GEAR O-RING (A) 10J136 1.10
78 IDLE GEAR O-RING (B) 10J067 1.10
79 IDLE GEAR *Cannot be ordered 106151 24.20
80 DRIVE BALL BEARING *Cannot be ordered 10E389 45.10
81 DRIVE BEARING W 190761 1.10
82 BODY COVER O-RING 10J102 1.10
83 BODY COVER *Cannot be ordered 168A07 60.50
84 HANDLE 1H2A20 169.40
85 VEIL KICK COLOR SC 10A060 2.20
86 VEIL KICK COLLAR 110999 3.30
87 OSCILLATING GEAR (A) W 190072 1.10
88 OSCILLATING GEAR (A) *Cannot be ordered 106150 9.90
89 OSCILLATING GEAR (A) O-RING 10J012 1.10
90 OSCILLATING GEAR BEARING W 190711 1.10
91 OSCILLATING GEAR BALL BEARING 10E211 8.80
92 OSCILLATING GEAR SC 10A922 2.20
93 REAR CAP GASKET 185218 3.30
94 REAR CAP 116701 8.80
95 REAR CAP SC 10A160 2.20
96 KICK LEVER W 190057 1.10
97 ROLLER MUG COLOR (A) W 190057 1.10
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB BALL BEARING 10E313 15.40
202 HANDLE KNOB 1H1479 29.70
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP (O-RING ATTACHED) 116720 24.20
205 HANDLE KNOB CAP O RING 10J083 1.10
