[DAIWA] Genuine Spare Parts for 21 FREAMS LT2500-XH Product code: 00060266 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 21 FREAMS LT2500-XH Product code: 00060266 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$39.27 [Regular Price: US$1.10 - US$56.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.6 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5173

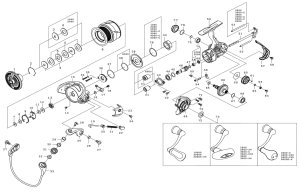

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139761 12.10
2 DRAG RING 185237 2.20
3 DRAG DISC W 142179 2.20
4 DRAG W SET (3 piece) 144225 19.80
5 DRAG GRIP W 143091 2.20
6 SPOOL (2-6) 12800 56.10
7 SPOOL W (A) 190602 1.10
8 SPOOL W (B) 190A49 1.10
9 CLICKLEAF SP 133857 2.20
10 CLICK HOLDER 116819 2.20
11 CLICK HOLDER W 190A50 1.10
12 ROTOR NUT PACKING 185203 3.30
13 ROTOR NUT 140333 3.30
14 ROTOR NUT SC 10A748 2.20
15 ROTOR *Cannot be ordered 188B30 16.50
16 KICK LEVER SP 133861 2.20
17 KICK LEVER 111177 3.30
18 KICK LEVER SC 10A870 2.20
19 ARM LEVER SHAFT 122635 2.20
20 ARM LEVER SHAFT PLATE 160716 3.30
21 ARM LEVER SP 133999 2.20
22 ARM LEVER SP HOLDER 110056 2.20
23 ARM LEVER SP COVER 108A32 3.30
24 COVER SC 10AA13 2.20
25 ARM LEVER 101463 6.60
26 ARM LEVER SC COLOR 110055 2.20
27 ARM LEVER SC 10AA14 2.20
28 ROLLER SC 152124 2.20
29 ROLLER COLLAR (A) 191030 2.20
30 ROLLER COLLAR (B) 191029 2.20
31 LINE ROLLER 179147 7.70
32 ROLLER COLLAR (C) 191065 2.20
33 VEIL 164893 24.20
34 MAG SHIELD PLATE SC 10A741 2.20
35 PLATE SC/W 190621 1.10
36 MAG SHIELD PLATE *Cannot be ordered 114122 23.10
37 MAG SHIELD PLATE O RING 10J143 1.10
39 MUG SHIELD CAP *Cannot be ordered 108132 3.30
40 ONE WAY CLUTCH *Cannot be ordered 114119 26.40
41 CLUTCH RING *Cannot be ordered 110A62 6.60
42 PINION BEARING PLATE SC 10A059 2.20
43 PINION BEARING PLATE 182269 2.20
44 PINION BALL BEARING (A) 10E210 8.80
45 PINION BALL BEARING (A) W 190137 1.10
46 PINION *Cannot be ordered 154660 6.60
47 PINION BALL BEARING (B) W 190014 1.10
48 PINION BALL BEARING (B) 10E337 8.80
50 BODY *Cannot be ordered 166B65 26.40
51 MAIN SHAFT *Cannot be ordered 171552 8.80
52 OSCILLATING POST (A) 155339 2.20
53 OSCILLATING POST (B) 155338 2.20
54 STOPPER CAM 194186 2.20
55 STOPPER CAM LEAF SP 133886 2.20
56 STOPPER LEVER 196408 2.20
57 REAR CAP 116845 4.40
58 REAR CAP SC 10AA13 2.20
59 OSCILLATING GEAR W 190958 1.10
60 OSCILLATING GEAR 106138 3.30
61 OSCILLATING GEAR O-RING 10J113 1.10
62 OSCILLATING GEAR BEARING W 190854 1.10
63 OSCILLATING GEAR BALL BEARING 10E295 8.80
64 OSCILLATING GEAR SC 10A058 2.20
65 DRIVE GEAR O-RING 10J071 1.10
66 DRIVE GEAR *Cannot be ordered 138989 12.10
67 DRIVE W 190509 1.10
68 DRIVE BALL BEARING (A) 10E210 8.80
69 BODY COVER 168B92 15.40
70 BODY COVER SC (A) 10AA15 2.20
71 BODY COVER SC (B) 10AA16 2.20
72 HANDLE PACKING 185206 3.30
73 HANDLE 1H2A78 53.90
74 DRIVE BALL BEARING (B) 10E381 8.80
75 DRIVE BEARING RING 185116 2.20
76 HANDLE CAP O-RING 185077 2.20
77 HANDLE CAP 151210 4.40
78 ONE-WAY CLUTCH W 190A44 1.10
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLOR 110411 2.20
202 HANDLE KNOB 1H1707 17.60
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116754 2.20
300 LINE STOPPER 177082 2.20
301 LINE STOPPER PLATE 160A62 2.20
302 LINE STOPPER SPRING 133A01 2.20
