[DAIWA] Genuine Spare Parts for 18 FREAMS LT3000D-C Product code: 00057051 **Back-order (Shipping in 3-4 weeks after receiving order)
[DAIWA] Genuine Spare Parts for 18 FREAMS LT3000D-C Product code: 00057051 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$39.27 [Regular Price: US$1.10 - US$56.10]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

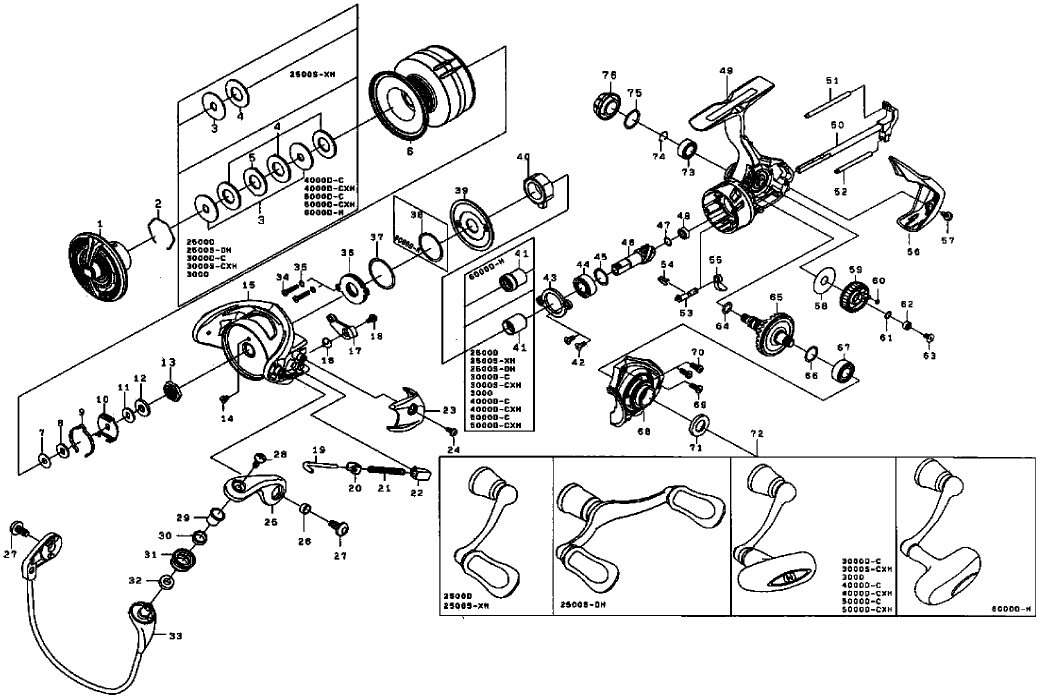

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOB | 139761 | 12.10 |
2 | DRAG RING | 185237 | 2.20 |
3 | DRAG DISC W | 142165 | 2.20 |
4 | DRAG W SET (3 piece) | 144225 | 19.80 |
5 | DRAG GRIP W | 143091 | 2.20 |
6 | SPOOL (2-6) | 128B99 | 56.10 |
7 | SPOOL W (A) | 190602 | 1.10 |
8 | SPOOL W (B) | 190A49 | 1.10 |
9 | CLICKLEAF SP | 133A50 | 2.20 |
10 | CLICK HOLDER | 116819 | 2.20 |
11 | CLICK HOLDER W | 190A50 | 1.10 |
12 | ROTOR NUT PACKING | 185203 | 3.30 |
13 | ROTOR NUT | 140333 | 3.30 |
14 | ROTOR NUT SC | 10A748 | 2.20 |
15 | ROTOR *Cannot be ordered | 188A51 | 16.50 |
16 | KICK LEVER SP | 133861 | 2.20 |
17 | KICK LEVER | 111154 | 3.30 |
18 | KICK LEVER SC | 10A870 | 2.20 |
19 | ARM LEVER SHAFT*Not available | 122161 | 2.20 |
20 | ARM LEVER SHAFT PLATE | 160716 | 3.30 |
21 | ARM LEVER SP | 133864 | 2.20 |
22 | ARM LEVER SP HOLDER | 110056 | 2.20 |
23 | ARM LEVER SP COVER | 108110 | 3.30 |
24 | COVER SC | 10AA13 | 2.20 |
25 | ARM LEVER | 101428 | 6.60 |
26 | ARM LEVER SC COLOR | 110055 | 2.20 |
27 | ARM LEVER SC | 10AA14 | 2.20 |
28 | ROLLER SC | 152124 | 2.20 |
29 | ROLLER COLLAR (A) | 191030 | 2.20 |
30 | ROLLER COLLAR (B) | 191029 | 2.20 |
31 | LINE ROLLER | 179144 | 7.70 |
32 | ROLLER COLLAR (C) | 191065 | 2.20 |
33 | VEIL | 164853 | 23.10 |
34 | MAG SHIELD PLATE SC | 10A741 | 2.20 |
35 | PLATE SC/W | 190621 | 1.10 |
36 | MAG SHIELD PLATE *Cannot be ordered | 114122 | 23.10 |
37 | MAG SHIELD PLATE O RING | 10J143 | 1.10 |
39 | MUG SHIELD CAP *Cannot be ordered | 108132 | 3.30 |
40 | ONE WAY CLUTCH *Cannot be ordered | 114119 | 26.40 |
41 | CLUTCH RING *Cannot be ordered | 110A62 | 6.60 |
42 | PINION BEARING PLATE SC | 10A059 | 2.20 |
43 | PINION BEARING PLATE | 182269 | 2.20 |
44 | PINION BALL BEARING (A) | 10E210 | 8.80 |
45 | PINION BALL BEARING (A) W | 190137 | 1.10 |
46 | PINION *Cannot be ordered | 154659 | 6.60 |
47 | PINION BALL BEARING (B) W | 190014 | 1.10 |
48 | PINION BALL BEARING (B) | 10E337 | 8.80 |
49 | BODY *Cannot be ordered | 166A50 | 26.40 |
50 | MAIN SHAFT | 171561 | 8.80 |
51 | OSCILLATING POST (A) | 155339 | 2.20 |
52 | OSCILLATING POST (B) | 155338 | 2.20 |
53 | STOPPER CAM | 194186 | 2.20 |
54 | STOPPER CAM LEAF SP | 133886 | 2.20 |
55 | STOPPER LEVER | 196408 | 2.20 |
56 | REAR CAP | 116752 | 4.40 |
57 | REAR CAP SC | 10AA13 | 2.20 |
58 | OSCILLATING GEAR W | 190958 | 1.10 |
59 | OSCILLATING GEAR | 106139 | 3.30 |
60 | OSCILLATING GEAR O-RING | 10J113 | 1.10 |
61 | OSCILLATING GEAR BEARING W | 190854 | 1.10 |
62 | OSCILLATING GEAR BALL BEARING | 10E295 | 8.80 |
63 | OSCILLATING GEAR SC | 10A058 | 2.20 |
64 | DRIVE GEAR O-RING | 10J071 | 1.10 |
65 | DRIVE GEAR *Cannot be ordered | 138988 | 12.10 |
66 | DRIVE W | 190136 | 1.10 |
67 | DRIVE BALL BEARING (A) | 10E210 | 8.80 |
68 | BODY COVER | 168A56 | 15.40 |
69 | BODY COVER SC (A) | 10AA15 | 2.20 |
70 | BODY COVER SC (B) | 10AA16 | 2.20 |
71 | HANDLE PACKING | 185206 | 3.30 |
72 | HANDLE | 1H2A78 | 53.90 |
73 | DRIVE BALL BEARING (B) | 10E381 | 8.80 |
74 | DRIVE BEARING RING | 185116 | 2.20 |
75 | HANDLE CAP O-RING | 185077 | 2.20 |
76 | HANDLE CAP | 151210 | 4.40 |
77 | ONE-WAY CLUTCH W | 190A44 | 1.10 |
200 | HANDLE KNOB W | 190196 | 1.10 |
201 | HANDLE KNOB COLOR | 110411 | 2.20 |
202 | HANDLE KNOB | 1H1707 | 17.60 |
203 | HANDLE KNOB SC | 10A333 | 2.20 |
204 | HANDLE KNOB CAP | 116754 | 2.20 |
300 | LINE STOPPER | 177082 | 2.20 |
301 | LINE STOPPER PLATE | 160B28 | 2.20 |
302 | LINE STOPPER SPRING | 133A01 | 2.20 |
