[DAIWA] Genuine Spare Parts for 19 CERTATE LT3000-CXH Product code: 00060048 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19 CERTATE LT3000-CXH Product code: 00060048 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$93.17 [Regular Price: US$1.10 - US$133.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4604

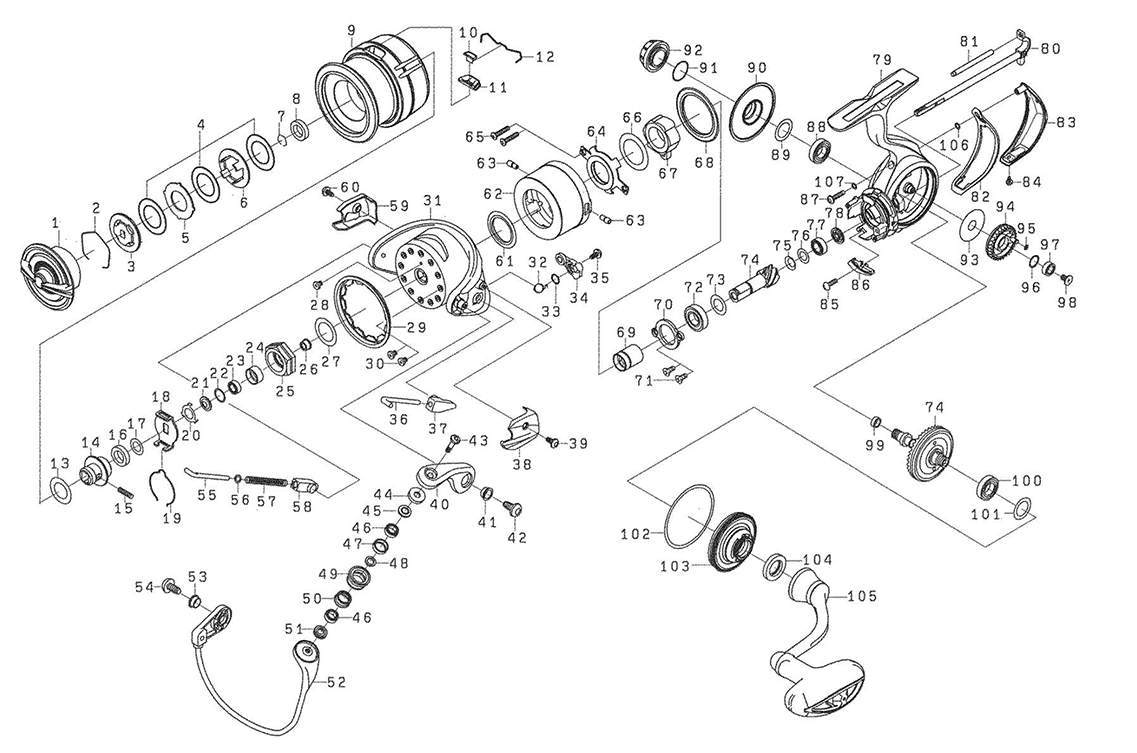

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 6J775201 30.80
2 DRAG RINGS 6J556701 2.20
3 DRAG METAL (A) 6J556601 6.60
4 DRAG W SET (3 piece) 6J679101 19.80
5 DRAG LIP W 6J561201 1.10
6 DRAG METAL (B) 6J556501 2.20
7 SPOOL COLOR RING 6B358702 2.20
8 SPOOL COLLAR 6J546701 2.20
9 SPOOL (2-12) 6J774901 133.10
10 LINE STOPPER 6J558001 2.20
11 LINE STOPPER PLATE 6J558101 2.20
12 LINE STOPPER SPRING 6J314801 2.20
13 SPOOL W 6J546301 1.10
14 SPOOL METAL 6J549501 9.90
15 SPOOL METAL SC 6J558201 2.20
16 SPOOL METAL COLLAR 6H624801 2.20
17 SPOOL METAL W 6J602201 1.10
18 CLICK HOLDER 6M021401 2.20
19 CLICK LEAF SP 6Z026045 2.20
20 ROTOR NUT PLATE 6G471501 2.20
21 ROTOR NUT PACKING 6J729101 2.20
22 ROTOR NUT BEARING W 63755202 1.10
23 ROTOR NUT BALL BEARING 6H959602 15.40
24 ROTOR NUT BEARING COLLAR 6J690201 4.40
25 ROTOR NUT 6J253001 8.80
26 ROTOR NUT COLLAR 6J808501 3.30
27 ROTOR NUT W 63712836 1.10
28 ROTOR NUT SC 6H022701 2.20
29 ROTOR COVER 6J257101 3.30
30 ROTOR COVER SC 6H022701 2.20
31 ROTOR *Cannot be ordered 6J254307 50.60
32 KICK LEVER SP 6J435201 2.20
33 KICK LEVER W 6J339502 1.10
34 KICK LEVER 6J254401 8.80
35 KICK LEVER SC 6H417701 2.20
36 ARM LEVER SHAFT 6J254601 3.30
37 ARM LEVER SHAFT HOLDER 6J254701 2.20
38 ARM LEVER COVER 6J255103 6.60
39 COVER SC 6J255201 2.20
40 ARM LEVER 6J254807 15.40
41 ARM LEVER SC COLLAR 6J254901 2.20
42 ARM LEVER SC 6J255001 2.20
43 ROLLER SC 6J257001 3.30
44 ROLLER COLLAR (A) 6J538001 2.20
45 ROLLER MAG. COLLAR (A) *Cannot be ordered 6J538401 12.10
46 ROLLER BALL BEARING 6J256702 15.40
47 ROLLER COLLAR (B) 6J256601 3.30
48 ROLLER COLLAR (C) 6J256301 2.20
49 LINE ROLLER *Cannot be ordered 6J256501 8.80
50 ROLLER COLLAR (D) 6J256401 4.40
51 ROLLER MAG COLLAR (B) *Cannot be ordered 6J537801 12.10
52 BAIL *Cannot be ordered 6J891101 60.50
53 BAIL HOLDER SC COLLAR 6J254901 2.20
54 BAIL HOLDER SC 6J255001 2.20
55 BAIL SHAFT 6G471803 3.30
56 BAIL SHAFT W 6G685401 1.10
57 BAIL SHAFT SP 6J255301 2.20
58 BAIL SHAFT SP HOLDER 6G471602 2.20
59 BAIL HOLDER COVER 6J255903 6.60
60 BAIL HOLDER COVER SC 6J255201 2.20
61 MAG-SHIELD CAP PACKING (A) 6J554901 2.20
62 MAG SHIELD CAP *Cannot be ordered 6J774702 12.10
63 MAG SHIELD CAP SC 6J782101 2.20
64 MAG SHIELD PLATE *Cannot be ordered 6J553802 23.10
65 MAGSHIELD PLATE SC 6H842807 2.20
66 ONE-WAY CLUTCH W 6H502204 1.10
67 ONE-WAY CLUTCH *Cannot be ordered 6H412602 26.40
68 MAGSHIELD CAP PACKING (B) 6J553701 2.20
69 CLUTCH RING *Cannot be ordered 6J774801 7.70
70 PINION BEARING PLATE 6J552102 2.20
71 PINION BEARING PLATE SC 6J552202 2.20
72 PINION BALL BEARING (A) 6G279602 15.40
73 PINION BEARING (A) W 63758502 1.10
74 PINION + DRIVE GEAR SET *Cannot be ordered 6Z024670 77.00
75 PINION BEARING (B) SP・W 6H814901 1.10
76 PINION BEARING (B) W 6E096501 1.10
77 PINION BALL BEARING (B) 6G538007 15.40
78 PINION COLLAR *Cannot be ordered 6J552001 3.30
79 BODY *Cannot be ordered 6J773301 46.20
80 MAIN SHAFT *Cannot be ordered 6J773601 16.50
81 OSCILLATING POST 6J774301 2.20
82 REAR CAP PACKING 6J774401 3.30
83 REAR CAP 6J774501 8.80
84 REAR CAP SC 6J774601 2.20
85 BAIL KICK COLLAR SC 6H158201 2.20
86 BAIL KICK COLLAR 6J571801 2.20
87 REAR CAP SC 6J553603 2.20
88 DRIVE BALL BEARING (A) 6G818902 15.40
89 DRIVE BEARING (A) W 6J555501 1.10
90 DRIVE BEARING (A) COVER *Cannot be ordered 6J774101 30.80
91 HANDLE CAP O-RING 6G399702 1.10
92 HANDLE CAP 6J555901 6.60
93 OSCILLATING GEAR W 6G610104 1.10
94 OSCILLATING GEAR *Cannot be ordered 6J601701 9.90
95 OSCILLATING GEAR O-RING 6G869601 1.10
96 OSCILLATING GEAR BEARING W 6H129201 1.10
97 OSCILLATING GEAR BALL BEARING 6G686904 15.40
98 OSCILLATING GEAR SC 6G940403 2.20
99 DRIVE GEAR BEARING 6J552701 2.20
100 DRIVE BALL BEARING (B) 6H739702 15.40
101 DRIVE BALL BEARING (B) W 6G613401 1.10
102 ENGINE PLATE O-RING 6J553001 1.10
103 ENGINE PLATE *Cannot be ordered 6J774201 36.30
104 HANDLE PACKING 6H866201 3.30
105 HANDLE 6J775301 133.10
106 REAR CAP W 6G315302 1.10
107 REAR CAP SC/W 6G315301 1.10
200 HANDLE KNOB SP/W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469007 15.40
203 HANDLE KNOB 6J555601 24.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J555801 6.60
300 HANDLE KNOB CAP HASP PIN 6G036101 2.20
