[DAIWA] Genuine Spare Parts for 16 EM MS 3500H Product code: 00056278 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 16 EM MS 3500H Product code: 00056278 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$62.37 [Regular Price: US$1.10 - US$89.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.8 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3320

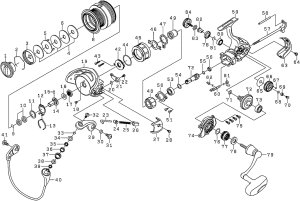

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139713 16.50
2 DRAG RINGS 185059 2.20
3 DRAG RATCHET 180161 7.70
4 DRAG W SET (3 piece) 144195 19.80
5 DRAG LIP W 190486 1.10
6 DRAG DISK W 142153 2.20
8 SPOOL (2-8) 128993 89.10
9 SPOOL METAL RING 185120 2.20
10 SPOOL METAL COLLAR 110721 2.20
11 SPOOL W 190955 1.10
12 CLICK HOLDER 116377 3.30
13 CLICK LEAF SP 133664 2.20
14 SPOOL METAL 132122 7.70
15 SPOOL METAL PIN 123171 2.20
16 ROTOR NUT PACKING 185202 2.20
17 ROTOR NUT 140302 15.40
18 ROTOR NUT SC 10A748 2.20
19 ROTOR *Cannot be ordered 188074 27.50
20 KICK LEVER SP 133861 2.20
21 KICK LEVER 111147 4.40
22 KICK LEVER SC 10A870 2.20
23 ARM LEVER SHAFT*Not available 122145 2.20
24 ARM LEVER SHAFT PLATE 160716 3.30
25 ARM LEVER SP 133897 2.20
26 ARM LEVER SP HOLDER 110300 2.20
27 ARM LEVER SP COVER 108096 3.30
28 COVER SC 10A871 2.20
29 ARM LEVER 101368 6.60
30 ARM LEVER SC COLLAR 110012 2.20
31 ARM LEVER SC 10A872 2.20
32 ROLLER SC 187082 2.20
33 ROLLER COLLAR (A) 110011 2.20
34 ROLLER PACKING 185136 3.30
35 ROLLER BALL BEARING 10E353 12.10
36 ROLLER COLLAR (B) 110010 2.20
37 LINE ROLLER 179134 7.70
38 ROLLER COLLAR (C) 191061 2.20
39 ROLLER COLLAR (D) 110017 2.20
40 BAIL 164842 36.30
41 BAIL HOLDER SC 10A872 2.20
42 MAG SHIELD *Cannot be ordered 114087 23.10
43 MAG SHIELD SC 10A923 2.20
44 MAG SHIELD O-RING 10J116 1.10
45 MAG SHIELD CAP *Cannot be ordered 108097 4.40
46 ONE-WAY CLUTCH PLATE (A) 182252 2.20
47 ONE-WAY CLUTCH PLATE (B) 160293 2.20
48 ONE-WAY CLUTCH *Cannot be ordered 114045 26.40
49 CLUTCH RING 110975 18.70
50 PINION BEARING PLATE 182248 2.20
51 PINION BEARING PLATE SC 10A936 2.20
53 PINION BALL BEARING (A) 10E263 8.80
54 PINION BEARING W (B) 190411 1.10
55 PINION BEARING (B) W 190826 1.10
56 PINION BALL BEARING (B) 10E211 8.80
57 MAIN SHAFT *Cannot be ordered 171470 12.10
58 OSCILLATING POST 155313 2.20
59 BODY *Cannot be ordered 166270 42.90
60 STOPPER CAM 194180 3.30
61 STOPPER LEVER 196390 2.20
62 STOPPER CAM LEAF SP 133886 2.20
63 REAR CAP 116631 4.40
64 REAR CAP SC 10A924 2.20
65 OSCILLATING GEAR W 190760 1.10
66 OSCILLATING GEAR O-RING *Cannot be ordered 106131 4.40
67 OSCILLATING GEAR O-RING 10J012 1.10
68 OSCILLATING GEAR BEARING W 190711 1.10
69 OSCILLATING GEAR BALL BEARING 10E348 8.80
70 OSCILLATING GEAR SC 10A904 2.20
71 DRIVE GEARINGS 10F064 2.20
72 PINION + DRIVE GEAR SET *Cannot be ordered 138862 30.80
73 DRIVE BALL BEARING (A) 10E349 8.80
74 BODY COVER *Cannot be ordered 168352 24.20
75 BODY COVER SC 158096 2.20
76 DRIVE W 190761 1.10
77 DRIVE BEARING COVER SC 10A036 9.90
78 HANDLE PACKING 185207 3.30
79 HANDLE 1H2153 75.90
80 DRIVE BALL BEARING (B) 10E238 8.80
81 DRIVE BEARING RING 185120 2.20
82 HANDLE COLLAR 104023 2.20
83 HANDLE W 135010 2.20
84 HANDLE SC 152167 3.30
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR 110411 2.20
202 HANDLE KNOB SC 10A333 2.20
203 HANDLE KNOB PLATE SC 10A738 2.20
