[DAIWA] Genuine Spare Parts for 17 STEEZ TYPE-2 Hi-SPEED Product code: 00056322 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 STEEZ TYPE-2 Hi-SPEED Product code: 00056322 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$114.73 [Regular Price: US$1.10 - US$163.90]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

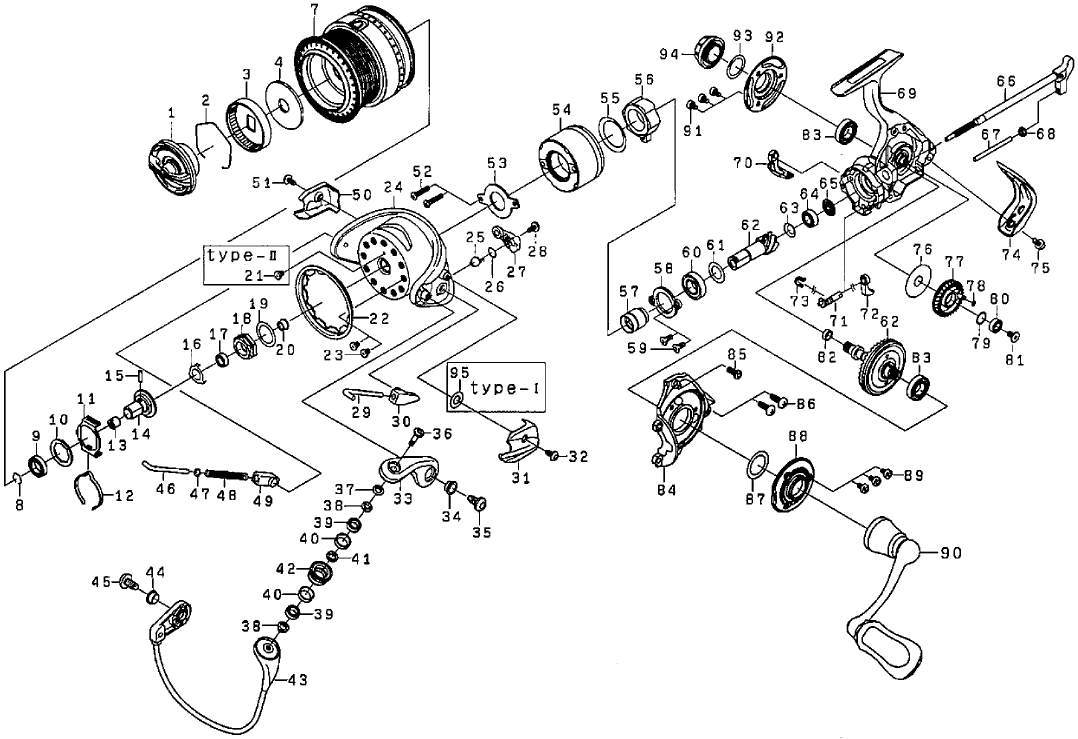

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139749 34.10
2 DRAG RINGS 185059 2.20
3 DRAG RATCHET 180244 7.70
4 DRAG W (1 piece) 144190 6.60
7 SPOOL (2-7) 128B49 163.90
8 SPOOL METAL RING 185116 2.20
9 SPOOL METAL BALL BEARING 10E326 15.40
10 SPOOL W 190976 1.10
11 CLICK HOLDER 116512 2.20
12 CLICK LEAF SP 133857 2.20
13 SPOOL METAL NUT 140312 3.30
14 SPOOL METAL 132088 6.60
15 SPOOL METAL PIN 156139 2.20
16 ROTOR NUT PLATE 160455 2.20
17 ROTOR NUT BALL BEARING 10E258 8.80
18 ROTOR NUT 140361 8.80
19 ROTOR NUT W 190411 1.10
20 ROTOR NUT COLLAR 110967 3.30
21 ROTOR NUT SC 10A748 2.20
22 ROTOR COVER 108130 3.30
23 ROTOR COVER SC 10A748 2.20
24 ROTOR 188A20 46.20
25 KICK LEVER SP 133966 2.20
26 KICK LEVER W 190057 1.10
27 KICK LEVER 111161 8.80
28 KICK LEVER SC 10A870 2.20
29 ARM LEVER SHAFT 122166 3.30
30 ARM LEVER SHAFT HOLDER 110118 2.20
31 ARM LEVER COVER 108A09 6.60
32 ARM LEVER COVER SC 10A082 2.20
33 ARM LEVER 101414 15.40
34 ARM LEVER COLLAR 110123 2.20
35 ARM LEVER COLLAR SC 10A081 2.20
36 ROLLER SC 187088 3.30
37 ROLLER W 190562 1.10
38 ROLLER COLLAR (A) 110A26 2.20
39 ROLLER BALL BEARING 10E360 15.40
40 ROLLER COLLAR (B) 191070 3.30
41 ROLLER COLLAR (C) 110119 2.20
42 LINE ROLLER *Cannot be ordered 179151 8.80
43 BAIL *Cannot be ordered 164867 57.20
44 BAIL HOLDER SC COLLAR 110123 2.20
45 BAIL HOLDER SC 10A081 2.20
46 BAIL SHAFT 122127 3.30
47 BAIL SHAFT W 190773 1.10
48 BAIL SHAFT SP 133962 2.20
49 BAIL SHAFT SP HOLDER 110628 2.20
50 BAIL HOLDER COVER 108A10 6.60
51 BALE HOLDER COVER SC 10A082 2.20
52 SHIELD PLATE SC 10A955 2.20
53 SHIELD PLATE 160A25 2.20
54 SHIELD CAP 108A16 7.70
55 ONE-WAY CLUTCH W 190A28 1.10
56 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
57 CLUTCH RING *Cannot be ordered 110959 8.80
58 PINION BEARING PLATE 182251 2.20
59 PINION BEARING PLATE SC 10A778 2.20
60 PINION BALL BEARING (A) 10E385 8.80
61 PINION BEARING (A) W 190137 1.10
62 PINION + DRIVE GEAR SET *Cannot be ordered 138696 99.00
63 PINION BEARING (B) SP・W 190991 1.10
64 PINION BALL BEARING (B) 10E384 8.80
65 PINION COLLAR 110873 3.30
66 MAIN SHAFT *Cannot be ordered 171486 19.80
67 OSCILLATING POST 155317 2.20
68 OSCILLATING POST COLLAR 110960 3.30
69 BODY *Cannot be ordered 166A31 56.10
70 BAIL KICK COLLAR 110961 2.20
71 STOPPER CAM 194181 11.00
72 STOPPER LEVER 196437 7.70
73 STOPPER CAM LEAF SP 133904 2.20
74 REAR CAP 116731 8.80
75 REAR CAP SC 10A956 2.20
76 OSCILLATING GEAR W 190977 1.10
77 OSCILLATING GEAR O-RING *Cannot be ordered 106123 8.80
78 OSCILLATING GEAR O-RING 10J068 1.10
79 OSCILLATING GEAR BEARING W 190854 1.10
80 OSCILLATING GEAR BALL BEARING 10E261 8.80
81 OSCILLATING GEAR SC 10A779 2.20
82 DRIVE GEAR BEARING 185161 2.20
83 DRIVE BALL BEARING 10E386 8.80
84 BODY COVER 168A33 28.60
85 BODY COVER SC (A) 10A957 2.20
86 BODY COVER SC (B) 10A780 2.20
87 DRIVE W 190402 1.10
88 DRIVE BEARING COVER 168A35 46.20
89 DRIVE BEARING COVER SC (L) 10A958 2.20
90 HANDLE 1H2A40 94.60
91 DRIVE BEARING COVER SC (R) 10A979 2.20
92 DRIVE BEARING COVER 168A35 46.20
93 HANDLE CAP O-RING 10J076 1.10
94 HANDLE CAP 151205 6.60
200 HANDLE KNOB SP・W 190983 1.10
201 HANDLE KNOB W 190196 1.10
202 HANDLE KNOB BALL BEARING 10E224 8.80
203 HANDLE KNOB 1H1667 24.20
204 HANDLE KNOB SC 10A997 2.20
205 HANDLE KNOB CAP 116697 6.60
