[DAIWA] Genuine Spare Parts for 17 PRESSO LTD 1025 Product code: 00055905 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 PRESSO LTD 1025 Product code: 00055905 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$112.86 [Regular Price: US$1.10 - US$188.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

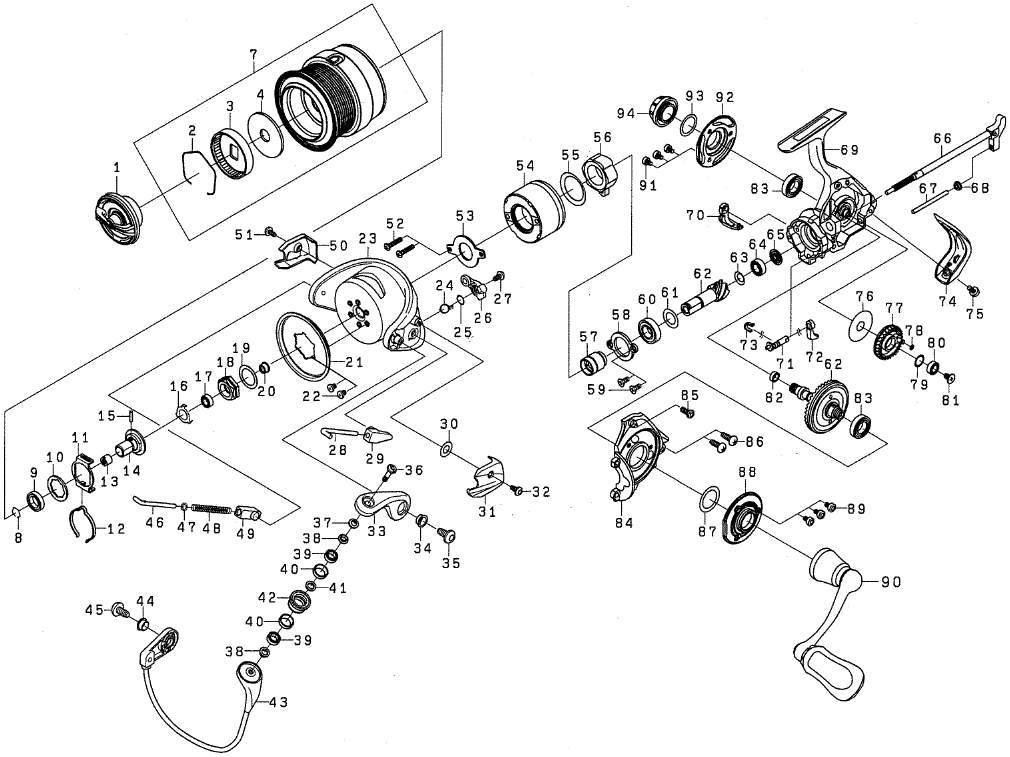

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139753 30.80
2 DRAG RINGS 185061 2.20
3 DRAG RATCHET 180255 7.70
4 DRAG W (1 piece) 144189 6.60
7 SPOOL (2-7) 128B55 188.10
8 SPOOL METAL RING 185116 2.20
9 SPOOL METAL BALL BEARING 10E326 15.40
10 SPOOL W 190976 1.10
11 CLICK HOLDER 116512 2.20
12 CLICK LEAF SP 133857 2.20
13 SPOOL METAL NUT 140312 3.30
14 SPOOL METAL 132088 6.60
15 SPOOL METAL PIN 156139 2.20
16 ROTOR NUT PLATE 160455 2.20
17 ROTOR NUT BALL BEARING 10E258 8.80
18 ROTOR NUT 140360 8.80
19 ROTOR NUT W 190322 1.10
20 ROTOR NUT COLLAR 110966 3.30
21 ROTOR COVER 162174 3.30
22 ROTOR COVER SC 10A748 2.20
23 ROTOR *Cannot be ordered 188A28 48.40
24 KICK LEVER SP 133965 2.20
25 KICK LEVER W 190057 1.10
26 KICK LEVER 111159 8.80
27 KICK LEVER SC 10A870 2.20
28 ARM LEVER SHAFT 122166 3.30
29 ARM LEVER SHAFT HOLDER 110118 2.20
30 ARM LEVER COVER W 190673 1.10
31 ARM LEVER COVER 108A14 6.60
32 COVER SC 10A082 2.20
33 ARM LEVER 101424 15.40
34 ARM LEVER SC COLLAR 110123 2.20
35 ARM LEVER SC 10A081 2.20
36 ROLLER SC 187088 3.30
37 ROLLER W 190562 1.10
38 ROLLER COLLAR (A) 110A26 2.20
39 ROLLER BALL BEARING 10E360 15.40
40 ROLLER COLLAR (B) 191070 3.30
41 ROLLER COLLAR (C) 110119 2.20
42 LINE ROLLER *Cannot be ordered 179151 8.80
43 BAIL *Cannot be ordered 164866 53.90
44 BAIL HOLDER SC COLLAR 110123 2.20
45 BAIL HOLDER SC 10A081 2.20
46 BAIL SHAFT 122127 3.30
47 BAIL SHAFT W 190773 1.10
48 BAIL SHAFT SP 133961 2.20
49 BAIL SHAFT SP HOLDER 110623 2.20
50 BAIL HOLDER COVER 108A15 6.60
51 BALE HOLDER COVER SC 10A082 2.20
52 MAG SHIELD PLATE SC 10A955 2.20
53 SHIELD PLATE 160A25 2.20
54 SHIELD CAP 108A16 7.70
55 ONE-WAY CLUTCH W 190A28 1.10
56 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
57 CLUTCH RING *Cannot be ordered 110959 8.80
58 PINION BEARING PLATE 160784 2.20
59 PINION BEARING PLATE SC 10A778 2.20
60 PINION BALL BEARING (A) 10E386 8.80
61 PINION BEARING (A) W 190137 1.10
62 PINION + DRIVE GEAR SET *Cannot be ordered 138715 99.00
63 PINION BEARING (B) SP・W 190991 1.10
64 PINION BALL BEARING (B) 10E384 8.80
65 PINION COLLAR 110873 3.30
66 MAIN SHAFT *Cannot be ordered 171480 19.80
67 OSCILLATING POST 155316 2.20
68 OSCILLATING POST COLLAR 110960 3.30
69 BODY *Cannot be ordered 166A40 56.10
70 BAIL KICK COLLAR 110956 2.20
71 STOPPER CAM 194181 11.00
72 STOPPER LEVER 196395 6.60
73 STOPPER CAM LEAF SP 133904 2.20
74 REAR CAP 116737 8.80
75 REAR CAP SC 10A953 2.20
76 OSCILLATING GEAR W 190977 1.10
77 OSCILLATING GEAR O-RING *Cannot be ordered 106098 9.90
78 OSCILLATING GEAR O-RING 10J079 1.10
79 OSCILLATING GEAR BEARING W 190854 1.10
80 OSCILLATING GEAR BALL BEARING 10E261 8.80
81 OSCILLATING GEAR SC 10A779 2.20
82 DRIVE GEAR BEARING 10J069 1.10
83 DRIVE BALL BEARING 10E386 8.80
84 BODY COVER 168A48 28.60
85 BODY COVER SC (A) 10A957 2.20
86 BODY COVER SC (B) 10A780 2.20
87 DRIVE W 190402 1.10
88 DRIVE BEARING COVER *Cannot be ordered 168A47 29.70
89 DRIVE BEARING COVER SC (L) 10A958 2.20
90 HANDLE 1H2A54 94.60
91 DRIVE BEARING COVER SC (R) 10A979 2.20
92 DRIVE BEARING COVER *Cannot be ordered 168A47 29.70
93 HANDLE CAP O-RING 10J076 1.10
94 HANDLE CAP 151205 6.60
200 HANDLE KNOB SP・W 190983 1.10
201 HANDLE KNOB W 190196 1.10
202 HANDLE KNOB BALL BEARING 10E224 8.80
203 HANDLE KNOB 1H1667 24.20
204 HANDLE KNOB SC 10A997 2.20
205 HANDLE KNOB CAP 116697 6.60
