[DAIWA] Genuine Spare Parts for 15 EMERALDAS AIR 2508PE Product code: 00055990 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 EMERALDAS AIR 2508PE Product code: 00055990 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$101.64 [Regular Price: US$1.10 - US$169.40]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

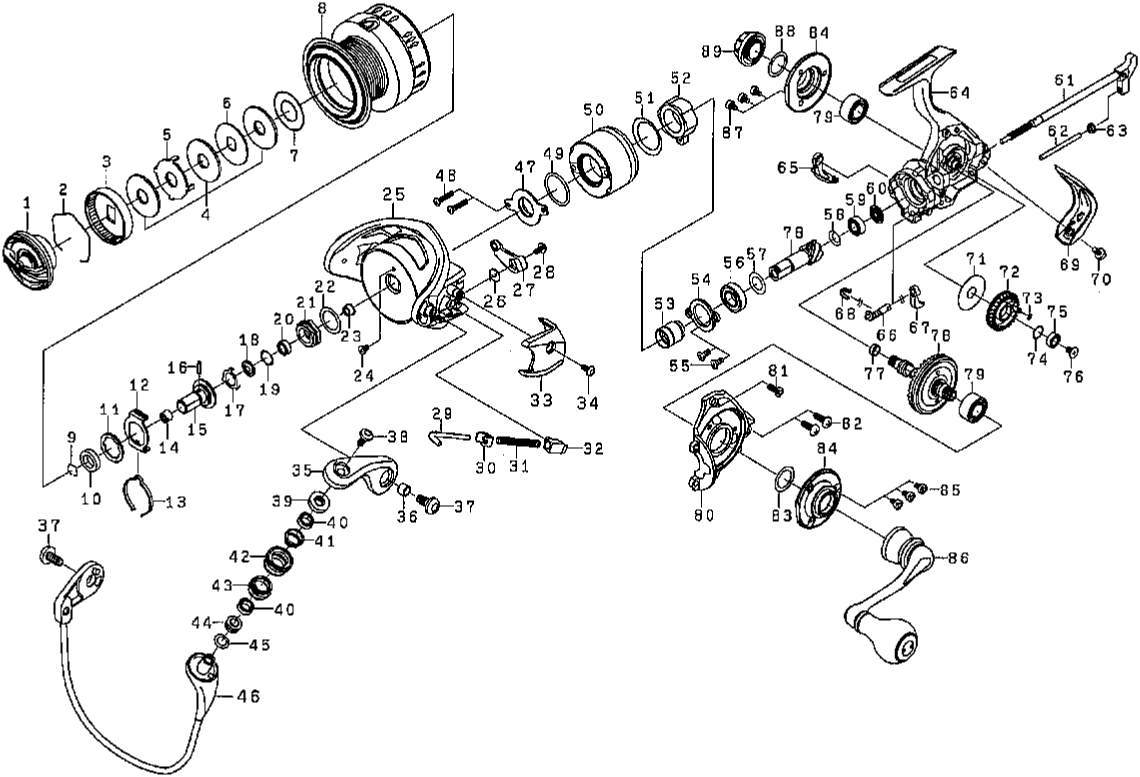

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139685 27.50
2 DRAG RINGS 185059 2.20
3 DRAG RATCHET 180244 7.70
4 DRAG W SET (3 piece) 144191 19.80
5 DRAG LIP W 190487 1.10
6 DRAG DISC W 142074 2.20
7 DRAG PLATE 160787 2.20
8 SPOOL (2-8) 128940 169.40
9 SPOOL METAL RING 185116 2.20
10 SPOOL METAL COLLAR (7 11 2.5) 110925 2.20
11 SPOOL W 190976 1.10
12 CLICK HOLDER 116512 2.20
13 CLICK LEAF SP 133857 2.20
14 SPOOL METAL NUT 140312 3.30
15 SPOOL METAL 132088 6.60
16 SPOOL METAL PIN 156139 2.20
17 ROTOR NUT PLATE 160455 2.20
18 ROTOR NUT PACKING 185157 2.20
19 ROTOR NUT BEARING W 190913 1.10
20 ROTOR NUT BALL BEARING 10E351 15.40
21 ROTOR NUT 140272 4.40
22 ROTOR NUT W 190411 1.10
23 ROTOR NUT BEARING COLLAR 110967 3.30
24 ROTOR NUT SC 10A748 2.20
25 ROTOR *Cannot be ordered 188087 24.20
26 KICK LEVER SP 133861 2.20
27 KICK LEVER 111145 4.40
28 KICK LEVER SC 10A870 2.20
29 ARM LEVER SHAFT 122141 2.20
30 ARM LEVER SHAFT PLATE 160716 3.30
31 ARM LEVER SP 133864 2.20
32 ARM LEVER SP HOLDER 110871 2.20
33 ARM LEVER SP COVER (A) 108091 3.30
34 COVER SC 10A871 2.20
35 ARM LEVER 101377 9.90
36 ARM LEVER SC COLLAR 110012 2.20
37 ARM LEVER SC 10A872 2.20
38 ROLLER SC 187082 2.20
39 ROLLER MAG COLLAR (A) *Cannot be ordered 191053 12.10
40 ROLLER BALL BEARING 10E353 12.10
41 ROLLER COLLAR (A) 191054 3.30
42 LINE ROLLER *Cannot be ordered 179138 8.80
43 ROLLER COLLAR (B) 191055 4.40
44 ROLLER MAG COLLAR (B) *Cannot be ordered 191056 11.00
45 ROLLER W 190196 1.10
46 BAIL *Cannot be ordered 164857 51.70
47 MAG SHIELD PLATE *Cannot be ordered 114112 23.10
48 MAG SHIELD PLATE SC 10A955 2.20
49 MAG SHIELD PLATE O-RING 10J143 1.10
50 MAG SHIELD CAP *Cannot be ordered 108118 18.70
51 ONE-WAY CLUTCH W 190A28 1.10
52 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
53 CLUTCH RING 110988 8.80
54 PINION BEARING PLATE 182251 2.20
55 PINION BEARING PLATE SC 10A778 2.20
56 PINION BALL BEARING (A) 10E327 15.40
57 PINION BEARING (A) W 190137 1.10
58 PINION BEARING (B) SP・W 190991 1.10
59 PINION BALL BEARING (B) 10E328 15.40
60 PINION COLLAR 110873 3.30
61 MAIN SHAFT *Cannot be ordered 171486 19.80
62 OSCILLATING POST 155317 2.20
63 OSCILLATING POST COLLAR 110960 3.30
64 BODY *Cannot be ordered 166156 56.10
65 BAIL KICK COLLAR 110961 2.20
66 STOPPER CAM 194181 11.00
67 STOPPER LEVER 196412 6.60
68 STOPPER CAM LEAF SP 133904 2.20
69 REAR CAP 116579 8.80
70 LEARNING CAP SC 10A970 2.20
71 OSCILLATING GEAR W 190977 1.10
72 OSCILLATING GEAR *Cannot be ordered 106123 8.80
73 OSCILLATING GEAR O-RING 10J068 1.10
74 OSCILLATING GEAR BEARING W 190854 1.10
75 OSCILLATING GEAR BALL BEARINGS 10E295 8.80
76 OSCILLATING GEAR SC 10A779 2.20
77 DRIVE GEAR RING 185161 2.20
78 PINION + DRIVE GEAR SET *Cannot be ordered 138830 111.10
79 DRIVE BALL BEARING *Cannot be ordered 10E383 45.10
80 BODY COVER 168190 24.20
81 BODY COVER SC (A) 10A971 2.20
82 BODY COVER SC (B) 10A780 2.20
83 DRIVE W 190752 1.10
84 DRIVE BEARING COVER *Cannot be ordered 168323 36.30
85 DRIVE BEARING COVER SC (L) 10A958 2.20
86 HANDLE 1H2118 118.80
87 DRIVE BEARING COVER SC (R) 10A979 2.20
88 HANDLE CAP O-RING 10J076 1.10
89 HANDLE CAP 151177 6.60
200 HANDLE SP-W (0.05) 190983 1.10
201 HANDLE KNOB W 190196 1.10
202 HANDLE KNOB COLLAR 110411 2.20
203 HANDLE KNOB BALL BEARING 10E313 15.40
204 HANDLE KNOB 1H1530 27.50
205 HANDLE KNOB SC 10A333 2.20
206 HANDLE KNOB CAP (WITH O-RING) 116496 15.40
207 HANDLE KNOB CAP SCREWDRIVER 199585 4.40
300 WASHER (REAL FOUR/RCS) SUS 190922 2.20
