[DAIWA] Genuine Spare Parts for 16 EMERALDAS 2508PE Product code: 00055984 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 16 EMERALDAS 2508PE Product code: 00055984 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$81.62 [Regular Price: US$1.10 - US$116.60]

Prices vary according to options.

Part Number:
Quantity:

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

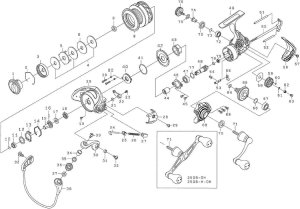

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139714 12.10
2 DRAG RINGS 185059 2.20
3 DRAG RATCHET 180158 7.70
4 DRAG W SET (3 piece) 144191 19.80
5 DRAG LIP W 190487 1.10
6 DRAG DISC W 142074 2.20
8 DRAG COLLAR 110869 2.20
9 SPOOL (2-8) 128A01 116.60
10 SPOOL METAL RING 185116 2.20
11 SPOOL METAL COLLAR 10E041 8.80
12 SPOOL W 190976 1.10
13 CLICK HOLDER 116512 2.20
14 CLICK LEAF SP 133857 2.20
15 SPOOL METAL 110972 4.40
16 SPOOL METAL PIN 156139 2.20
17 ROTOR NUT PACKING 185203 3.30
18 ROTOR NUT 140333 3.30
19 ROTOR NUT SC 10A748 2.20
20 ROTOR *Cannot be ordered 188132 22.00
21 KICK LEVER SP 133861 2.20
22 KICK LEVER 111154 3.30
23 KICK LEVER SC 10A870 2.20
24 ARM LEVER SHAFT *Cannot be ordered 122161 2.20
25 ARM LEVER SHAFT PLATE 160716 3.30
26 ARM LEVER SP 133864 2.20
27 ARM LEVER SP HOLDER 110056 2.20
28 ARM LEVER SP COVER 108110 3.30
29 ARM LEVER SP COVER SC 10A652 2.20
30 ARM LEVER 101395 4.40
31 ARM LEVER SC COLLAR 110055 2.20
32 ARM LEVER SC 10A651 2.20
33 ROLLER SC 152124 2.20
34 ROLLER COLLAR (A) 191030 2.20
35 ROLLER COLLAR (B) 191029 2.20
36 LINE ROLLER 179144 7.70
37 ROLLER COLLAR (C) 191065 2.20
38 BAIL 164853 23.10
39 MAG SHIELD PLATE SC 10A741 2.20
40 MAG SHIELD PLATE *Cannot be ordered 114122 23.10
41 MAG SHIELD PLATE O-RING 10J097 1.10
42 MAG SHIELD CAP *Cannot be ordered 108104 4.40
43 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
44 CLUTCH RING *Cannot be ordered 110A62 6.60
45 PINION BEARING PLATE SC 10A059 2.20
46 PINION BEARING PLATE 182244 2.20
47 PINION BALL BEARING (A) 10E210 8.80
48 PINION *Cannot be ordered 154627 8.80
49 BODY *Cannot be ordered 166271 17.60
50 MAIN SHAFT *Cannot be ordered 171505 7.70
51 OSCILLATING POST (A) 155339 2.20
52 OSCILLATING POST (B) 155338 2.20
53 STOPPER CAM 194186 2.20
54 STOPPER CAM LEAF SP 133886 2.20
55 STOPPER LEVER 196408 2.20
56 REAR CAP 116663 3.30
57 REAR CAP SC 10A652 2.20
58 OSCILLATING GEAR W 190958 1.10
59 OSCILLATING GEAR *Cannot be ordered 106139 3.30
60 OSCILLATING GEAR O-RING 10J113 1.10
61 OSCILLATING GEAR BEARING W 190854 1.10
62 OSCILLATING GEAR BALL BEARINGS 10E295 8.80
63 OSCILLATING GEAR SC 10A058 2.20
64 DRIVE GEAR O-RING 10J071 1.10
65 DRIVE GEAR *Cannot be ordered 138816 8.80
66 DRIVE W 190509 1.10
67 DRIVE BALL BEARING (A) 10E210 8.80
68 BODY COVER *Cannot be ordered 168355 15.40
69 BODY COVER SC 123164 2.20
70 HANDLE PACKING 185206 3.30
71 HANDLE 1H2154 79.20
72 DRIVE BALL BEARING (B) 10E257 8.80
73 DRIVE BEARING RING 185116 2.20
74 HANDLE COLLAR 104014 2.20
75 HANDLE W 134001 2.20
76 HANDLE SC 152170 3.30
77 PINION BEARING (A) W 190137 1.10
78 PINION BEARING (B) SP, W 190014 1.10
79 PINION BALL BEARING (B) 10E337 8.80
80 MAG SHIELD SC・W 190621 1.10
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR (4 7 2.5) 110411 2.20
202 HANDLE KNOB 1H1530 27.50
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP (WITH O-RING) 116682 15.40
205 HANDLE KNOB CAP O-RING 10J083 1.10
300 WASHER (REAL FOUR/RCS) SUS 190922 2.20
301 SCREWDRIVER (HANDLE KNOB CAP) 199585 4.40
