[DAIWA] Genuine Spare Parts for 21 EMERALDAS AIR FC LT2500S-DH Product code: 00060311 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$93.17 [Regular Price: US$1.10 - US$133.10]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4958

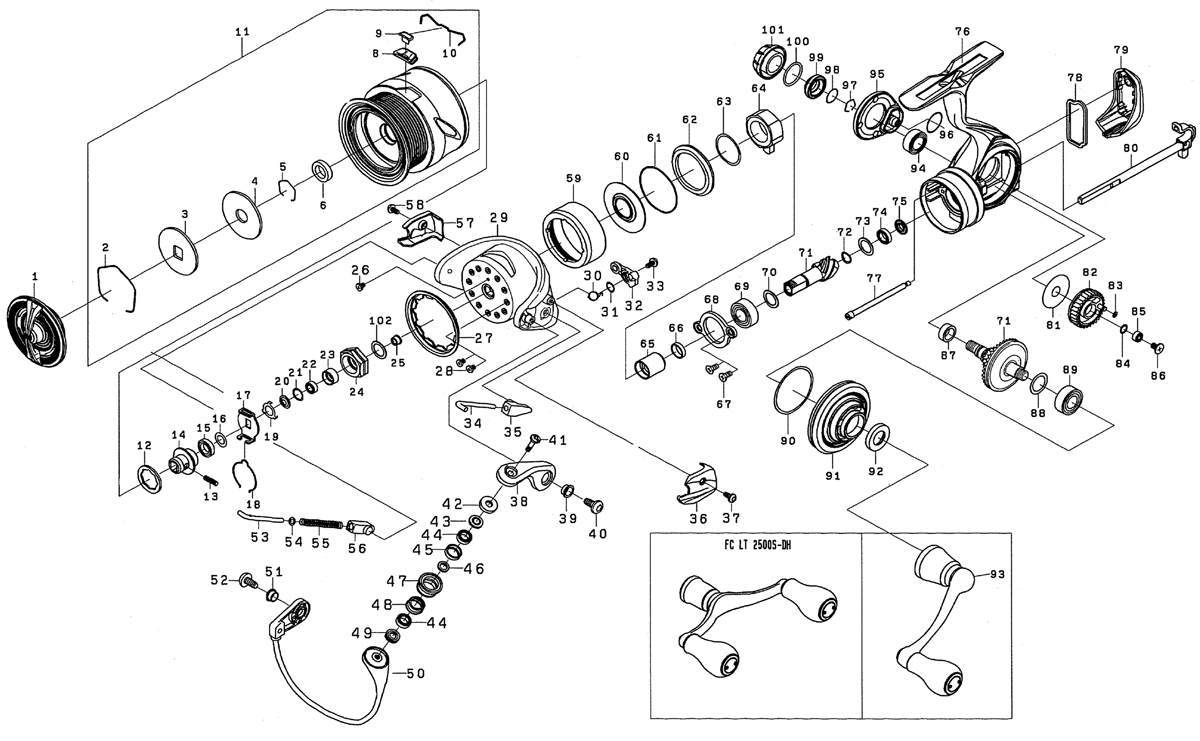

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOBS | 139765 | 16.50 |
2 | DRAG RINGS | 185228 | 2.20 |
3 | DRAG DISK W | 142165 | 2.20 |
4 | DRAG W (1 piece) | 144226 | 6.60 |
5 | SPOOL COLLAR RING | 185016 | 2.20 |
6 | SPOOL BALL BEARING | 10E367 | 15.40 |
8 | LINE STOPPER PLATE | 160A54 | 2.20 |
9 | LINE STOPPER | 177080 | 2.20 |
10 | LINE STOPPER SPRING | 133996 | 2.20 |
11 | SPOOL (2-10) | 128E14 | 133.10 |
12 | SPOOL METAL W | 190A35 | 1.10 |
13 | SPOOL METAL SC | 10AA03 | 2.20 |
14 | SPOOL METAL | 132133 | 9.90 |
15 | SPOOL METAL BALL BEARING | 10E041 | 8.80 |
16 | SPOOL W | 190A34 | 1.10 |
17 | CLICK HOLDER | 116819 | 2.20 |
18 | CLICK LEAF SP | 133857 | 2.20 |
19 | ROTOR NUT PLATE | 160455 | 2.20 |
20 | ROTOR NUT PACKING | 185235 | 2.20 |
21 | ROTOR NUT BEARING W | 190429 | 1.10 |
22 | ROTOR NUT BALL BEARING | 10E351 | 15.40 |
23 | ROTOR NUT BEARING COLLAR | 110B27 | 4.40 |
24 | ROTOR NUT | 140328 | 8.80 |
25 | ROTOR NUT COLLAR | 110A54 | 3.30 |
26 | ROTOR NUT SC | 10A748 | 2.20 |
27 | ROTOR COVER | 162209 | 3.30 |
28 | ROTOR COVER SC | 10A748 | 2.20 |
29 | ROTOR *Cannot be ordered | 188B35 | 44.00 |
30 | KICK LEVER SP | 133966 | 2.20 |
31 | KICK LEVER W | 190057 | 1.10 |
32 | KICK LEVER | 111174 | 8.80 |
33 | KICK LEVER SC | 10A870 | 2.20 |
34 | ARM LEVER SHAFT | 122166 | 3.30 |
35 | ARM LEVER SHAFT HOLDER | 110118 | 2.20 |
36 | ARM LEVER COVER | 108A50 | 7.70 |
37 | COVER SC | 10A082 | 2.20 |
38 | ARM LEVER | 101464 | 15.40 |
39 | ARM LEVER SC COLLAR | 110123 | 2.20 |
40 | ARM LEVER SC | 10A081 | 2.20 |
41 | ROLLER SC | 187088 | 3.30 |
42 | ROLLER COLLAR (A) | 110A47 | 2.20 |
43 | ROLLER MAG. COLLAR (A) *Cannot be ordered | 191072 | 12.10 |
44 | ROLLER BALL BEARING | 10E400 | 15.40 |
45 | ROLLER COLLAR (B) | 191069 | 3.30 |
46 | ROLLER COLLAR (C) | 110119 | 2.20 |
47 | LINE ROLLER *Cannot be ordered | 179151 | 8.80 |
48 | ROLLER COLLAR (D) | 191068 | 4.40 |
49 | ROLLER MAG COLLAR (B) *Cannot be ordered | 191071 | 12.10 |
50 | BAIL *Cannot be ordered | 164918 | 60.50 |
51 | BAIL HOLDER SC COLLAR | 110123 | 2.20 |
52 | BAIL HOLDER SC | 10A081 | 2.20 |
53 | BAIL SHAFT | 122127 | 3.30 |
54 | BAIL SHAFT W | 190773 | 1.10 |
55 | BAIL SHAFT SP | 133A63 | 2.20 |
56 | BAIL SHAFT SP HOLDER | 110623 | 2.20 |
57 | BAIL HOLDER COVER | 108A51 | 7.70 |
58 | BALE HOLDER COVER SC | 10A082 | 2.20 |
59 | MAG SHIELD CAP *Cannot be ordered | 108A78 | 8.80 |
60 | MAG SHIELD PLATE *Cannot be ordered | 114144 | 23.10 |
61 | MAG SHIELD PLATE O-RING | 10J181 | 1.10 |
62 | MAG SHIELD PLATE COLLAR | 110B16 | 2.20 |
63 | ONE-WAY CLUTCH W | 190A44 | 1.10 |
64 | ONE-WAY CLUTCH *Cannot be ordered | 114149 | 26.40 |
65 | CLUTCH RING *Cannot be ordered | 110A59 | 7.70 |
66 | CLUTCH RING COLLAR | 110A45 | 2.20 |
67 | PINION BEARING PLATE SC | 10A778 | 2.20 |
68 | PINION BEARING PLATE | 182286 | 2.20 |
69 | PINION BALL BEARING (A) | 10E385 | 8.80 |
70 | PINION BEARING (A) W | 190137 | 1.10 |
71 | PINION + DRIVE GEAR SET *Cannot be ordered | 138B47 | 77.00 |
72 | PINION BEARING (B) SP・W | 190A79 | 1.10 |
73 | PINION BEARING (B) W | 193014 | 1.10 |
74 | PINION BALL BEARING (B) | 10E209 | 8.80 |
75 | PINION COLLAR *Cannot be ordered | 110A42 | 3.30 |
76 | BODY *Cannot be ordered | 166B69 | 44.00 |
77 | REAR CAP SC | 10AB05 | 6.60 |
78 | REAR CAP PACKING | 185259 | 2.20 |
79 | REAR CAP *Cannot be ordered | 116822 | 8.80 |
80 | MAIN SHAFT *Cannot be ordered | 171591 | 36.30 |
81 | OSCILLATING GEAR W | 190A47 | 1.10 |
82 | OSCILLATING GEAR O-RING *Cannot be ordered | 106160 | 9.90 |
83 | OSCILLATING GEAR O-RING | 10J078 | 1.10 |
84 | OSCILLATING GEAR BEARING W | 190854 | 1.10 |
85 | OSCILLATING GEAR BALL BEARING | 10E401 | 15.40 |
86 | OSCILLATING GEAR SC | 10A779 | 2.20 |
87 | DRIVE GEAR BEARINGS | 185231 | 2.20 |
88 | DRIVE BEARING (A)W | 190A90 | 1.10 |
89 | DRIVE BALL BEARING (A) | 10E381 | 8.80 |
90 | ENGINE PLATE O-RING | 10J162 | 1.10 |
91 | ENGINE PLATE *Cannot be ordered | 168B96 | 36.30 |
92 | HANDLE PACKING | 185189 | 3.30 |
93 | HANDLE | 1H2C28 | 115.50 |
94 | DRIVE BALL BEARING (B) | 10E381 | 8.80 |
95 | SET PLATE *Cannot be ordered | 137294 | 9.90 |
96 | SET PLATE O-RING | 10J120 | 2.20 |
97 | DRIVE BEARING (B) RING | 185116 | 2.20 |
98 | DRIVE BEARING (B) O-RING | 10J101 | 1.10 |
99 | DRIVE BEARING COVER *Cannot be ordered | 168B95 | 12.10 |
100 | HANDLE CAP O-RING | 10J076 | 1.10 |
101 | HANDLE CAP | 151225 | 6.60 |
102 | ROTOR NUT W | 190411 | 1.10 |
200 | HANDLE KNOB SP-W | 190983 | 1.10 |
201 | HANDLE KNOB W | 190196 | 1.10 |
202 | HANDLE KNOB COLLAR | 110411 | 2.20 |
203 | HANDLE KNOB | 1H1719 | 19.80 |
204 | HANDLE KNOB BALL BEARING | 10E224 | 8.80 |
205 | HANDLE KNOB SC | 10A333 | 2.20 |
206 | HANDLE KNOB CAP (WITH O-RING) | 116777 | 15.40 |
207 | HANDLE KNOB O-RING | 10J083 | 1.10 |
