[DAIWA] Genuine Spare Parts for 21 EMERALDAS AIR FC LT2500S Product code: 00060310 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 21 EMERALDAS AIR FC LT2500S Product code: 00060310 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$93.17 [Regular Price: US$1.10 - US$133.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4958

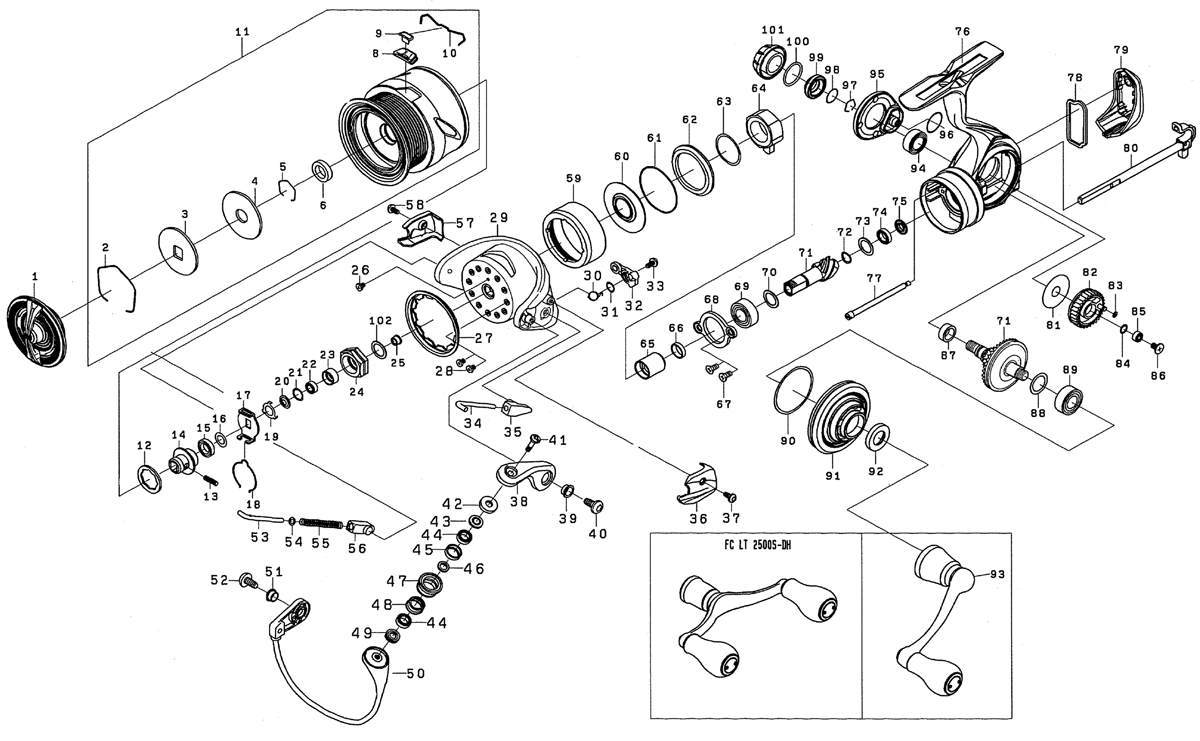

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139765 16.50
2 DRAG RINGS 185228 2.20
3 DRAG DISK W 142165 2.20
4 DRAG W (1 piece) 144226 6.60
5 SPOOL COLLAR RING 185016 2.20
6 SPOOL BALL BEARING 10E367 15.40
8 LINE STOPPER PLATE 160A54 2.20
9 LINE STOPPER 177080 2.20
10 LINE STOPPER SPRING 133996 2.20
11 SPOOL (2-10) 128E12 133.10
12 SPOOL METAL W 190A35 1.10
13 SPOOL METAL SC 10AA03 2.20
14 SPOOL METAL 132133 9.90
15 SPOOL METAL BALL BEARING 10E041 8.80
16 SPOOL W 190A34 1.10
17 CLICK HOLDER 116819 2.20
18 CLICK LEAF SP 133857 2.20
19 ROTOR NUT PLATE 160455 2.20
20 ROTOR NUT PACKING 185235 2.20
21 ROTOR NUT BEARING W 190429 1.10
22 ROTOR NUT BALL BEARING 10E351 15.40
23 ROTOR NUT BEARING COLLAR 110B27 4.40
24 ROTOR NUT 140328 8.80
25 ROTOR NUT COLLAR 110A54 3.30
26 ROTOR NUT SC 10A748 2.20
27 ROTOR COVER 162209 3.30
28 ROTOR COVER SC 10A748 2.20
29 ROTOR *Cannot be ordered 188B35 44.00
30 KICK LEVER SP 133966 2.20
31 KICK LEVER W 190057 1.10
32 KICK LEVER 111174 8.80
33 KICK LEVER SC 10A870 2.20
34 ARM LEVER SHAFT 122166 3.30
35 ARM LEVER SHAFT HOLDER 110118 2.20
36 ARM LEVER COVER 108A50 7.70
37 COVER SC 10A082 2.20
38 ARM LEVER 101464 15.40
39 ARM LEVER SC COLLAR 110123 2.20
40 ARM LEVER SC 10A081 2.20
41 ROLLER SC 187088 3.30
42 ROLLER COLLAR (A) 110A47 2.20
43 ROLLER MAG. COLLAR (A) *Cannot be ordered 191072 12.10
44 ROLLER BALL BEARING 10E400 15.40
45 ROLLER COLLAR (B) 191069 3.30
46 ROLLER COLLAR (C) 110119 2.20
47 LINE ROLLER *Cannot be ordered 179151 8.80
48 ROLLER COLLAR (D) 191068 4.40
49 ROLLER MAG COLLAR (B) *Cannot be ordered 191071 12.10
50 BAIL *Cannot be ordered 164918 60.50
51 BAIL HOLDER SC COLLAR 110123 2.20
52 BAIL HOLDER SC 10A081 2.20
53 BAIL SHAFT 122127 3.30
54 BAIL SHAFT W 190773 1.10
55 BAIL SHAFT SP 133A63 2.20
56 BAIL SHAFT SP HOLDER 110623 2.20
57 BAIL HOLDER COVER 108A51 7.70
58 BALE HOLDER COVER SC 10A082 2.20
59 MAG SHIELD CAP *Cannot be ordered 108A78 8.80
60 MAG SHIELD PLATE *Cannot be ordered 114144 23.10
61 MAG SHIELD PLATE O-RING 10J181 1.10
62 MAG SHIELD PLATE COLLAR 110B16 2.20
63 ONE-WAY CLUTCH W 190A44 1.10
64 ONE-WAY CLUTCH *Cannot be ordered 114149 26.40
65 CLUTCH RING *Cannot be ordered 110A59 7.70
66 CLUTCH RING COLLAR 110A45 2.20
67 PINION BEARING PLATE SC 10A778 2.20
68 PINION BEARING PLATE 182286 2.20
69 PINION BALL BEARING (A) 10E385 8.80
70 PINION BEARING (A) W 190137 1.10
71 PINION + DRIVE GEAR SET *Cannot be ordered 138B47 77.00
72 PINION BEARING (B) SP・W 190A79 1.10
73 PINION BEARING (B) W 193014 1.10
74 PINION BALL BEARING (B) 10E209 8.80
75 PINION COLLAR *Cannot be ordered 110A42 3.30
76 BODY *Cannot be ordered 166B69 44.00
77 REAR CAP SC 10AB05 6.60
78 REAR CAP PACKING 185259 2.20
79 REAR CAP *Cannot be ordered 116822 8.80
80 MAIN SHAFT *Cannot be ordered 171591 36.30
81 OSCILLATING GEAR W 190A47 1.10
82 OSCILLATING GEAR O-RING *Cannot be ordered 106160 9.90
83 OSCILLATING GEAR O-RING 10J078 1.10
84 OSCILLATING GEAR BEARING W 190854 1.10
85 OSCILLATING GEAR BALL BEARING 10E401 15.40
86 OSCILLATING GEAR SC 10A779 2.20
87 DRIVE GEAR BEARINGS 185231 2.20
88 DRIVE BEARING (A)W 190A90 1.10
89 DRIVE BALL BEARING (A) 10E381 8.80
90 ENGINE PLATE O-RING 10J162 1.10
91 ENGINE PLATE *Cannot be ordered 168B96 36.30
92 HANDLE PACKING 185189 3.30
93 HANDLE 1H2C12 91.30
94 DRIVE BALL BEARING (B) 10E381 8.80
95 SET PLATE *Cannot be ordered 137294 9.90
96 SET PLATE O-RING 10J120 2.20
97 DRIVE BEARING (B) RING 185116 2.20
98 DRIVE BEARING (B) O-RING 10J101 1.10
99 DRIVE BEARING COVER *Cannot be ordered 168B95 12.10
100 HANDLE CAP O-RING 10J076 1.10
101 HANDLE CAP 151225 6.60
102 ROTOR NUT W 190411 1.10
200 HANDLE KNOB SP-W 190983 1.10
201 HANDLE KNOB W 190196 1.10
202 HANDLE KNOB BALL BEARING 10E224 8.80
203 HANDLE KNOB 1H1719 19.80
204 HANDLE KNOB BALL BEARING 10E224 8.80
205 HANDLE KNOB SC 10A333 2.20
206 HANDLE KNOB CAP (WITH O-RING) 116777 15.40
207 HANDLE KNOB O-RING 10J083 1.10
