[DAIWA] Genuine Spare Parts for 20 月下美人 GEKKABIJIN X LT1000S-P Product code: 00060300 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 20 月下美人 GEKKABIJIN X LT1000S-P Product code: 00060300 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$27.72 [Regular Price: US$1.10 - US$46.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

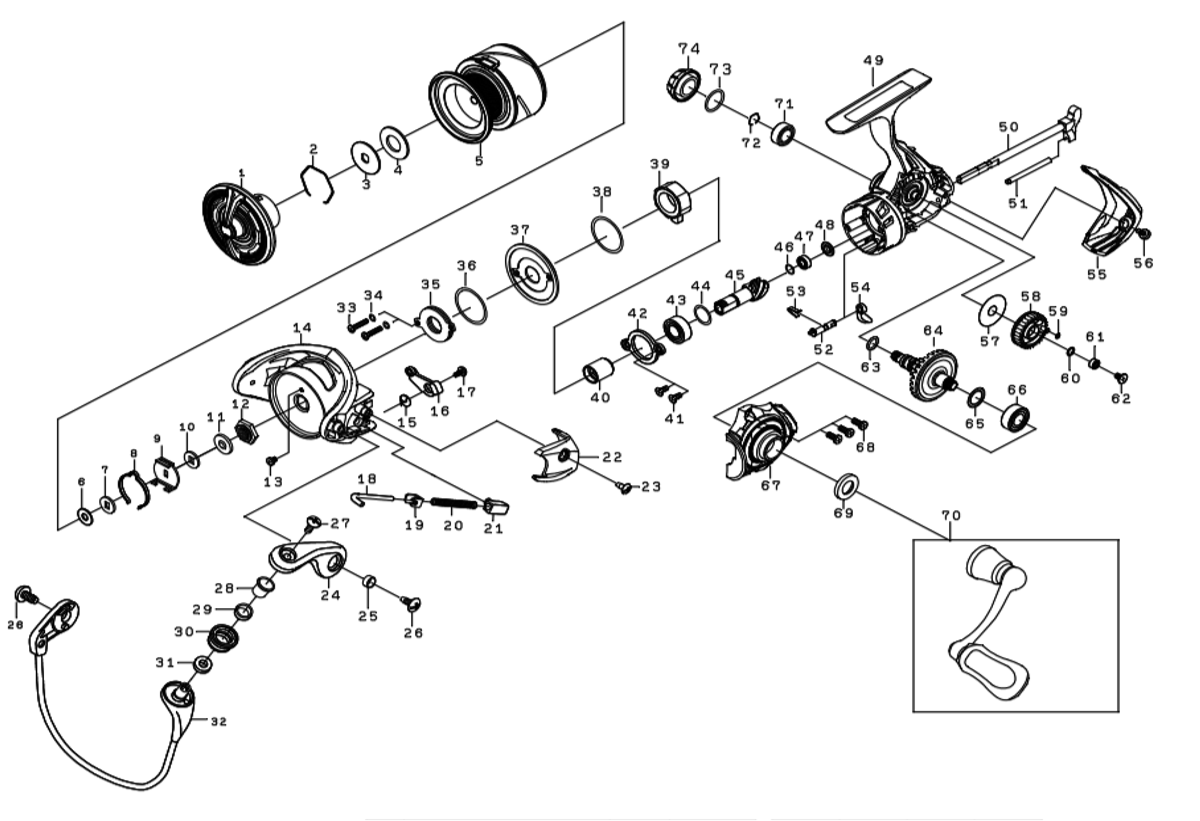

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139760 12.10
2 DRAG RINGS 185237 2.20
3 DRAG DISK W 142179 2.20
4 DRAG W (1 piece) 144226 6.60
5 SPOOL (2-5) 128D94 46.20
6 SPOOL W (A) 190A49 1.10
7 SPOOL W (B) 190602 1.10
8 CLICK LEAF SP 133857 2.20
9 CLICK HOLDER 116819 2.20
10 CLICK HOLDER W 190A50 1.10
11 ROTOR NUT PACKING 185203 3.30
12 ROTOR NUT 140333 3.30
13 ROTOR NUT SC 10A748 2.20
14 ROTOR 188A70 8.80
15 KICK LEVER SP 133858 2.20
16 KICK LEVER 111153 3.30
17 KICK LEVER SC 10A870 2.20
18 ARM LEVER SHAFT 122160 2.20
19 ARM LEVER SHAFT PLATE 160716 3.30
20 ARM LEVER SP 133859 2.20
21 ARM LEVER SP HOLDER 110056 2.20
22 ARM LEVER SP COVER 108109 3.30
23 ARM LEVER SP COVER SC 10A652 2.20
24 ARM LEVER 101442 3.30
25 ARM LEVER SC COLLAR 110055 2.20
26 BAIL SC 10A651 2.20
27 ROLLER SC 152124 2.20
28 ROLLER COLLAR (A) 191030 2.20
29 ROLLER COLLAR (B) 191029 2.20
30 LINE ROLLER 179147 7.70
31 ROLLER COLLAR (C) 191065 2.20
32 BAIL 164852 23.10
33 MAG SHIELD PLATE SC 10A741 2.20
34 PLATE SC-W 190621 1.10
35 MAG SHIELD PLATE *Cannot be ordered 114122 23.10
36 MAG SHIELD PLATE O-RING 10J143 1.10
37 MAG SHIELD CAP *Cannot be ordered 108132 3.30
38 MAGSHIELD CAP W 190A44 1.10
39 ONE-WAY CLUTCH *Cannot be ordered 114119 26.40
40 CLUTCH RING *Cannot be ordered 110A62 6.60
41 PINION BEARING PLATE SC 10A059 2.20
42 PINION BEARING PLATE 182269 2.20
43 PINION BALL BEARING (A) 10E210 8.80
44 PINION BEARING (A) W 190137 1.10
45 PINION *Cannot be ordered 154686 8.80
46 PINION BALL BEARING (B) W 190014 1.10
47 PINION BALL BEARING (B) 10E337 8.80
48 PINION BALL BEARING (B) COLLAR 110A10 3.30
49 BODY 166B63 16.50
50 MAIN SHAFT *Cannot be ordered 171551 8.80
51 OSCILLATING POST 155561 2.20
52 STOPPER CAM 194186 2.20
53 STOPPER CAM SP 133886 2.20
54 STOPPER LEVER 196408 2.20
55 REAR CAP 116821 3.30
56 REAR CAP SC 10A652 2.20
57 OSCILLATING GEAR W 190977 1.10
58 OSCILLATING GEAR O-RING *Cannot be ordered 106164 6.60
59 OSCILLATING GEAR O-RING 10J113 1.10
60 OSCILLATING GEAR BEARING W 190854 1.10
61 OSCILLATING GEAR BALL BEARING 10E295 8.80
62 OSCILLATING GEAR SC 10A058 2.20
63 DRIVE GEAR O-RING 10J071 1.10
64 DRIVE GEAR *Cannot be ordered 138A62 12.10
65 DRIVE W 190137 1.10
66 DRIVE BALL BEARING (A) 10E210 8.80
67 BODY COVER 168B90 15.40
68 BODY COVER SC 123164 2.20
69 HANDLE PACKING 185206 3.30
70 HANDLE 1H2C01 42.90
71 DRIVE BALL BEARING (B) 10E381 8.80
72 DRIVE BALL BEARING (B) RING 185116 2.20
73 HANDLE CAP O-RING 185077 2.20
74 HANDLE CAP 151210 4.40
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR 110411 2.20
202 HANDLE KNOB 1H1772 15.40
203 HANDLE KNOB COLLAR 110411 2.20
204 HANDLE KNOB SC 10AA35 3.30
