[DAIWA] Genuine Spare Parts for 21 LUVIAS AIRITY FC LT2500S-XH-QD Product code: 00060344 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 21 LUVIAS AIRITY FC LT2500S-XH-QD Product code: 00060344 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$97.79 [Regular Price: US$1.10 - US$139.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.7 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4954

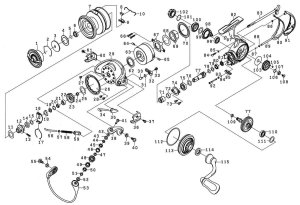

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139819 46.20
2 DRAG RINGS 185227 2.20
3 DRAG DISK W 142170 2.20
4 DRAG W (1 piece) 144226 6.60
5 SPOOL BEARING RING 185236 2.20
6 SPOOL BALL BEARING 10E367 15.40
7 SPOOL (2-10) 128E56 139.70
8 LINE STOPPER 177080 2.20
9 LINE STOPPER PLATE 160A54 2.20
10 LINE STOPPER SPRING 133996 2.20
11 SPOOL W 190A35 1.10
12 SPOOL METAL 132133 9.90
13 SPOOL METAL SC 10AA03 2.20
14 SPOOL METAL COLLAR 110925 2.20
15 SPOOL METAL W 190A34 1.10
16 CLICK HOLDER 116819 2.20
17 CLICK LEAF SP 133857 2.20
18 ROTOR NUT PLATE 160455 2.20
19 ROTOR NUT PACKING 185235 2.20
20 ROTOR NUT BEARING W 190429 1.10
21 ROTOR NUT BALL BEARING 10E378 15.40
22 ROTOR NUT BEARING COLLAR 110A48 4.40
23 ROTOR NUT 140328 8.80
24 ROTOR NUT COLLAR 110A54 3.30
25 ROTOR NUT W 190625 1.10
26 ROTOR COVER 162209 3.30
27 ROTOR NUT SC 10A748 2.20
28 ROTOR COVER SC 10A748 2.20
29 ROTOR *Cannot be ordered 188A89 36.30
30 KICK LEVER SP 133966 2.20
31 KICK LEVER W 190057 1.10
32 KICK LEVER 111174 8.80
33 KICK LEVER SC 10A870 2.20
34 ARM LEVER SHAFT 122166 3.30
35 ARM LEVER SHAFT HOLDER 110118 2.20
36 ARM LEVER COVER 108A50 7.70
37 COVER SC 10A082 2.20
38 ARM LEVER 101448 15.40
39 ARM LEVER SC COLLAR 110123 2.20
40 ARM LEVER SC 10A081 2.20
41 ROLLER SC 187088 3.30
42 ROLLER W 190562 1.10
43 ROLLER PACKING 185229 1.10
44 ROLLER COLLAR (A) 110A26 2.20
45 ROLLER BALL BEARING 10E400 15.40
46 ROLLER COLLAR (B) 191070 3.30
47 ROLLER COLLAR (C) 110119 2.20
48 LINE ROLLER *Cannot be ordered 179151 8.80
49 ROLLER COLLAR (B) 191070 3.30
50 ROLLER BALL BEARING 10E400 15.40
51 ROLLER COLLAR (A) 110A26 2.20
52 ROLLER PACKING 185229 1.10
53 BAIL *Cannot be ordered 164918 60.50
54 BAIL HOLDER SC COLLAR 110123 2.20
55 BAIL HOLDER SC 10A081 2.20
56 BALE SHAFT 122127 3.30
57 BAIL SHAFT W 190773 1.10
58 BAIL SHAFT SP 133A63 2.20
59 BAIL SHAFT SP HOLDER 110623 2.20
60 BAIL HOLDER COVER 108A51 7.70
61 BAIL HOLDER COVER SC 10A082 2.20
62 STOPPER LEVER PACKING (A) 185234 2.20
63 STOPPER LEVER *Cannot be ordered 196436 12.10
64 STOPPER LEVER SC 10AA56 2.20
65 STOPPER LEVER SC 10AA56 2.20
66 MAGSHIELD PLATE SC 10AB26 2.20
67 MAG SHIELD PLATE *Cannot be ordered 114125 23.10
68 ONE-WAY CLUTCH W 190945 1.10
69 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
70 STOPPER LEVER PACKING (B) 185232 2.20
71 CLUTCH RING *Cannot be ordered 110A38 8.80
72 CLUTCH RING COLLAR 110A45 2.20
73 PINION BEARING PLATE SC 10AB24 2.20
74 PINION BEARING PLATE 182278 2.20
75 PINION BALL BEARING (A) 10E385 8.80
76 PINION BEARING (A) W 190137 1.10
77 PINION + DRIVE GEAR SET *Cannot be ordered 138C01 77.00
78 PINION BEARING (B) SP・W 190A79 1.10
79 PINION BEARING (B) W 193014 1.10
80 PINION BALL BEARING (B) 10E258 8.80
81 PINION COLLAR *Cannot be ordered 110A42 3.30
82 BODY *Cannot be ordered 166B73 105.60
83 MAIN SHAFT *Cannot be ordered 171539 36.30
84 REAR CAP SC (B) 10AB25 2.20
85 REAR CAP SC・W(B) 190669 1.10
86 REAR CAP W 190A40 1.10
87 OSCILLATING POST O-RING 10J068 1.10
88 OSCILLATING POST W 190A41 1.10
89 OSCILLATING POST O-RING 155558 2.20
90 REAR CAP PACKING 185239 4.40
91 REAR CAP *Cannot be ordered 116753 15.40
92 REAR CAP SC (A) 10AB30 3.30
93 REAR CAP SC-W (A) 190A48 1.10
94 SC REAR CAP WITH O-RING 10J169 1.10
95 BAIL KICK COLLAR 110A41 2.20
96 DRIVE BALL BEARING (A) 10E326 15.40
97 SET PLATE O-RING 10J168 1.10
98 SET PLATE *Cannot be ordered 137306 30.80
99 DRIVE BEARING (A) W 190A46 1.10
100 DRIVE BEARING (A) COVER *Cannot be ordered 168C01 24.20
101 HANDLE CAP O-RING 10J076 1.10
102 HANDLE CAP 151211 6.60
103 OSCILLATING GEAR W 190A47 1.10
104 OSCILLATING GEAR *Cannot be ordered 106160 9.90
105 OSCILLATING GEAR O-RING 10J078 1.10
106 OSCILLATING GEAR BEARING W 190854 1.10
107 OSCILLATING GEAR BALL BEARING 10E401 15.40
108 OSCILLATING GEAR SC 10A876 2.20
109 DRIVE GEAR BEARING 185231 2.20
110 DRIVE BALL BEARING (B) 10E326 15.40
111 DRIVE BALL BEARING (B) W 190A68 1.10
112 BODY COVER O-RING 10J162 1.10
113 ENGINE PLATE *Cannot be ordered 168C05 48.40
114 HANDLE PACKING 185189 3.30
115 HANDLE 1H2C18 106.70
200 HANDLE KNOB SP/W 190983 1.10
201 HANDLE KNOB W 190196 1.10
202 HANDLE KNOB BALL BEARING 10E313 15.40
203 HANDLE KNOB 1H1667 24.20
204 HANDLE KNOB SC 10A333 2.20
205 HANDLE KNOB CAP 116759 6.60
